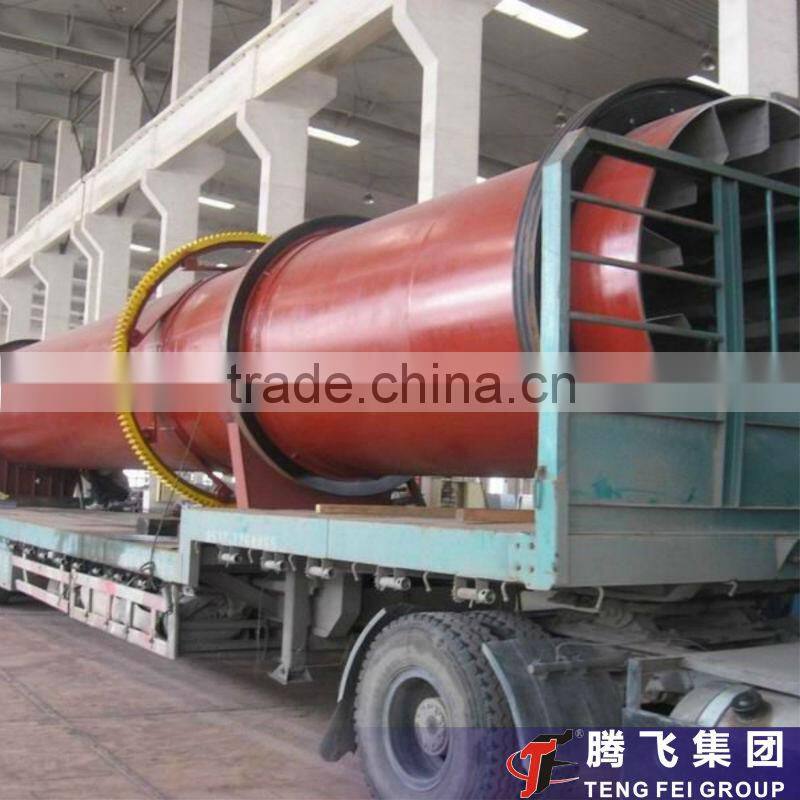

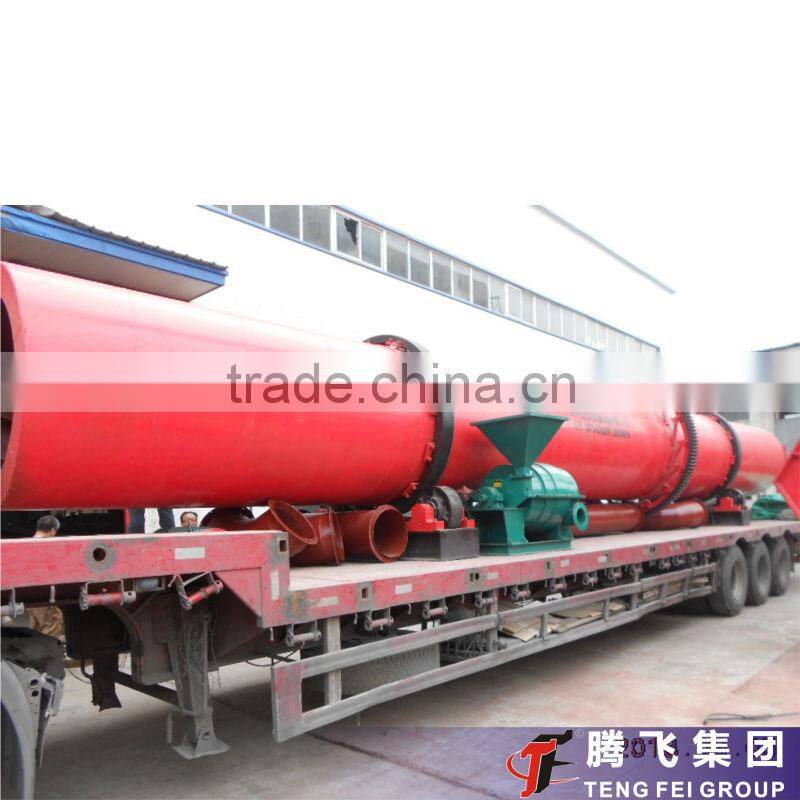

Professional Manufacturer of FD Series Clay Rotary Drum Dryer
- Qingdao; Shanghai; Lian Yungang
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | TengFei | |
| Model Number | FD1800 x 12000 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
FD Series Clay Rotary Drum Dryer :1.Low moisture content of final product
2.Easy maintenance
3. Large Capacity
4. Flexible
FD Series Clay Rotary Drum Dryer
1. Brief Introduction
- The Sand Rotary Dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry.
- The Calcium Carbonate Dryer has a better adaptability and can dry various materials with a simple and reliable operation.
2. Technical Parameters
Specification (model) | Cylinder volume (m³) | Cylinder speed (r/min) | Cylinder gradient (°C) | Motor Model | Motor Power (KW) | Decelerator Model | Overall dimensions (MM) | Weight (T) |
FD600x8000 | 2.26 | 8 | YCT200-4A | 4 | JZQ250 | 8000x2200x980 | 2.9 | |
FD800x1200 | 5.02 | 7 | 3-5 | Y132M2-6 | 4 | JZQ250 | 12000x2700x1300 | 3.5 |
FD1000×10000 | 7.85 | 6.73 | 3-5 | Y132M2-6 | 4 | JZQ400 | 10000×1876×2069 | 7.5 |
FD1200×6000 | 6.8 | 5.8 | Y132M2-6 | 5.5 | JZQ500 | 6000×2159×2475 | 7.97 | |
FD1200×8000 | 9.1 | Y132M2-6 | 5.5 | JZQ500 | 8000×2159×2475 | 8.75 | ||
FD1200×10000 | 11.31 | Y160M-6 | 7.5 | JZQ500 | 10000×2159×2475 | 9.25 | ||
FD1200×12000 | 13.75 | Y160M-6 | 7.5 | JZQ500 | 12000×2159S×2475 | 10.3 | ||
FD1500×8000 | 14.14 | 4.8 | Y160L-6 | 11 | JZQ650 | 8000×2655×2859 | 14.74 | |
FD1500×10000 | Y160L-6 | 11 | JZQ650 | 10000×2655×2895 | 15.9 | |||
FD1500×12000 | 21.2 | Y180L-6 | 15 | JZQ650 | 12000×2055×2895 | 17.13 | ||
FD1500×14000 | 24.9 | Y180L-6 | 15 | JZQ650 | 14000×2655×2895 | 18.33 | ||
FD1800×10000 | 25.45 | 3-5 | 5 | Y180L-6 | 15 | JZQ650 | 10000×3060×2980 | 17.93 |
FD1800×12000 | 30.5 | Y200L-6 | 18.5 | JZQ650 | 12000×3060×2980 | 19.89 | ||
FD1800×14000 | 35.1 | Y200L-6 | 18.5 | JZQ650 | 14000×3060×2980 | 20.85 | ||
FD1800×18000 | 45.8 | Y200L-6 | 22 | JZQ650 | 18000×3060×2980 | 22.3 | ||
FD2200×12000 | 45.6 | 4.4 | Y200L-6 | 22 | JZQ750 | 12000×3620×3570 | 30.31 | |
FD2200×14000 | 53.2 | Y200L-6
| 22 | JZQ750 | 14000×3620×3570 | 32.23 | ||
FD2200×18000 | 68.4 | Y225M-6 | 30 | JZQ750 | 18000×3620×3570 | 34.15 | ||
FD2200×20000 | 70 | Y225M-6 | 30 | JZQ750 | 20000×3620×3570 | 36.07 | ||
FD2400×14000 | 63.3 | 3.85 | Y225M-6 | 30 | JZQ850 | 14000×3860×3760 | 39.9 |
3. Features
- Gas low temperature, dust removal equipment with long time
- The new type of composite feed device, easily control to the end of the moisture indicator
- High degree of automation,transmission powder is small,easy operation,stable running
- Fuel can adapt to coal,oil and gas.
4. Structure
- Heating system part uses the hot blast stove technology, sufficient heat and heat transfer effect is good,structure simple
- Heat exchange system is the drying cylinder, cylinder body feed plate staggered into spiral, repeatedly kick up materials, high heat efficiency
- Ventilation dust removal system is dust collecting equipment, after drying,the flyash under the nagative pressure condition, easy being taken away by the airflow, prevent the flyash be absort and discharged into the atmosphere by the induced draught system caused resource waste and environmental pollution,unified by the filter dust collector.
