Professional Manufacturer Of Rotary Dryer
- 100 Set / Sets per Month
- Qingdao Tianjin Ningbo shanghai etc.
- T/T Credit Card
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | TengFei | Model Number: | FD2200 x 12000 | Voltage: | 380v,50Hz or as required |
Power(W): | 22 kw | Dimension(L*W*H): | 12000 x 3620 x 3570 mm | Weight: | 30.5 t |
Certification: | ISO, CE | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Rotary Dryer:1.Low moisture content of final product
2.Easy maintenance
3. Large Capacity
4. Flexible operation

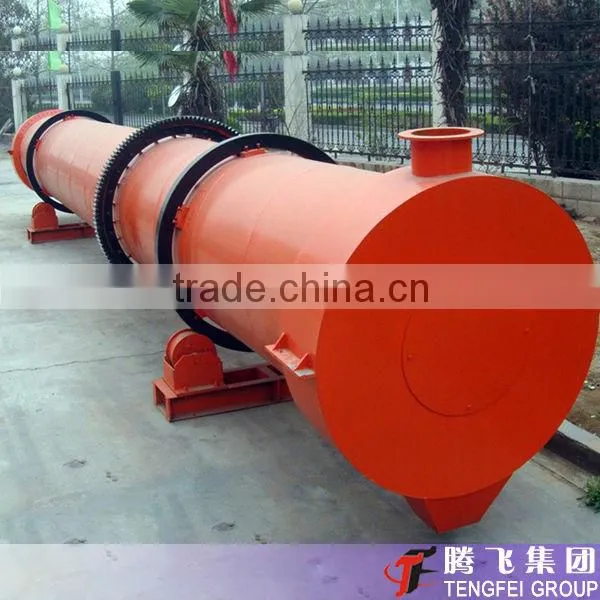

Rotary Dryer
1. Brief Introduction
- The Rotary Dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry.
- The Calcium Carbonate Dryer has a better adaptability and can dry various materials with a simple and reliable operation.
2. Technical Parameters
Specification (model) | Cylinder volume (m³) | Cylinder speed (r/min) | Cylinder gradient (°C) | Motor Model | Motor Power (KW) | Decelerator Model | Overall dimensions (MM) | Weight (T) |
FD600x8000 | 2.26 | 8 | YCT200-4A | 4 | JZQ250 | 8000x2200x980 | 2.9 | |
FD800x1200 | 5.02 | 7 | 3-5 | Y132M2-6 | 4 | JZQ250 | 12000x2700x1300 | 3.5 |
FD1000×10000 | 7.85 | 6.73 | 3-5 | Y132M2-6 | 4 | JZQ400 | 10000×1876×2069 | 7.5 |
FD1200×6000 | 6.8 | 5.8 | Y132M2-6 | 5.5 | JZQ500 | 6000×2159×2475 | 7.97 | |
FD1200×8000 | 9.1 | Y132M2-6 | 5.5 | JZQ500 | 8000×2159×2475 | 8.75 | ||
FD1200×10000 | 11.31 | Y160M-6 | 7.5 | JZQ500 | 10000×2159×2475 | 9.25 | ||
FD1200×12000 | 13.75 | Y160M-6 | 7.5 | JZQ500 | 12000×2159S×2475 | 10.3 | ||
FD1500×8000 | 14.14 | 4.8 | Y160L-6 | 11 | JZQ650 | 8000×2655×2859 | 14.74 | |
FD1500×10000 | Y160L-6 | 11 | JZQ650 | 10000×2655×2895 | 15.9 | |||
FD1500×12000 | 21.2 | Y180L-6 | 15 | JZQ650 | 12000×2055×2895 | 17.13 | ||
FD1500×14000 | 24.9 | Y180L-6 | 15 | JZQ650 | 14000×2655×2895 | 18.33 | ||
FD1800×10000 | 25.45 | 3-5 | 5 | Y180L-6 | 15 | JZQ650 | 10000×3060×2980 | 17.93 |
FD1800×12000 | 30.5 | Y200L-6 | 18.5 | JZQ650 | 12000×3060×2980 | 19.89 | ||
FD1800×14000 | 35.1 | Y200L-6 | 18.5 | JZQ650 | 14000×3060×2980 | 20.85 | ||
FD1800×18000 | 45.8 | Y200L-6 | 22 | JZQ650 | 18000×3060×2980 | 22.3 | ||
FD2200×12000 | 45.6 | 4.4 | Y200L-6 | 22 | JZQ750 | 12000×3620×3570 | 30.31 | |
FD2200×14000 | 53.2 | Y200L-6
| 22 | JZQ750 | 14000×3620×3570 | 32.23 | ||
FD2200×18000 | 68.4 | Y225M-6 | 30 | JZQ750 | 18000×3620×3570 | 34.15 | ||
FD2200×20000 | 70 | Y225M-6 | 30 | JZQ750 | 20000×3620×3570 | 36.07 | ||
FD2400×14000 | 63.3 | 3.85 | Y225M-6 | 30 | JZQ850 | 14000×3860×3760 | 39.9 |
3. Features of Rotary Dryer
- Gas low temperature, dust removal equipment with long time
- The new type of composite feed device, easily control to the end of the moisture indicator
- High degree of automation,transmission powder is small,easy operation,stable running
- Fuel can adapt to coal,oil and gas.
4. Structure of Rotary Dryer
- Heating system part uses the hot blast stove technology, sufficient heat and heat transfer effect is good,structure simple
- Heat exchange system is the drying cylinder, cylinder body feed plate staggered into spiral, repeatedly kick up materials, high heat efficiency
- Ventilation dust removal system is dust collecting equipment, after drying,the flyash under the nagative pressure condition, easy being taken away by the airflow, prevent the flyash be absort and discharged into the atmosphere by the induced draught system caused resource waste and environmental pollution,unified by the filter dust collector.
5. Working Site
Contact Us
- Henan Teng Fei Machine Manufacturing Co., Ltd.
- Contact nameJohn Zhang
- Phone086-371-67103656
- AddressXintian Avenue, Xushui Town, Zhongyuan District, Zhengzhou City, Henan Province. China Zhengzhou,Henan
