Specifications
Small Ball Mill for Sale:1. Wet overflow ball mill
2. Low energy consumption
3. Whole base support, high quality

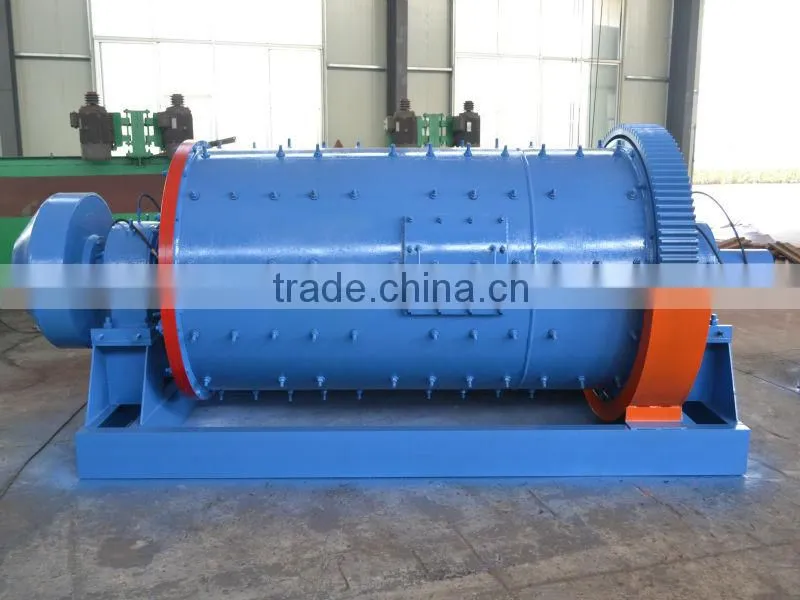

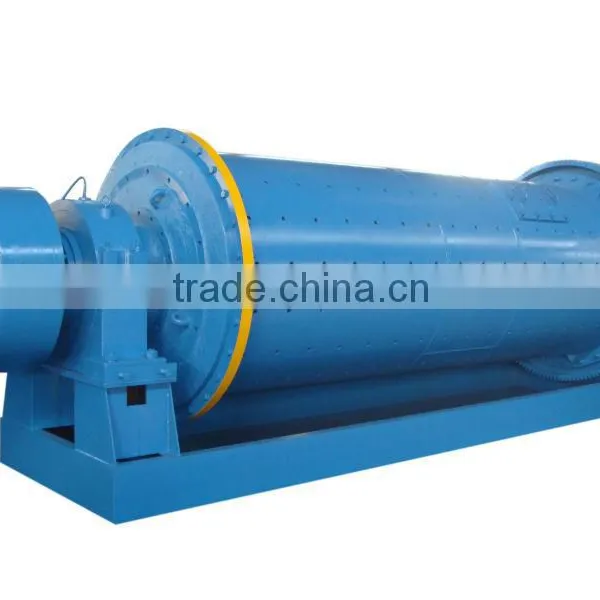

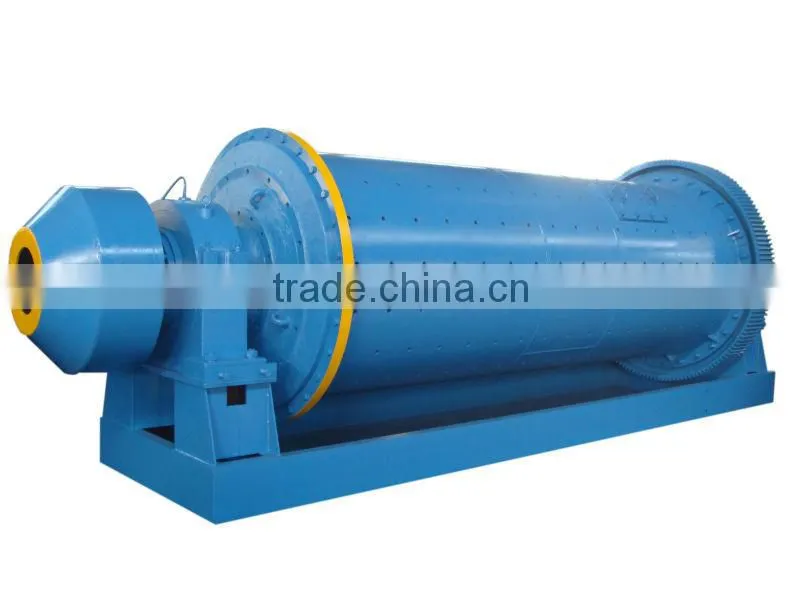

Small Ball Mill for Sale
| Type | Mineral Ore Powder Making |
| Input Size | 20 mm |
| Discharge Size | 0.075-0.89 mm |
| Proceed Materials | Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, copper ore, gold ore,quartz, active carbon, carbon black, ceramic, coal, ect. |
| Application | Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics. |
Working Principle:
The Small Ball Mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth.Then the whole grinding process is ended.
Small Ball Mill Parameters:
Model |
Speed of bucket(r/min) |
Weight of ball (t) |
Size of feed opening (mm) |
Size of outputting feed(mm) |
Production( t/h) |
Power( KW) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
Φ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
Φ2200×6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
