Help CenterChina Best Quality Ball Mill Classifying Production Line
Related Products
-
1500*5700 Engrey Saving Ball Mill MachineUS$ 5,258 - 98,300MOQ: 1 Set -
Professional Cement Ball Mill for Construction MaterialUS$ 5,258 - 98,300MOQ: 1 Set
-
Iron Ore Wet Grinding Ball MillUS$ 5,258 - 98,300MOQ: 1 Set
-
Cylindrical Energy Saving Ball Mill Grinding MachineUS$ 5,258 - 98,300MOQ: 1 Set
-
Small Ball Mill for SaleUS$ 5,258 - 98,300MOQ: 1 Set
Specifications
China Ball Mill1. Simple structure
2. Low operating cost
3. Low power consumption
4. Special design

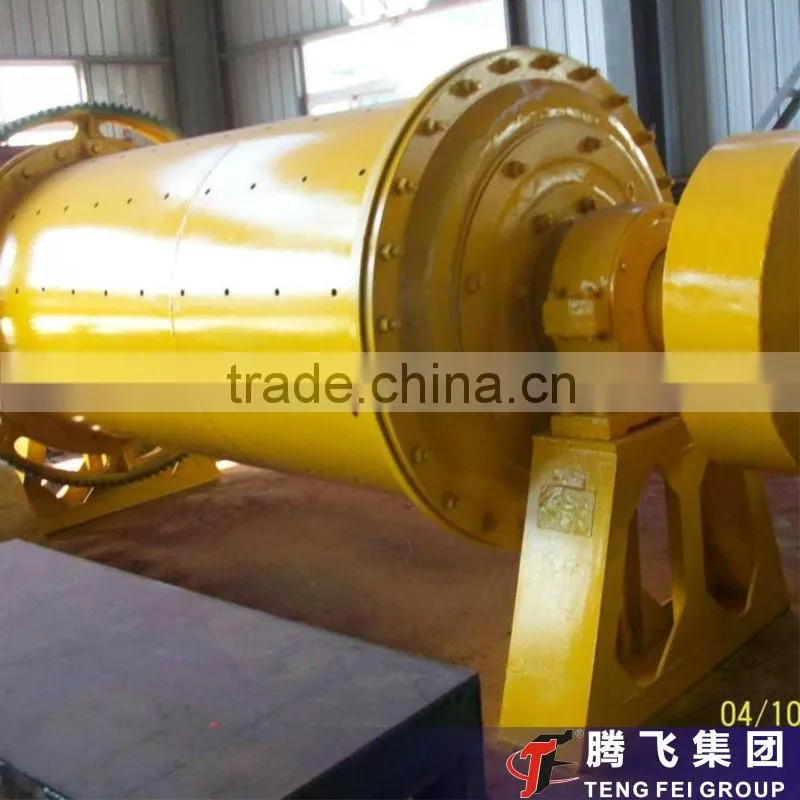

China Ball Mill
- Ball Mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type.
- There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Work Principle

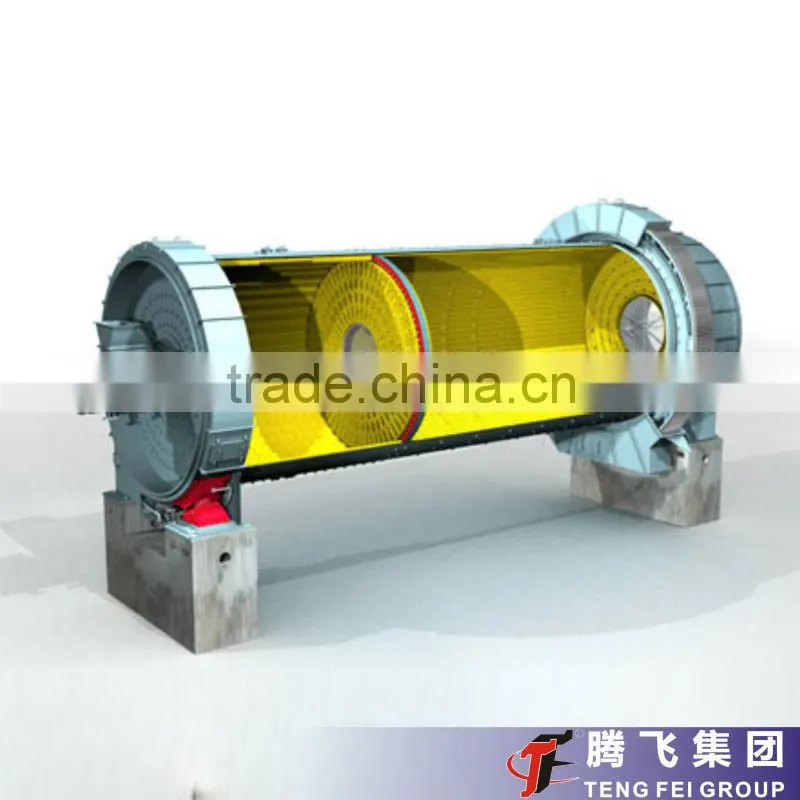

- Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly.
- There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
- The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical parameters
Model |
Speed of bucket (r/min) |
Weight of ball (t) |
Size of feed opening (mm) |
Size of outputting feed (mm) |
Production (t/h) |
Power (Kw) |
Weight (t) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
48.5 |
Φ2200×6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
52.8 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
56 |

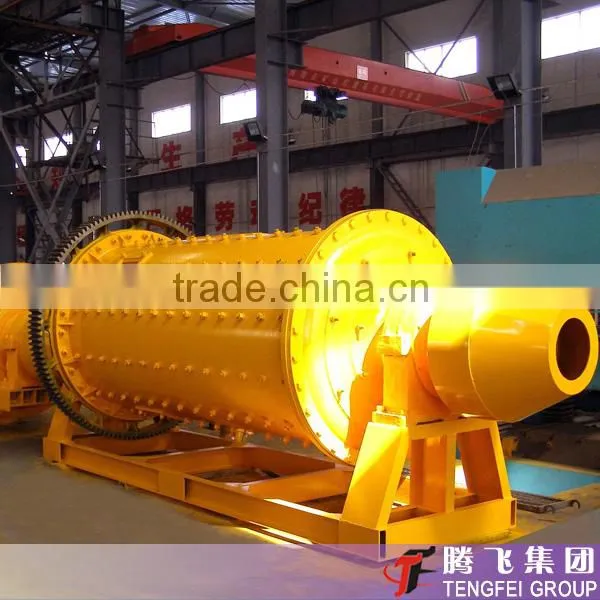

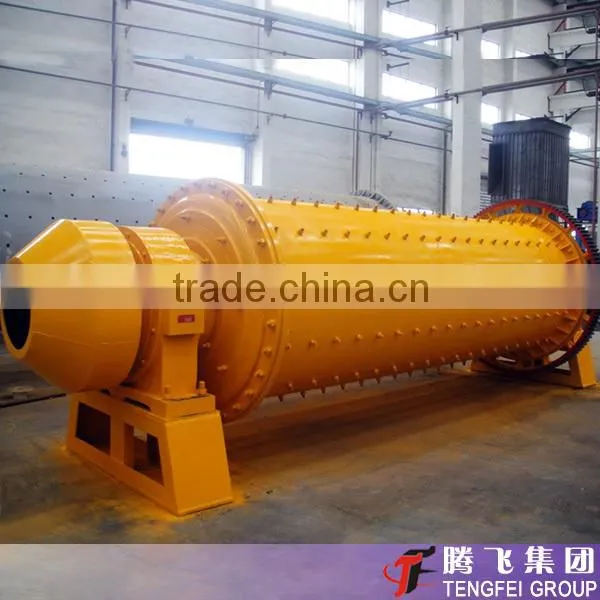

Related pictures
OUR AIM :
Begin from customer demand ; End with customer satisfaction
High quality of after-sales service symbolizes our brand and our ability. We pursue not only the good quality of our products, but also the good after-sales services. Your satisfaction with us is our final purpose.
