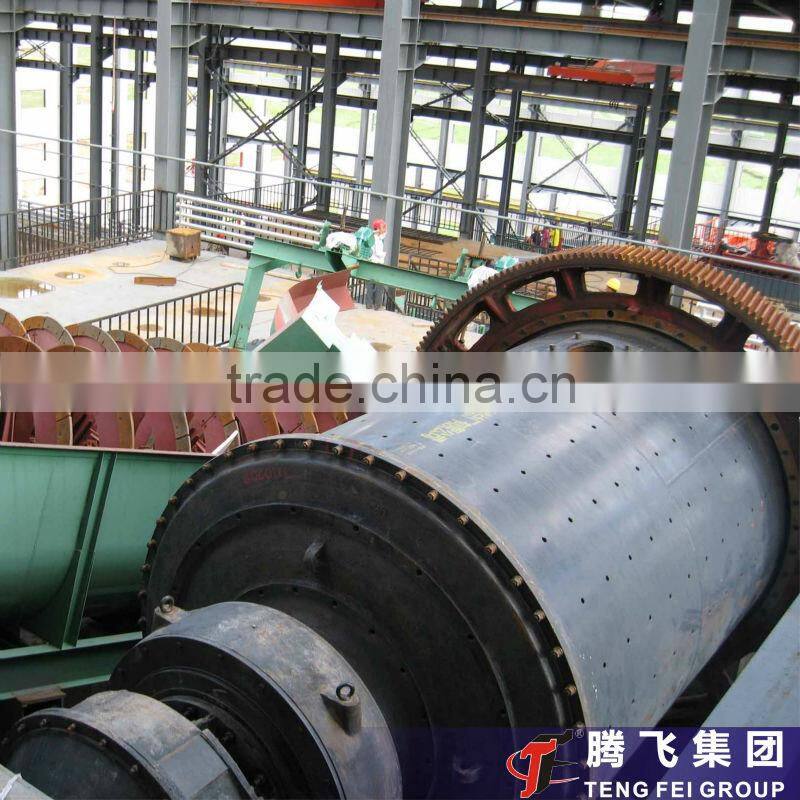

2015 Ore benefication plant and secondary grinding stage small ball mill for sale
1. Ball Mill Introduction
Ball mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control.
2. Ball Mill Application
Ball mill is the key equipment for smash the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
3.Technical Parameters:
Model |
Speed of bucket (r/min) |
Weight of ball (t) |
Size of feed opening (mm) |
Size of outputting feed (mm) |
Production (t/h) |
Power (Kw) |
Weight (t) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
48.5 |
Φ2200×6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
52.8 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
56 |
4.Principle
- The Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
- The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
- The ground materials are discharged through the discharging board thus the grinding process is finished
5 Features of the Feldspar small ball mill for sale
- Easy installation, long-time continuous operation and Longer service life.
- High efficiency of grinding.
- Large application range, simple structure and convenient maintenance.
- Barrel lining and grinding media can apply various abrasive materials.
- Machine body base support
6.Details
Henan Teng Fei Machine Manufacturing Co., Ltd. is a professional mining machine manufacturer with decades of years' experience. Our main product are grinding mills, Crushers,Dryer,Ball Mill, Sand making&washing machines, vibrating screens, etc.
7.Delivery:
- How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered. If you want see our quality certifications and all kinds of testing report, please just ask us.
- Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.
- How about price?
Yes, we are factory and be able to give you lowest price below market, and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
- Why should we choose you?
Chose happens because of quality, then price, we can give you both. Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust
After-sales Service:
- Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
- Train the users to command the equipment and guide them for safe production.
- Explain the routine maintenance of equipment carefully and remove common faults.
- We are responsible for all the repairs that caused by our quality problems within one year's warranty.
- The foreign customers who have any questions on after-sales service can directly send email to our designated mailbox. We will answer your questions in 12 hours and solve various problems for the customers in time.
- For some counties whose visas are difficult obtain, customers can also send their technicians to our company to receive free guidance and training.
- Accept the suggestions for improvement put forward by customers in an earnest way. In accordance with changes of the market, provide the products and services to meet the users' needs and create values for them.
- The customers whose products have passed its warranty date are entitled to enjoy our after-sales service for life.
