Help CenterEnergy-saving Ball Mill Manufacturer
Related Products
Specifications
Energy-saving Ball Mill:1. Simple structure
2. Low operating cost
3. Low power consumption
4. Special design

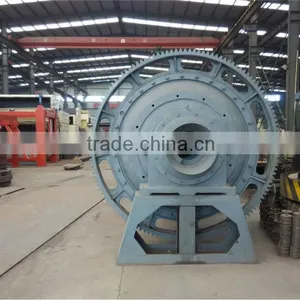

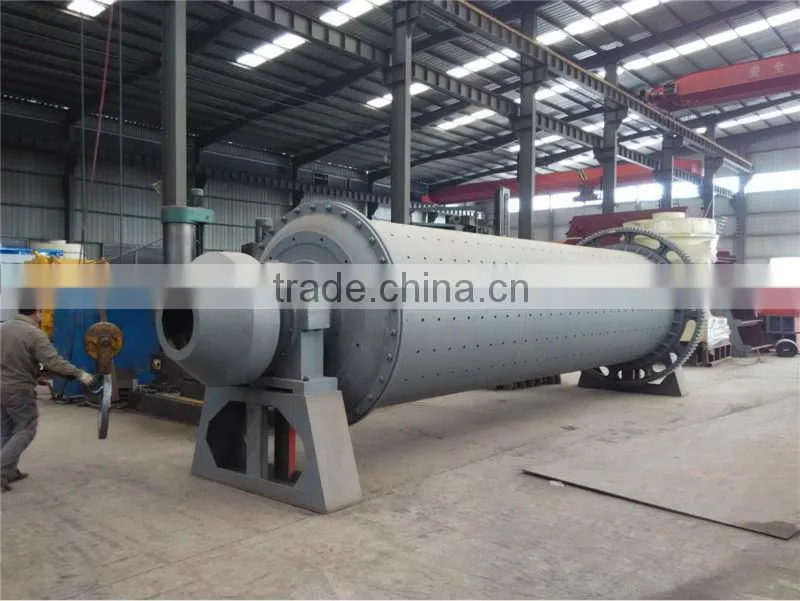

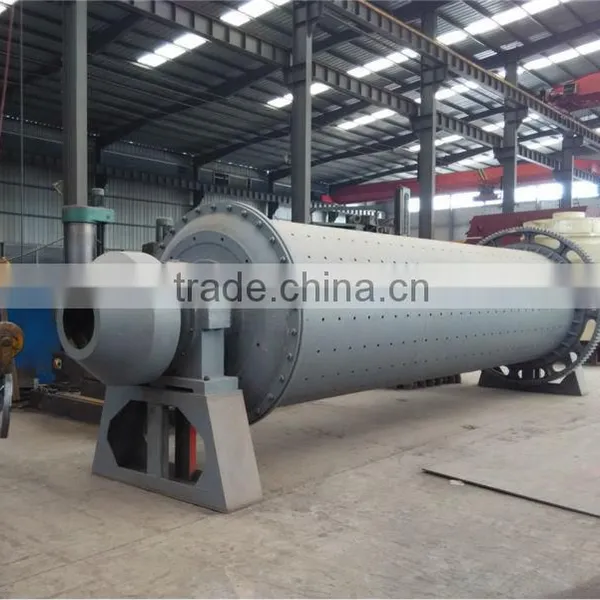

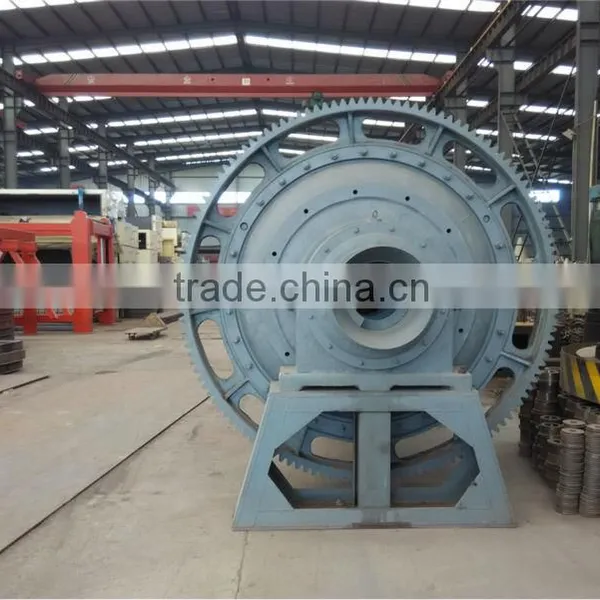

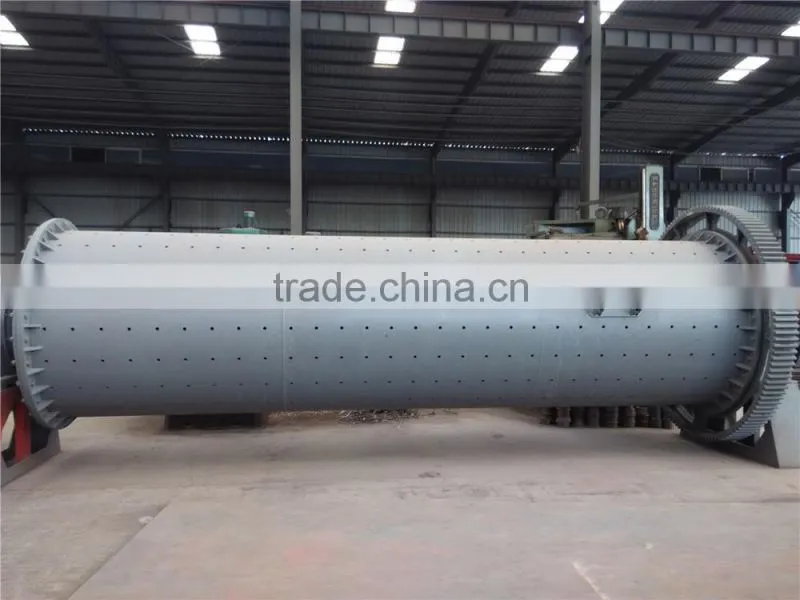

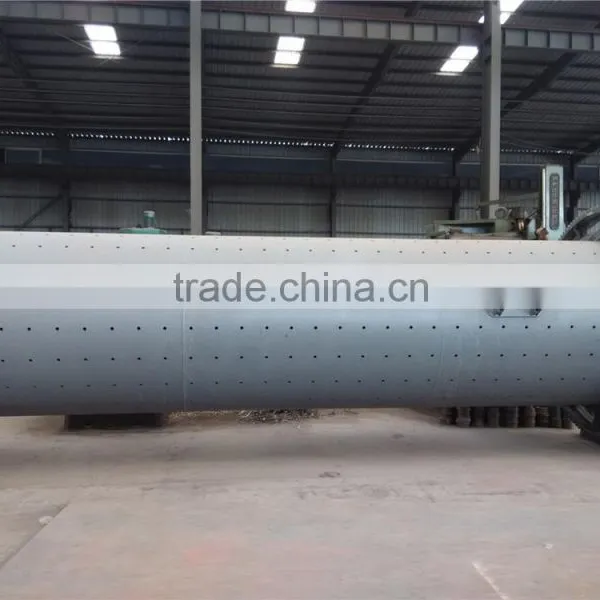

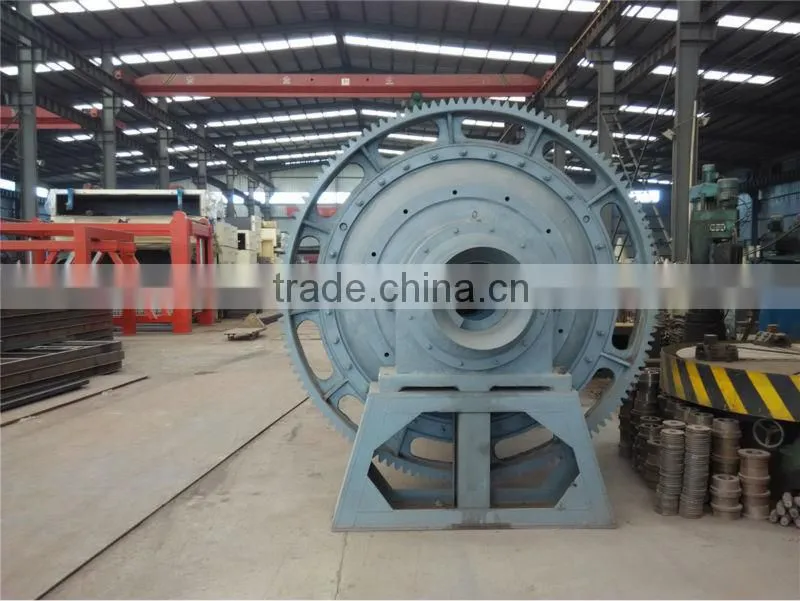

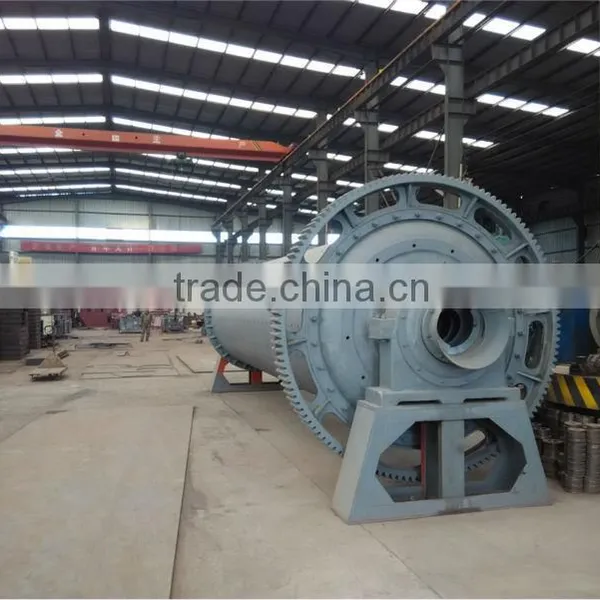

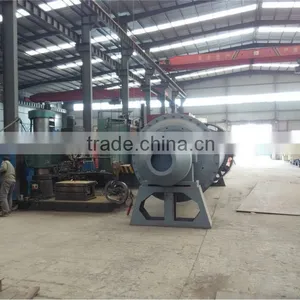

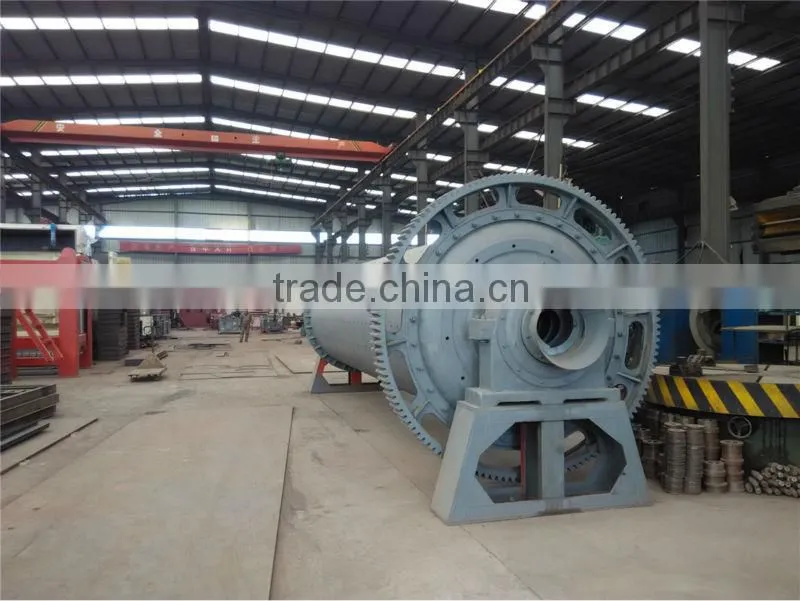

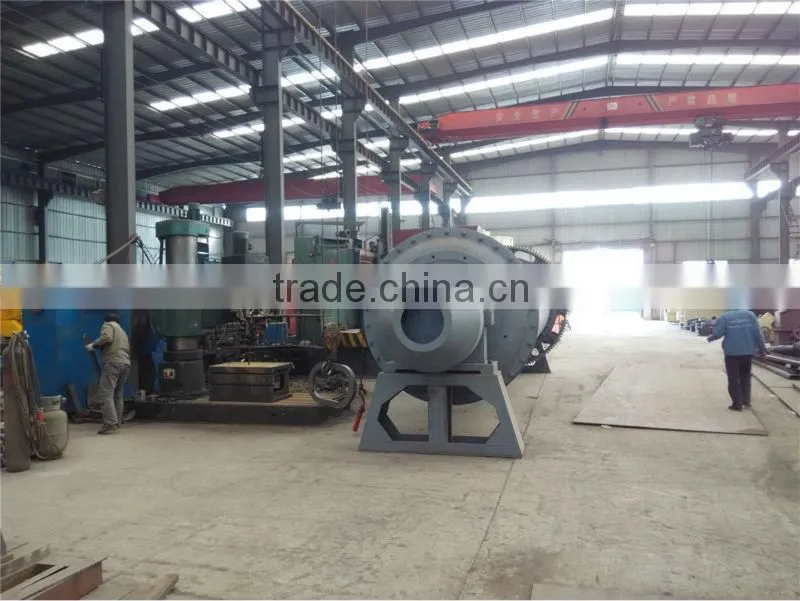

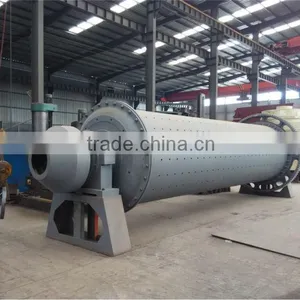

Energy-saving Ball Mill
Henan Teng Fei Machine Manufacturing Co., Ltd. is a professional machine mining manufacturer with decades of years' experience. Our mainproduct are Grinding Mill, Raymond Mill, Superfine Grinder, Crushers,Dryer,Ball Mill, Sand making&washing machines, vibrating screens, etc.
- Ball Mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type.
-
There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Technical parameters of Energy-saving Ball Mill
Model
Speed of
bucket
(r/min)
Weight of
ball
(t)
Size of feed
opening (mm)
Size of
outputting
feed (mm)
Production
(t/h)
Power
(Kw)
Weight
(t)
Φ900×1800
38
1.5
≤20
0.075-0.89
0.65-2
18.5
3.6
Φ900×3000
38
2.7
≤20
0.075-0.89
1.1-3.5
22
4.6
Φ1200×2400
32
3.8
≤25
0.075-0.6
1.5-4.8
45
12.5
Φ1200×3000
32
5
≤25
0.075-0.4
1.6-5
45
12.8
Φ1200×4500
32
7
≤25
0.075-0.4
1.6-5.8
55
13.8
Φ1500×3000
27
8
≤25
0.075-0.4
2-5
90
17
Φ1500×4500
27
14
≤25
0.075-0.4
3-6
110
21
Φ1500×5700
27
15
≤25
0.075-0.4
3.5-6
132
24.7
Φ1830×3000
24
11
≤25
0.075-0.4
4-10
180
28
Φ1830×6400
24
23
≤25
0.075-0.4
6.5-15
210
34
Φ1830×7000
24
25
≤25
0.075-0.4
7.5-17
245
36
Φ2200×5500
21
30
≤25
0.075-0.4
10-22
370
48.5
Φ2200×6500
21
30
≤25
0.075-0.4
14-26
280
52.8
Φ2200×7500
21
33
≤25
0.075-0.4
16-29
475
56
Work Principle Of Energy-saving Ball Mill Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly.
- There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
- The ground materials are discharged through the discharging board thus the grinding process is finished.
