Specifications
Copper Winding Wire And Price1. Size: 0.025mm-4.5mm
2. Thermal Class: 130-220C
3. Standard: IEC, NEMA,GB

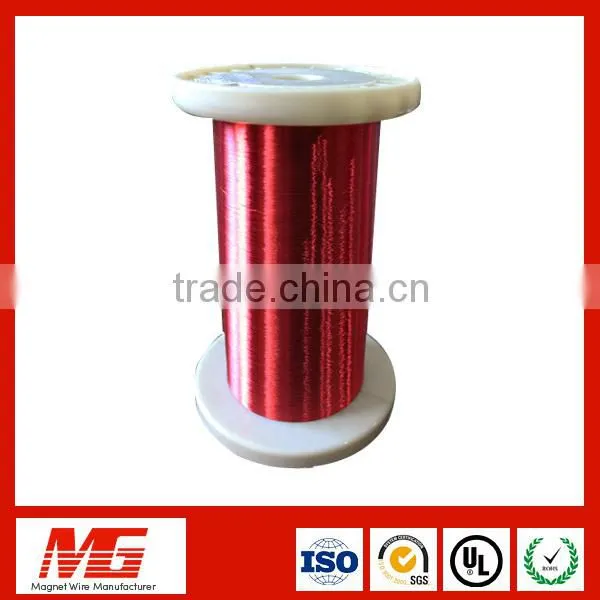

Copper Winding Wire And Price
Our Company’s annual production is about 8,000 tons.
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
we have many kinds of products ,such as enameled aluminum wire, enameled copper wire, paper covered magnet wire, fiber glass covered magnet wire and so on
We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
Gauge of enameled aluminum wire:Enameled round aluminum wire: 0.2mm-8.0mm Enameled flat aluminum wire: a: 1-6mm, b: 3-16mm
HENAN MG MAGNET WIRE.,LTD. is a professional supplier of magnet wires and electrical materials. From the company founded till now, our company has been committed to providing professional Enameled Magnet wires , winding Magnet Wires and Electrical materials for customers.
An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing enameled magnet wire and winding magnet wire market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, sureness and steadiness,providing best service,devotion and dedication".Please feel free to contact us at any time.
We will try our best to send the Copper Winding Wire And Price to your city as soon as possible. Carton and wooden box will be used as double protection to protect the product from wear and tear during transport.
1. Features of Copper Winding Wire And Price
a)High cut through
b)Excellent electricity performance
c)Excellent resistance to abrasion and solvent
d)Excellent heat shock,adherence and flexibility
2. Advantage of our product
♦ High temperature
♦ High resistance to heat shock
♦ Able to be direct weld, with no pinhole
♦ Good performace at softening breakdown
♦ Suitable for high-speed automated routing
♦ We can produce the diameter of 0.025mm-4.5mm
♦ High breakdown voltage, small dielectric loss angle
3.Reference parameter as follows
Name |
Enameled Copper Wire |
||
Type |
Q(ZY/XY)-1/200 |
||
Diameter |
0.27mm |
||
Standard |
IEC60317 |
||
Test Item |
Unit |
Technical Requirement |
Test Result |
Appearance |
|
Bright and clean, Uniform color, |
Ok |
Overall Diameter |
mm |
<=0.302mm |
0.295 |
Conductor Diameter |
mm |
0.270±0.004 mm |
0.27 |
Roundness Tolerance |
mm |
<=0.004 mm |
0.002 |
Thickness of insulation film |
mm |
>=0.018mm |
0.025 |
Elongation |
|
>=22 % |
30% |
spring-back angle |
|
<=47 |
43 |
Flexibility and adhesion |
winding test |
1D |
1 |
Jerk test |
No Crack, and No losing adhesion |
OK |
|
heat shock |
|
0.630mm |
ok |
cut-through resistance |
|
320C, 2Min no breakdown |
2 |
Resistance to solvent |
|
1H |
1 |
Breakdown Voltage |
KV |
>=2.2 KV |
7.6 7.0 6.8 6.2 7.7 |
scratch resisting(Average) |
N |
3.25 N |
7.98 |
scratch resisting(Min) |
N |
2.75 N |
7.12 |
package |
|
Meet the export standards |
Ok |
Enamel Film continuity |
|
<=25 /30m |
0 |
Quality Control Result |
|
Ok |
|
