Home > Products > geocell > Textured Perforated HDPE Geocell for Erosion Control

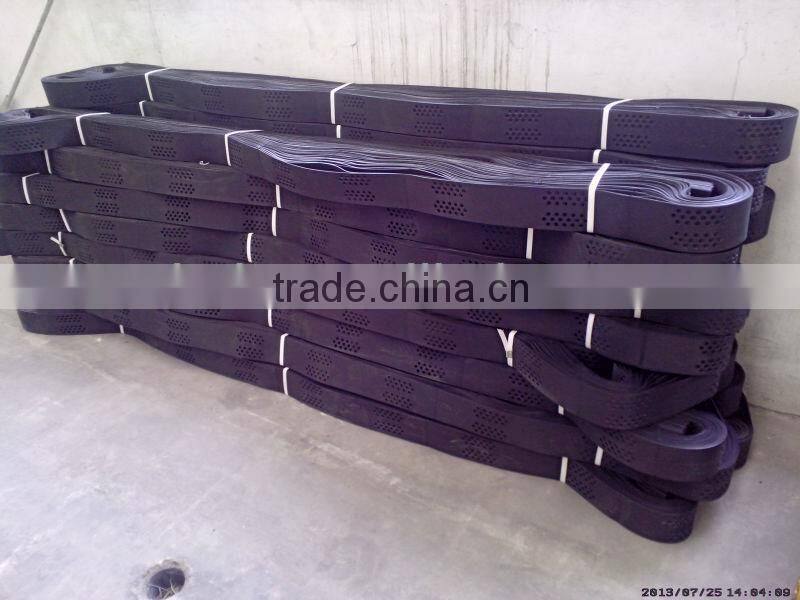

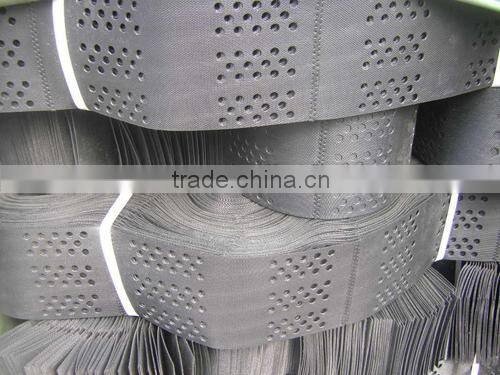

Textured Perforated HDPE Geocell for Erosion Control

Name: Textured Perforated HDPE Geocell for Erosion Control
Brand: Road
Availability: InStock

FOB Price

US$ 1.51 - 7.2 / Square Meter

1000 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Road
Model Number	TGLG-50-400,TGLG-100-400,TGLG-150-400,TGLG-200-400,TGLG-75-330		Material	HDPE

It is a net-shaped cell structure made by welding high intensity thermoplastic sheet.

FEATURES:

1. flexible to fold during transportation, stretching out

2. filled with stone or concrete during service, forming into structure with powerful lateral confinement and rigidity.

3. used as cushion coat to strengthen loading capacity of weak ground or slope protection structure

FUNCTIONS:

1. Fix railway ground.

2.Fix weak ground of roads and increase loading capacicity.

4.used to build the support block struction

5.Act as independent wall, dock and break-water.

6.Treat desert, beach, riverbed and bank.

Geocell Product Poperties

	Height (mm)	Welding distance (mm)	Sheet thickness(mm)		Tensile yield strength of the cell≥(MPa)	Seam peel strength≥(N)
	Height (mm)	Welding distance (mm)	smooth	textured	Tensile yield strength of the cell≥(MPa)	Seam peel strength≥(N)
TGLG-50-400	50	400	1-1.1	1.4-1.5	20	500
TGLG-100-400	100	400	1-1.1	1.4-1.5	20	1000
TGLG-150-400	150	400	1-1.1	1.4-1.5	20	1500
TGLG-200-400	200	400	1-1.1	1.4-1.5	20	2000
TGLG-75-330	75	400	1-1.1	1.4-1.5	20	750
TGLG-100-330	100	400	1-1.1	1.4-1.5	20	1000
TGLG-150-330	150	400	1-1.1	1.4-1.5	20	1500
TGLG-200-330	200	400	1-1.1	1.4-1.5	20	2000
