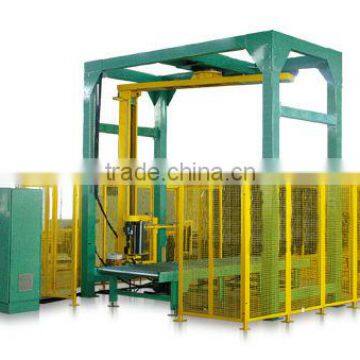

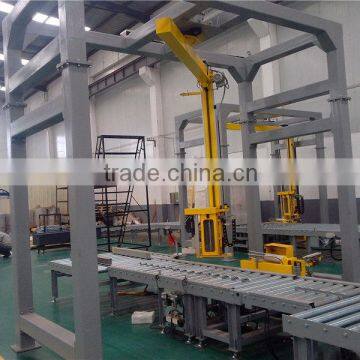

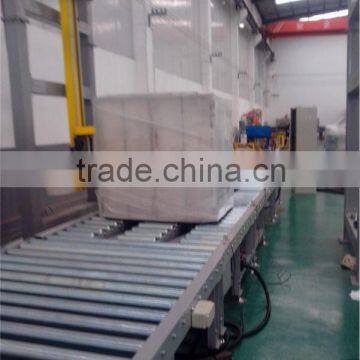

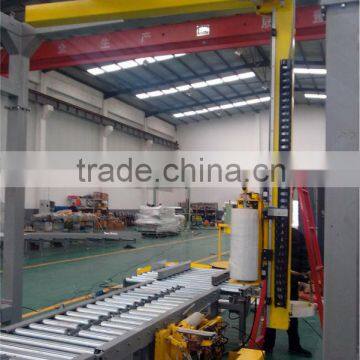

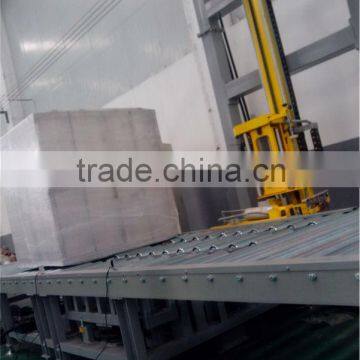

Help CenterDR1800FZ-PL-FM-CS/B Rotary Arm Wrap Machine With Top Plate & Top Sheet Dispenser
Related Products
-
DR1800F-B Semi-Automatic Rotary Arm Wrap MachineUS$ 12,300 - 27,500MOQ: 1 Set -
DR1800FZ-PL/B Rotary Arm Wrap Machine (standard)US$ 12,300 - 27,500MOQ: 1 Set
-
DT1800FZ-CS-B Fully Automatic Stretch Wrap Machine (with Top Plate)US$ 2,500 - 6,500MOQ: 1 Set
-
DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap MachineUS$ 2,500 - 6,500MOQ: 1 Set
-
DT1800FZ-PL/B Fully Automatic Stretch Wrap Machine (standard)US$ 2,500 - 3,500MOQ: 1 Set
Specifications
DR1800FZ-PL-FM-CS/B is specially designed for tall and unstable goods which has waterproof requiredSpecification:
DR1800FZ-PL-FM-CS/B is specially designed for tall and unstable goods which has waterproof required, top plate provides a press to the top of load and ensure it safety packing. The fully automatic top sheet dispenser and film carriage dispenser is to provide five-sided protection to stretch wrappings.
Technology data:
Model |
DR1800FZ-PL-FM-CS/B |
|
Wrap size (L×W) |
(500-1300)mm×(500-1200)mm |
|
Wrap height (max) |
1800mm |
|
Rotary speed |
standard |
0-15rpm adjustable >30 Pallets/Hour |
High speed |
0-25rpm adjustable >45 Pallets/Hour |
|
Super speed |
0-35rpm adjustable >60 Pallets/Hour |
|
Film carriage |
Power pre-Stretch system up to 350% with adjustable speed |
|
Cut & clamp unit |
Pneumatic |
|
Pneumatic system |
0.6-0.8Mpa,1000ml/min |
|
Lift system |
Lift speed adjustable |
|
Conveyor |
Height:400mm,Speed:8-15m/min, Load-bearing:2000kg |
|
Control system |
PLC control,wrap layers adjustable,photo-eyes |
|
Safety system |
Grid guard and strike-proof protect system |
|
Machine size (L×W×H) |
4000mm×2000mm×3500mm(without conveyor) |
|
Power/voltage |
Rotary arm: 0.75kw Film carriage: 0.37kw Lift system: 0.37kw/AC380V |
|
Top plate system |
Pneumatic |
|
Top sheet dispenser |
Fully automatic; photo-eyes auto-height sensing |
|
Special machine please contact us
