Specifications
It is a machine that arm rotates around the load, specially for unstable or very high loads and extremely heavy loads .Specification:

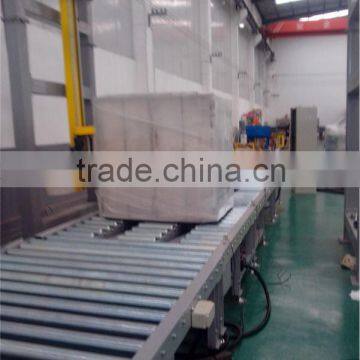

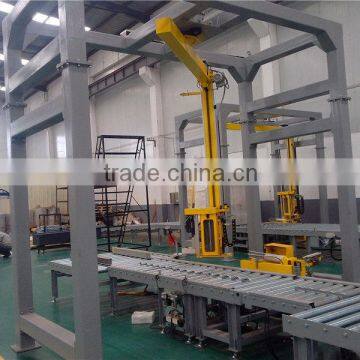

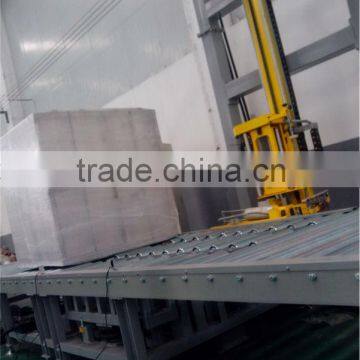

Rotary arm stretch wrapper is a machine that arm rotates around the load, specially for unstable or very high loads and extremely heavy loads because the pallet can be placed on the conveyor line under the wrappers.
This machine keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film. When using rotary tower machines, the load is wrapped while it sits on a conveyor line.
Technology data:
Model |
DR1800FZ-PL/B |
|
Wrap size (L×W) |
(500-1300)mm×(500-1200)mm |
|
Wrap height (max) |
1800mm |
|
Rotary speed |
Standard |
0-15rpm adjustable >30 Pallets/Hour |
High speed |
0-25rpm adjustable >45 Pallets/Hour |
|
Super speed |
0-35rpm adjustable >60 Pallets/Hour |
|
Film carriage |
Power pre-Stretch system up to 350% with adjustable speed |
|
Cut & clamp unit |
Pneumatic |
|
Pneumatic system |
0.6-0.8Mpa ,1000ml/min |
|
Lift system |
Lift speed adjustable |
|
Conveyor |
Height:400mm Speed:8-15m/min Load-bearing:2000kg |
|

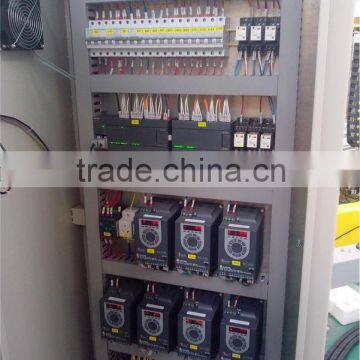

Control system |
PLC control,wrap layers adjustable,photo-eyes auto-height sensing |
|
Safety system |
Grid guard and strike-proof protect system |
|
Machine size (L×W×H) |
4000mm×2000mm×4300mm(without conveyor) |
|
Power/voltage |
Rotary arm:0.75kw Film carriage:0.37kw Lift system: 0.37kw/AC380V |
|
Special machine please contact us
