Specifications

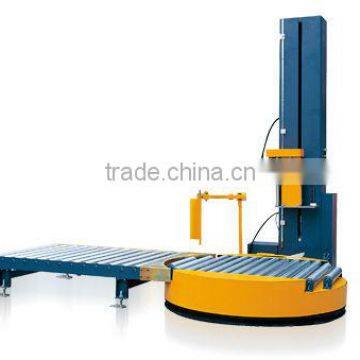

This machine is fully automatic stretch wrapper that can operate in line with other automatic equipment etc.DT1800FZ-PL/B Fully automatic stretch wrap machine (standard)
Specification:
This machine is fully automatic stretch wrapper that can operate in line with other automatic equipment etc.
The pallet is auto travelled to the pallet wrapper from the infeed conv. Wrapping cycle is automatic begin when the pallet is stopped in the wrapping position. Film attached against the pallet at the beginning of wrap and cut & grab film tail after wrapping finished. The wrapped load transported to the outfeed conv. and waiting for the forktruck unload .And the machine is ready for next load.
This machine can be designed according client's specification.
Technology data:
Model |
DT1800FZ-PL/B |
Wrap size(L×W) |
(800-1200)mm×(800-1100)mm |
Wrap height (max) |
L type:1800mm H type:2400mm Y type:2800mm |
Wrap efficiency |
30-50 Pallets/hour |
Turntable speed |
0-15rpm Adjustable turntable speed |
Turntable size |
Diameter:Φ1800mm Height:300mm |
Turntable weight capacity (max) |
2000kg |
Film carriage |
Power pre-Stretch system up to 350% with adjustable speed |
Lift system |
Lift speed adjustable |
Top plate (optional) |
Motor-driven |
Cut & clamp unit |
Pneumatic Control; Automatic Film Attaching, Cutting And Wiping |
Control system |
PLC Control |
Pneumatic system |
0.6-0.8Mpa;1000ml/min |
Total weight (max) |
1000kg |
Machine size |
2820mm×1800mm×(2600-3200)mm |
Power/voltage |
Turntable 1.5kw Film carriage0.35kw Lift system0.37kw conveyor system 0.37kw (380V AC/50Hz/20A) |
Special machine please contact us
