Home > Packaging & Printing > Packing Machinery > Wrapping Machine > DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine photo-1

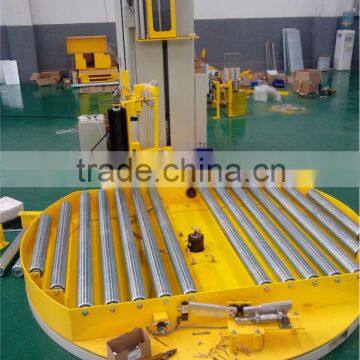

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine photo-2

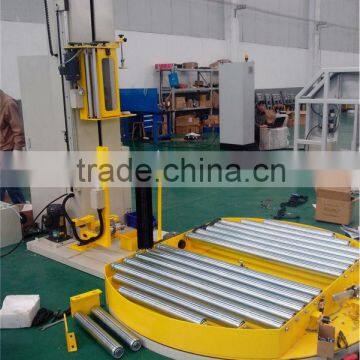

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine photo-3

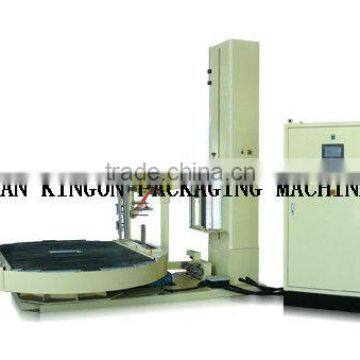

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine photo-4

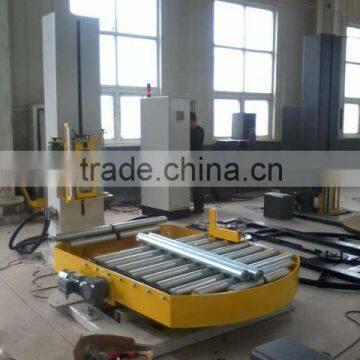

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine photo-5

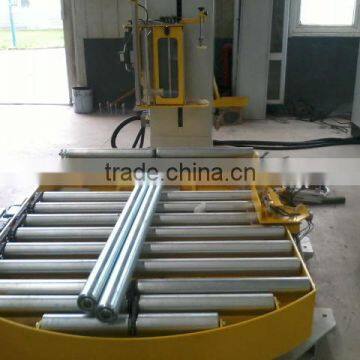

DT1800FZ-PL/C Heavy-duty Fully Automatic Stretch Wrap Machine photo-6
US$ 2,500 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Film, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type Film, Case
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Place of Origin Shandong, China
Brand Name KINGON
Model Number DT1800FZ-PL/C
After-sales Service Provided Engineers available to service machinery overseas

Specifications

It is designed for heavy-duty package with slewing bearing that can operate in line with other automatic equipment etc.

DT1800FZ-PL/C Heavy-duty fully automatic stretch wrap machine



Specification:

DT1800FZ-PL/C fully automatic stretch wrapper is designed for heavy-duty package with slewing bearing that can operate in line with other automatic equipment etc.



Technology data:

Model

DZ1800FZ-PL/C

Wrap size(L×W)

(800-1200)mm×(800-1100)mm

Wrap height(max)

L type:1800mm   H type :2400mm   Y type:2800mm

Wrap efficiency

30-50 Pallets/Hour

Turntable speed

0-15rpm Adjustable turntable speed

Turntable size

Diameter:Φ1800mm Height:400mm

Turntable weight capacity (max)

2000kg

Film carriage

Power pre-Stretch system up to 350% with adjustable speed

Lift system

Lift speed adjustable

Top plate (optional)

Motor-driven

Cut & clamp unit

Pneumatic Control; Automatic Film Attaching, Cutting And Wiping

Control system

PLC control

Pneumatic

0.6-0.8Mpa;1000ml/min

Total weight (max)

1000kg

Machine size

2820mm×1800mm×(2600-3200)mm

Power/voltage

Turntable 1.1kw Film carriage 0.35kw Lift system 0.37kw   Conveyor 0.37kw (380V AC/50Hz/20A)



     Special machine please contact us
