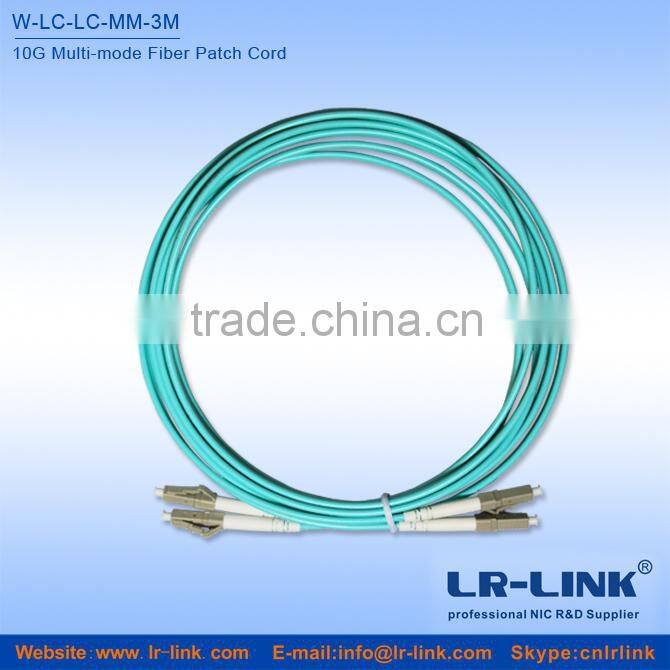

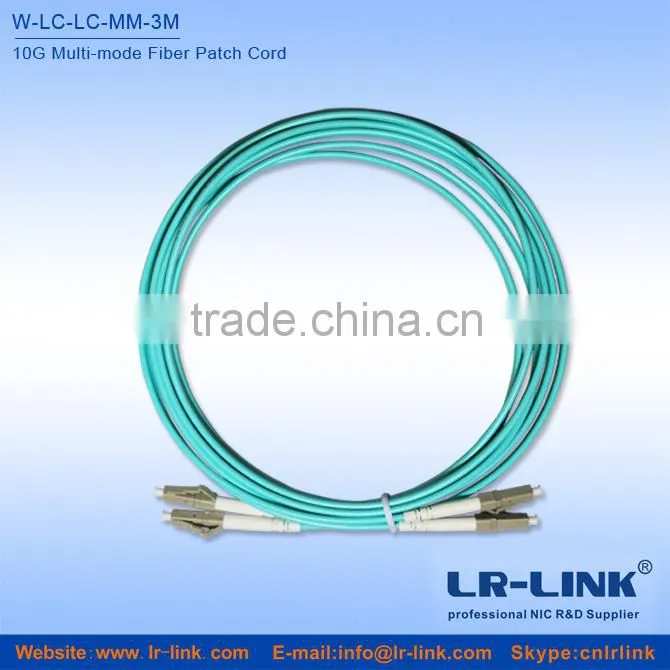

3 meter multimode 10G LC-LC fiber optic cable

LC-LC 3 metre multimode fiber optic cable

Model:W-LC-LC-3M

duplex/simplex fiber optical patch cord

Application:

1.Telecommunications&Data communications

2.Lan(including FTTH and FTTD)

3.Component termination

4.CATV ,CCTV,Network

Features:

1.Low insertion loss,high return loss

2.Small,light high dense connection

3.Standard exact plastic material

4.High credibility and stability

5.Good in repeatability and exchangeability

Optical performance

1.Measurement parameters for singlemode(1310nm)Multimode(850/1300nm)

2.optical insertion loss UPC APC PC

3.Do.2dB.2dB,5dB

4.Return loss d-50 dB d-60 dB d-30 dB

5.Mechanical Changeability <0.2dB

6.shake < 0.1 dB (5~50 Hz, 1.5 mm Amplitude)
7.Interferometer Apex offset d50um
8.Radius of curvature 10mm-25mm (Zirconia Ferrule 2.5mm PC polishing)
9.7mm-25mm(Zirconia Ferrule 1.25mm PC polishing)

• tension strength(dB):≤0.1(0-15kg  tension)

• Core materials in ceramic

• work tempreture:-20~+60°c;

• storage tempreture:-40~+80°c

• humidity(no package):90%RH
