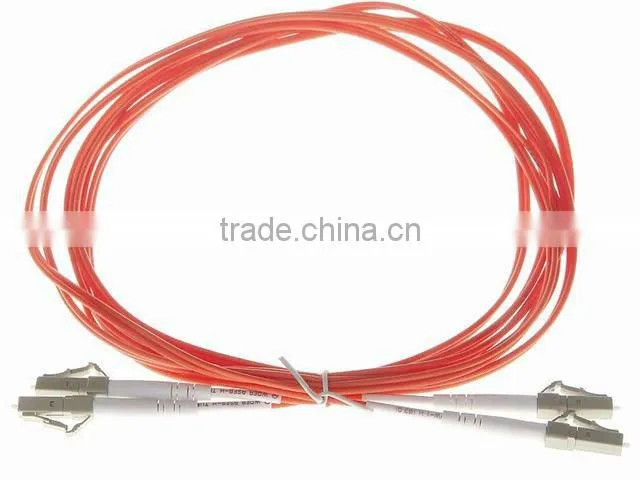

LC-LC 3 metre multimode fiber optic patch cord
model:LREF-LC-LC-3M-M
duplex/simplex fiber optical patch cord
Application:
1.Telecommunications&Data communications
2.Lan(including FTTH and FTTD)
3.Component termination
4.CATV ,CCTV,Network
Features:
1.Low insertion loss,high return loss
2.Small,light high dense connection
3.Standard exact plastic material
4.High credibility and stability
5.Good in repeatability and exchangeability
Optical performance
1.Measurement parameters for singlemode(1310nm)Multimode(850/1300nm)
2.optical insertion loss UPC APC PC
3.Do.2dB.2dB,5dB
4.Return loss d-50 dB d-60 dB d-30 dB
5.Mechanical Changeability <0.2dB
6.shake < 0.1 dB (5~50 Hz, 1.5 mm Amplitude)
7.Interferometer Apex offset d50um
8.Radius of curvature 10mm-25mm (Zirconia Ferrule 2.5mm PC polishing)
9.7mm-25mm(Zirconia Ferrule 1.25mm PC polishing)
- tension strength(dB):≤0.1(0-15kg tension)
Core materials in ceramic
work tempreture:-20~+60°c;
storage tempreture:-40~+80°c
-
humidity(no package):90%RH
