PCIe x8 Intel Chipset SFP+ 10G Fiber NIC Compatible With X520-SR2

LREC9802BF-2SFP+

PCIe x8 Intel Chipset SFP+ 10G Fiber NIC Compatible With X520-SR2

10G Fiber NIC Provide Ultimate Flexibility and Scalability in Virtual and Unified Storage Environments

Intel Chip SFP+ 10G Fiber NIC Description:

LR-LINK LREC9802BF-2SFP+ compatible with X520-SR2  are the most flexible and scalable Ethernet adapters for today’s demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

The LR-LINK LREC9802BF-2SFP+ Intel chip sfp+ 10g fiber nic delivers the same functionality and throughput as ten dual-port, one gigabit adapters, saving cost, power, and complexity.

Best Choice for Virtualization

Unified Networking and Storage

Support for FCoE

Support for iSCSI

Reliable Performance

Security Optimizations

PCIe v2.0 (5 GT/s)

Designed For Multi-core Processors

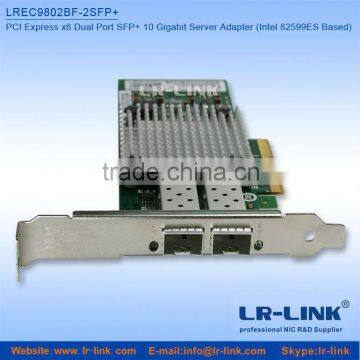

Intel Chip SFP+ 10G Fiber NIC Picture:

General

Low-profile

Load balancing on multiple CPUs

iSCSI remote boot support

Support for NOS

Intel® PROSet Utility for Windows* Device Manager

Time Sync (IEEE 1588, 802.1as)

I/O Features for Multi-core Processor Servers

Intel® Direct Cache Access (DCA)

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 128 Tx and Rx queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload (IPv4, IPv6)

Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

IPsec Offload

MacSec

Virtualization Features

Dual sfp+ port network card  support VMDq

Next-Generation VMDq1  (64 queues per port)

PC-SIG SR-IOV Implementation (64 virtual functions per port)

Virtual Machine Load Balancing (VLMB)

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters

Dual sfp+ port network card support ISCSI Boot

Watchdog Timer

Adapter Product Features

Intel® PROSet Utility

Receive Side Scaling

Direct Cache Access (DCA)

Advanced Software Feature

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

Teaming support

IEEE 802.3ad (link aggregation control protocol)

PCIe Hot Plug*/Active periphera; component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 802.3 2005* flow control support

Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol

(UDP), Internet protocol (IP)

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type

Network Operating Systems (NOS) Software Support

Windows 7 32-bit(64-bit)

Windows 8.1 32-bit(64-bit)

Windows Vista 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit)

Windows Server 2012 R2 32-bit(64-bit)

Linux kernel 2.6.30 or greater (x86_64) (w/ SR-IOV support)

FreeBSD 7.2 or laster

Linux RHEL 6.x

Linux SLES 11 SP1

Linux SLES 10 SP4

OS Independent

DOS NDIS 2

DOS ODI

EFI 1.1

Vmware ESX 4.0²

VMware Workstation

Ordering Information

PS: The above details are only for reference,if there are any changes,no inform will have.
