LREC9210PF-SFP PCIe Fiber Optic Lan SFP Card

Shenzhen LR-LINK Electronics Co., Ltd.

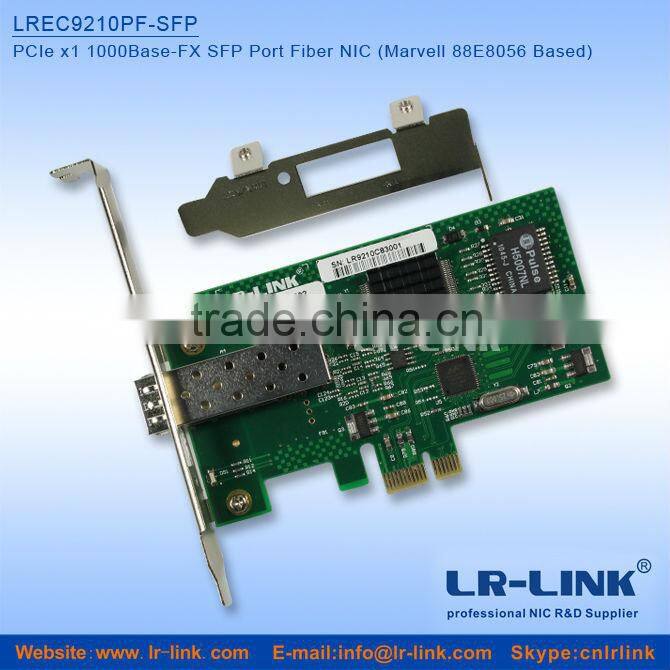

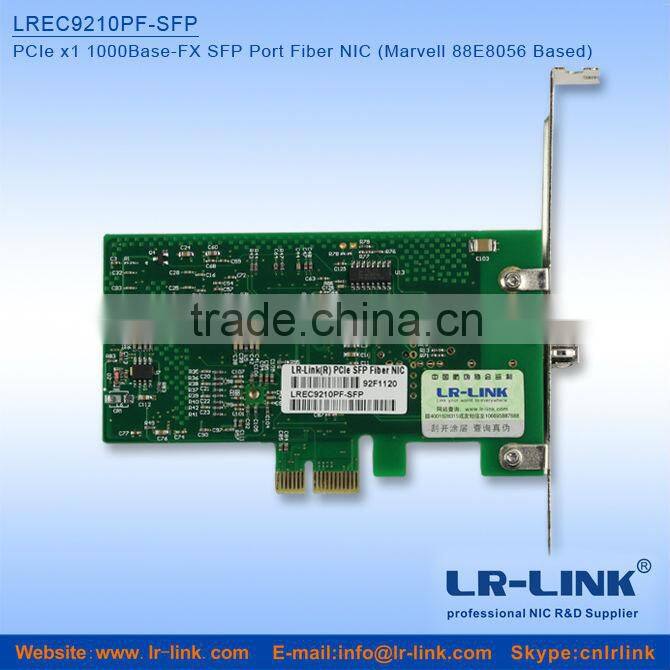

LREC9210PF-SFP PCIe Fiber Optic Lan SFP Card thumbnail-1
LREC9210PF-SFP PCIe Fiber Optic Lan SFP Card photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Type:
Wired
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Type Wired
Kind Internal
Transmission Rate 1000Mbps
Interface Type PCI Express
Certification CE,FCC,ROHS
Brand Name LR-LINK
Model Number LREC9210PF-SFP
Place of Origin Guangdong, China

LREC9210PF-SFP PCI Express Gigabit Fiber Optic Network Card(SFP Interface)

LREC9210PF-SFP PCIe Fiber Optic Lan SFP Card



PCIe Fiber Optic Lan SFP Card



Descriptions:

LREC9210PF-SFP is a Fiber Gigabit Ethernet to  PCI Express bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX/LX standards. It provides up to 2000Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment. Two LED indicators (LINK/ACT and FDX) on the bracket will help to oversee the board link, activities and full-duplex status.





PCIe Fiber Optic Lan SFP Card

Key Features:



High bandwidth 1000Mbps Network Speed
Supports Full-Duplex Mode
Supports IEEE 802.3x Full-Duplex Flow Control
Supports PCI express bus
Supports Jumbo Frame up to 9014 Bytes
Supports High Level VLAN Filtering Function
Supports 802.3ad Link Aggregation (LACP)
Supports on-board verification of IP headers and TCP / UDP checksums for received data
Supports on-board screening of VLAN tagged Ethernet frames
Supports ASF
RoHS Compliance





  Technical Specification:



Standards:
IEEE 802.3z Gigabit Ethernet 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLANs
IEEE 802.1p Quality of Service

Connector: SC

Fiber Optic Cable :
multi-mode: 62.5/125, 50/125μm
single-mode:9/125μm

Data Transfer Mode/Speed:
Full duplex with NWay flow control
1000Mbps speed

Diagnostics LED on Bracket:
LINK/ACT
FDX

Bus Slot: 32 bits PCI 2.3 Compliant

Power Requirement: Max. 10W, +5VDC@2A
Ambient Temperature: 0°C ~ 50°C
Humidity: 5%~90%

Weight: 0.07Kg
Emission:Complies with EMI Standard, FCC Class B, CE Mark

Software Support:
Windows 98,Windows 2000,Windows 2003,Windows XP,Windows NT4.0,Vista,Novell Netware 2.4,Linux,UnixWare 7.0

LREC9210PF-SFP PCIe Fiber Optic Lan SFP CardLREC9210PF-SFP PCIe Fiber Optic Lan SFP CardLREC9210PF-SFP PCIe Fiber Optic Lan SFP Card
