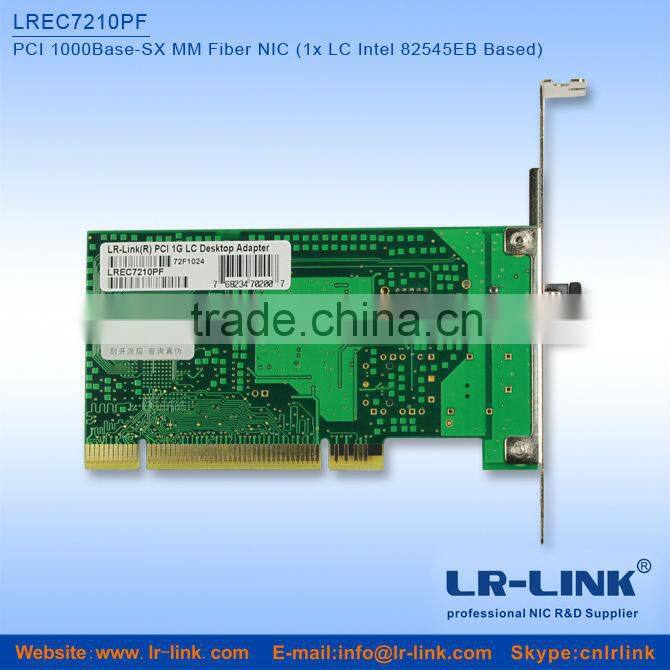

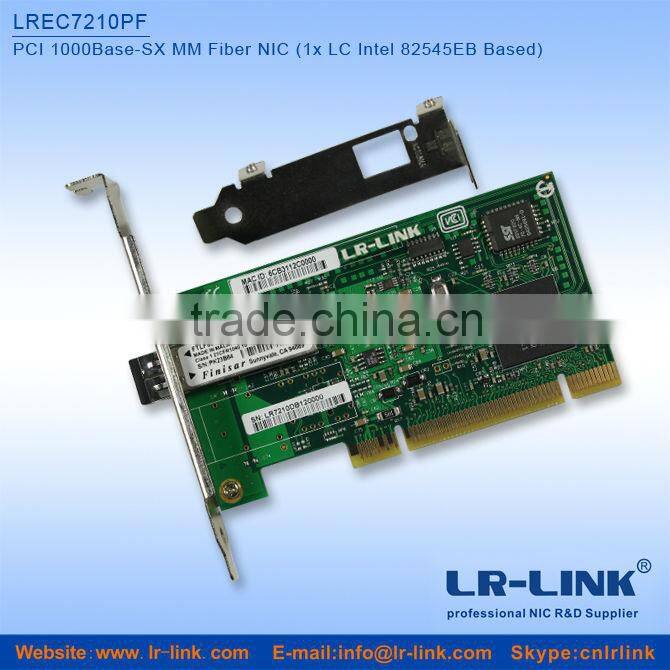

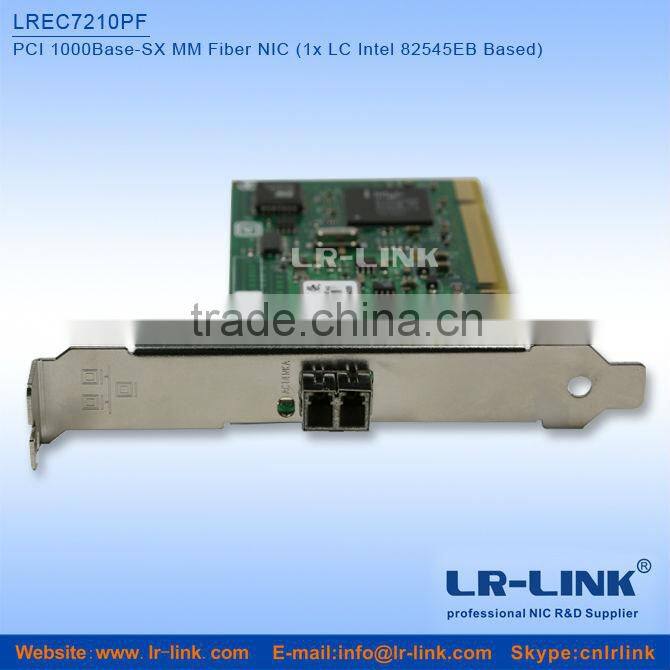

LREC7210PF Ethernet 1000M gigabit Fiber Optic PCI lan card(single fiber port)
Product Description:
Intel® 82545GM Embedded & Communications Products
PRO/1000 Server Adapter Series
1.1000M PCI Gigabit Fiber Optic lan card
2.intel 82545 PCI lan card
3.Diskless PXE Bootrom
4.OEM/ODM ethernet lan card
5.low bracket
Features |
Benefits |
Support for most NOSs |
Enables widespread deployment |
Supports 64- or 32-bit PCI-X 1.0 or PCI 2.2 buses |
This flexible, auto-sensing adapter works in a variety of bus types |
Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters |
Reduces support costs and simplifies installation and maintenance |
IEEE 802.3z Compatibility |
Supports Gigabit Ethernet industry-wide networking standard |
|
Full-height and low profile, screw-on brackets included with each adapter
|
Compatible with full-height and low-profile PCI slots—the standard, full-height bracket can be easily swapped out and replaced by the shorter, low-profile bracket, for installation in high-density 1U and 2U servers that feature low-profile PCI slots |
|
Interrupt Moderation
|
Delivers increased performance while significantly reducing CPU utilization
|
|
Large Send Off-load/TCP Segmentation Off-load
|
Compatible with Large Send Off-load feature of Microsoft Windows* Server 2003, 2000 and XP which enables wire speed performance with low CPU utilization |
|
LC Connectors
|
This new, smaller connector design is compatible with the latest fiber-optic cabling standards |
Specifications:
Connectors |
LC Fiber Optic |
IEEE Standard/Network Topology |
1000BASE-LX |
Wiring |
Single-mode/Multi-mode 9um/62.5um or 50um |
Data Rate Supported per Port |
1,000 Mbps |
Bus Type |
PCI |
Length x Width |
16.5cm x 6.4cm (6.6" x 2.5") |
NOS SOFTWARE SUPPORT |
Microsoft Windows Server 2003/2000 |
ADVANCED SOFTWARE FEATURES |
Adapter Fault Tolerance |
NETWORK MANAGEMENT |
Wired for Management (WfM) Baseline v2.0 Enabled for Servers |
z
