Home > Products > Automated dispensing system > speaker glue coating machine -TH-2004L1-1
speaker glue coating machine -TH-2004L1-1
- 100 Piece / Pieces per Month
- NINGB
- automatic toroidal winding machine Replace JOVIL toroidal winder by (SS900B6 series final coil OD 10~81mm)
- Replace RUFF toroidal winder by (SS900B6 series final coil OD 10~80mm)toroid winding machine
- (SS900B6 series) automatic toroidal winding machine
- Replace VC toroidal winder by (SS900B6 series) automatic toroid winding machine
- SS966T 6 spindles automatic fine wire twisting transformer coil winding machine
- SS810 Automatic high torsion electric power transformer coil winding machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | TianHao Dispensing |
Model Number: | TH-2004L1-1 | Voltage: | 220V | Power(W): | 300W |
Weight: | 15kgs | Dimension(L*W*H): | 49X41X52cm | Certification: | CE |
Warranty: | one year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.Special Rotary Dispense System for speaker industry2.Good quality
3.1 year wrrantry
4.OEM services accepted
Model:
TH-2004L1-1 speaker glue coating machine
Established in 2000, TIANHAO is more than just a provider of highquality adhesive application equipment:
since our early days as a small dispensing robot manufacturer, we have offered our customers the highest standards in service while expanding ourequipment product lines.
As a result, today TIANHAO is a comprehensive manufacturer of dispensing products.
Our Dispensing Products are used in many industries including automotive,aerospace,electronics, home appliances , jewelry and much more .
We are able to provide a solution for every application requiring precision applications of fluids.

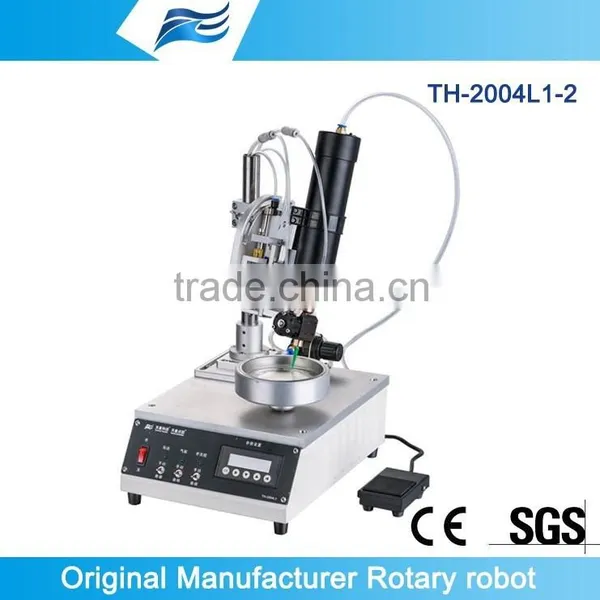

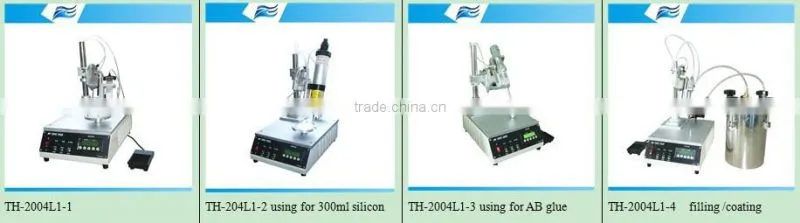

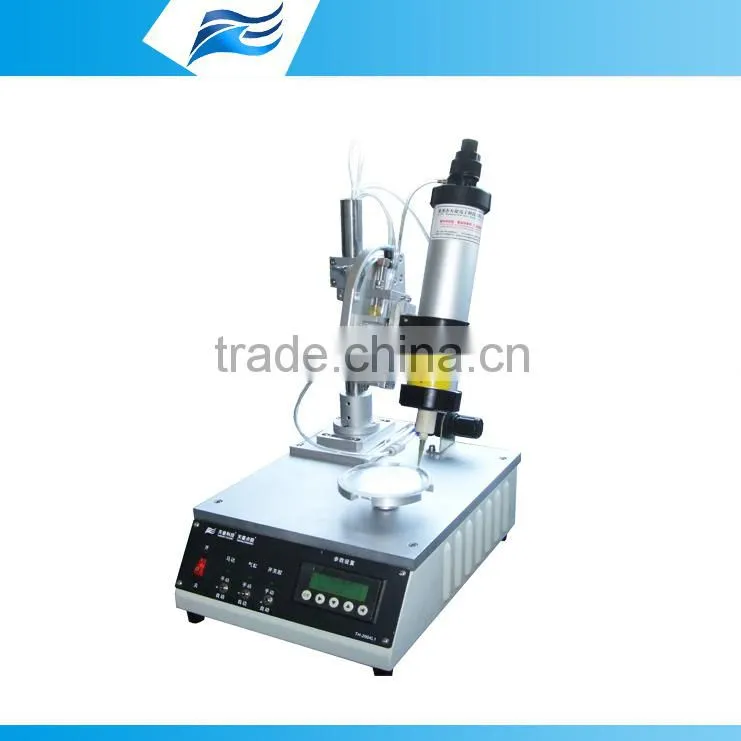

Product pictures: rotary coating machine
Rotary tables Dispenser are used for semiautomatic dispensing applications of rotary parts,. table for dispensing circular beads, such as adhesives, cyanoacrylates, RTV,
silicone, UV cure resins, anaerobic resins on circular parts up to 15" in diameter.Designed for dispensing adhesives onto speakers
and for speaker coil assembly may help you to efficiently increase the quality of the product, reducing the production cost and
promoting productivity.Widely used in energy industry saving lamps, motors, end caps, oil seals, bearings, panels, etc.
perfect for Speaker Assembly
Selling Points/Focus
1. Can requires you to setting time before the delay and after the delay, dispensing time, motor speed, even on the glue, non-contact trace
2. Use imported Slide cylinder, so the machine run will be quick and stable, to avoid the mechanical movement error
3. A unique universal adjustment of frame, and equipped with precision micrometer fine-tuning device, can be fast and accurate adjustment of the work piece with dispensing head range 4. Use precision stepper motor, so that the process of dispensing uniform strips 5. Based on the product, process requirements can be flexible with any of a T&H Dispenser and other assistive
Specification
Standard | CE Approved |
Drive | Precision Step Motor |
Adjusting | Universal adjustment of frame |
Max ID | ¢200 |
Motor Speed | 10-300 Cycles/Min |
Repeatability | ±0.01mm |
Frequency: | >100time/munite |
Dispensing time | 0.01-9.99sec |
Input Air pressure | 1-7 bar (100 psi) maximum |
Output voltage | 0.1bar-7bar |
Input voltage | 110 VAC or 220 VAC |
Internal Voltage | 24 VDC |
Weight | 10Kg |
Size | 42 x 49x 52(cm) |
Complete accessories dispensing kit
NO | Name | QTY |
1 | 30CCsyringe/piston | 5pcs |
2. | 30cc barrel adapter | 1pcs |
3 | Plastic tip | 10pcs |
5 | (2 cores) foot pedal | 1pcs |
6 | 220Vpower cable | 1pcs |
TEEØ6 mm | 2PCS | |
7 | Air tube 6x4 | 1pcs |
Package:
Items per Carton: | 1 Units / Carton |
Package Measurements: | 49X41X52cm |
Gross Weight: | 15KG |
Quality gurantee
We provide 1 years warranty of product and shipment with one set fitting to you
Standard packing box
Delivery in 3 workday after received your payment
Shipping ways by TNT.ups,dhl.fedex
Loading port:Ningbo or shanghai
We provide 1years warranty of product and shipment with one set fitting to you
Our Service: Your satisfactory, our pursuit!
1,Your inquiry will be replied in 24 hours.
2,Offer free spare parts and service within one year of warranty,
3,Technology Support Provide Demo operation video for training; If you have time,
welcome to our company, Will arrange engineers to show you the operation.
4, Professional after-sales service team;
5,Give great discount to AGENCY to ensure agents profit.
Our product can help you to achieve the goal :
- Increase production efficiency
- Promotion processing precision control
- Improve product quality
- lower production costs, reduce rejected product
- Eliminate material waste
OUR CERTIFICATE
Patent design certificate
Factory Picture
Our advantages:
1. Original Manufacturer/factory
2. High reputation around the china
3. 10 years experience of glue dispensing machine
4. Best quality and good work
5. High grade components
6. Special dispensing software, both Chinese and English interface
7. Professional service and technology support
8. All models with CE approved;
9. OEM services accepted
Our product:
- 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision ,high efficiency production processes control
- Dispenser.mix/meter dispensing system - for manual assembly processes
- Threadlocking adhesives coating machine-suitable for thread coating processes
- Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
- Valve, tank-for automated production lines
- Highest quality dispensing tips ,syringe barrels
- Other disposable components
Customizable:
1.Input /Oput singal
workrange
3.add pick and place function
