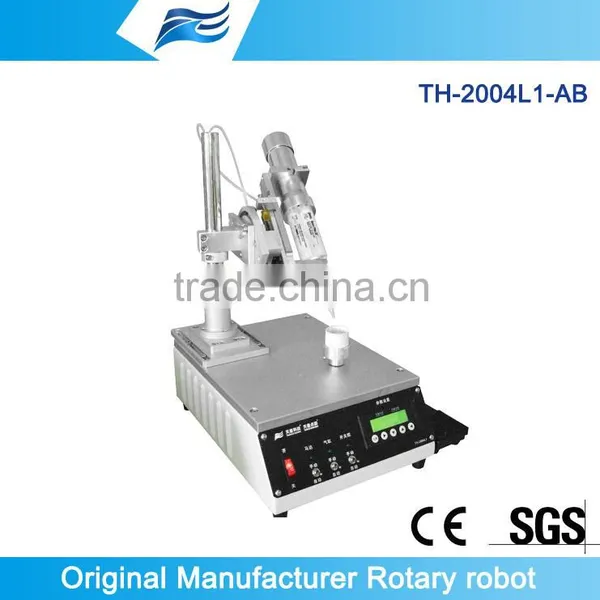

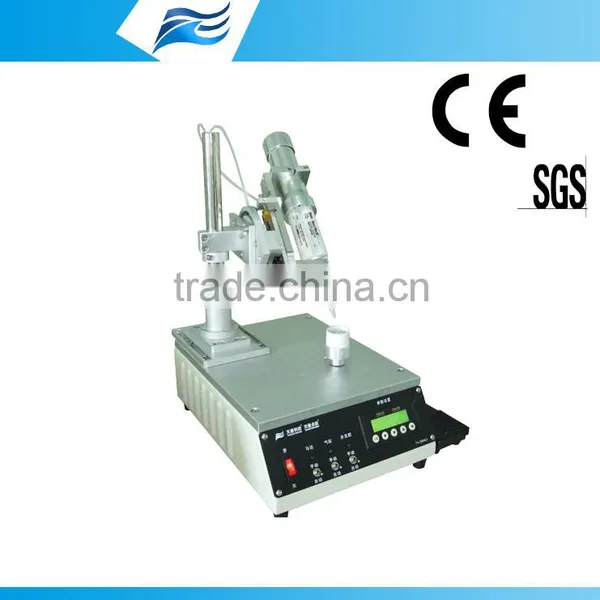

A+B glue dispenser for speaker TH-2004L1-AB

  A+B glue dispenser for speaker   TH-2004L1-AB

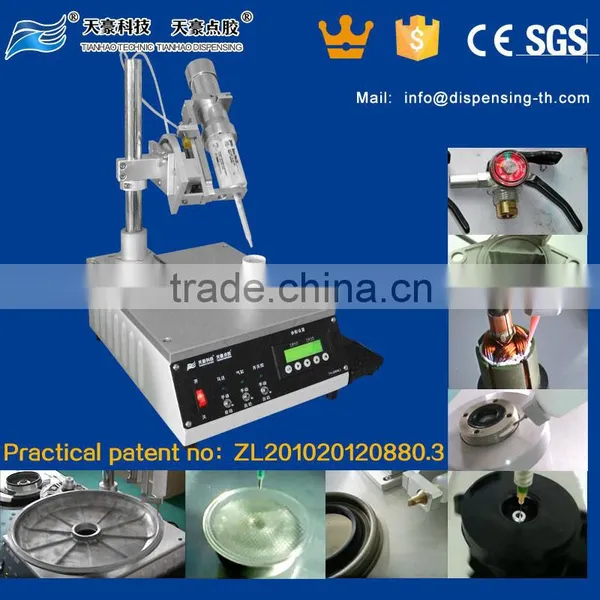

Rotary tables Dispenser are used for semi-automatic dispensing applications of rotary parts,. table for dispensing circular beads, such as adhesives, cyanoacrylates, RTV, silicone, UV cure resins, anaerobic resins on circular parts up to 15" in diameter.Designed for dispensing adhesives onto speakers and for speaker coil assembly may help you to efficiently increase the quality of the product, reducing the production cost and promoting productivity.Widely used in energy industry saving lamps, motors, end caps, oil seals, bearings, panels, etc.

Sales Points/Focus

1. Can requires you to setting time before the delay and after the delay, dispensing time, motor speed, even on the glue, non-contact trace

 2. Use imported Slide cylinder, so the machine run will be quick and stable, to avoid the mechanical movement error

 3.  A unique universal adjustment of frame, and equipped with precision micrometer fine-tuning device, can be fast and accurate adjustment of the work piece with dispensing head range  4. Use precision stepper motor, so that the process of dispensing uniform strips  5. Based on the product, process requirements can be flexible with any of a T&H Dispenser and other assistive

Specification
Standard: CE Approved

Drive: Precision step motor

Adjusting way: universal adjustment of frame

Max ID : ¢200

Motor speed: 10~300 Cycles/minute

Repeatability: ±0.01mm

Frequency: >100time/munite

Dispensing time:0.01-9.99sec
Input Air pressure  1-7 bar (100 psi) maximum

Output voltage:  0.1bar-7bar
Input voltage: 110 VAC or 220 VAC
Internal Voltage: 24 VDC                                                                                          Weight: 10Kg
Size 42 x 49x 52(cm)

Operating Conditions:

Temperature: 5°C to 45°C (41°F-113°F)

Humidity: 85% RH at 30°C non-condensing

Complete accessories dispensing kit

Quality gurantee

We provide 1 years warranty of product and shipment with one set fitting to you

Standard packing box
