glue dispenser machine for loudspeakers TH-2004L1-K
Established in 2000, TIANHAO is more than just a provider of highquality adhesive application equipment:
since our early days as a small dispensing robot manufacturer, we have offered our customers the highest standards in service while expanding ourequipment product lines.
As a result, today TIANHAO is a comprehensive manufacturer of dispensing products.
Our Dispensing Products are used in many industries including automotive,aerospace,electronics, home appliances , jewelry and much more .
We are able to provide a solution for every application requiring precision applications of fluids.

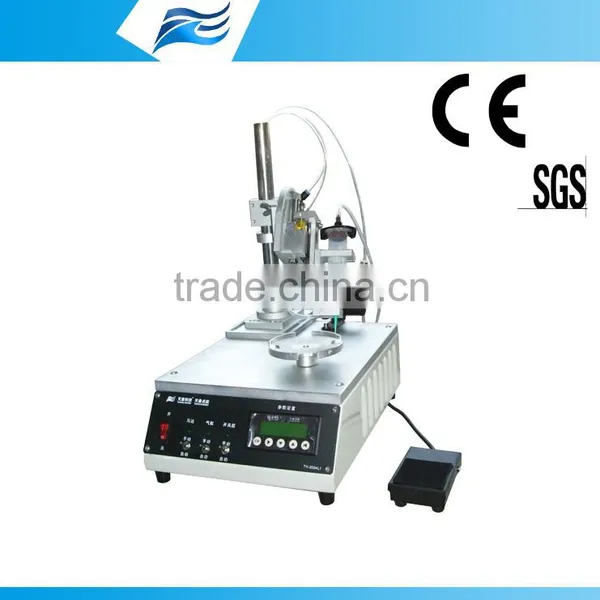

Rotary tables Dispenser are used for semiautomatic dispensing applications of rotary parts,. table for dispensing circular beads, such as adhesives, cyanoacrylates, RTV,
silicone, UV cure resins, anaerobic resins on circular parts up to 15" in diameter.Designed for dispensing adhesives onto speakers
and for speaker coil assembly may help you to efficiently increase the quality of the product, reducing the production cost and
promoting productivity.Widely used in energy industry saving lamps, motors, end caps, oil seals, bearings, panels, etc.
perfect for Speaker Assembly-30cc Barrel
Selling Points/Focus
1. Can requires you to setting time before the delay and after the delay, dispensing time, motor speed, even on the glue, non-contact trace
2. Use imported Slide cylinder, so the machine run will be quick and stable, to avoid the mechanical movement error
3. A unique universal adjustment of frame, and equipped with precision micrometer fine-tuning device, can be fast and accurate adjustment of the work piece with dispensing head range 4. Use precision stepper motor, so that the process of dispensing uniform strips 5. Based on the product, process requirements can be flexible with any of a T&H Dispenser and other assistive
Specification
Standard |
CE Approved |
Drive |
Precision Step Motor |
Adjusting |
Universal adjustment of frame |
Max ID |
¢200 |
Motor Speed |
10-300 Cycles/Min |
Repeatability |
±0.01mm |
Frequency: |
>100time/munite |
Dispensing time |
0.01-9.99sec |
Input Air pressure |
1-7 bar (100 psi) maximum |
Output voltage |
0.1bar-7bar |
Input voltage |
110 VAC or 220 VAC |
Internal Voltage |
24 VDC |
Weight |
10Kg |
Size |
42 x 49x 52(cm) |
Complete accessories dispensing kit
NO |
Name |
QTY |
1 |
30CCsyringe/piston |
5pcs |
2. |
30cc barrel adapter |
1pcs |
3 |
Plastic tip |
10pcs |
5 |
(2 cores) foot pedal |
1pcs |
6 |
220Vpower cable |
1pcs |
TEEØ6 mm |
2PCS |
|
7 |
Air tube 6x4 |
1pcs |
Quality gurantee
We provide 1 years warranty of product and shipment with one set fitting to you
Standard packing box
Factory Picture
