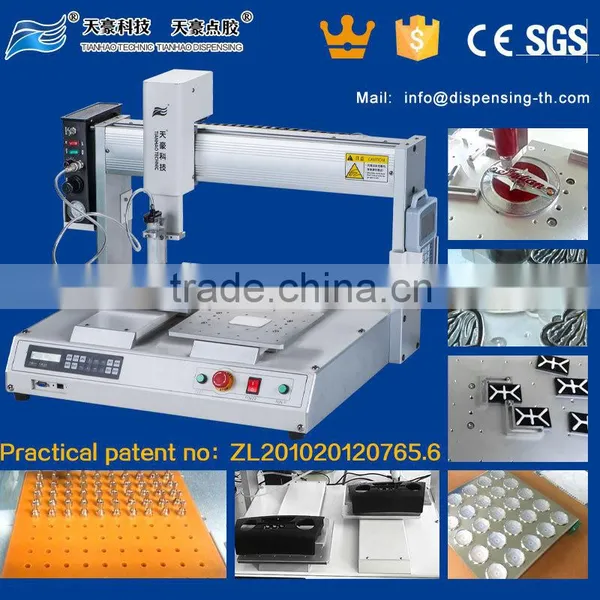

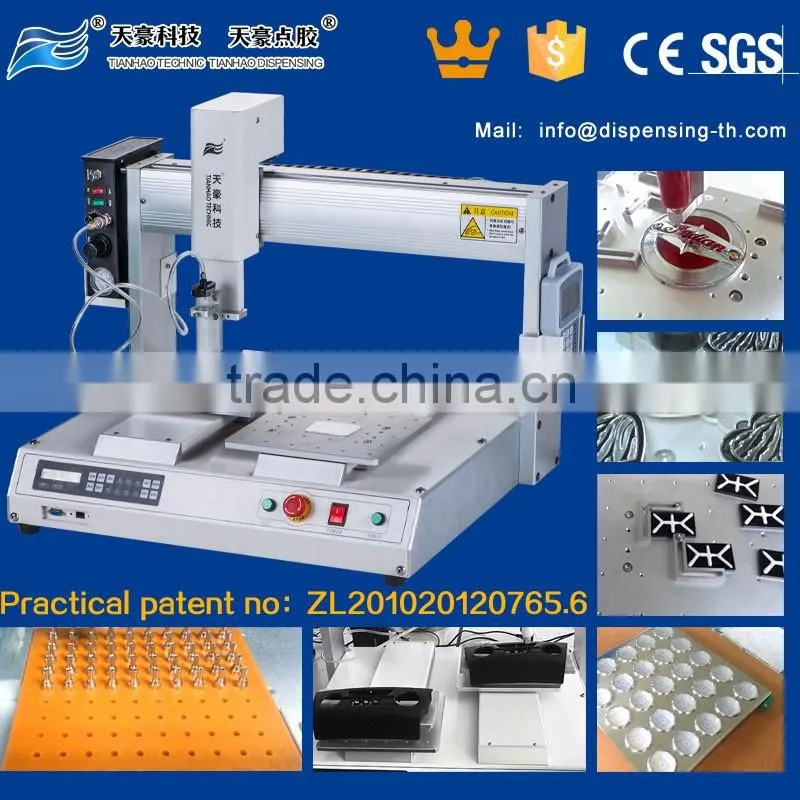

Autoamated Dispensing Machine With Dual Station TH-2004D-530Y

Name: Autoamated Dispensing Machine With Dual Station TH-2004D-530Y
Brand: TianHao
SKU: 115383233
Availability: InStock

Autoamated Dispensing Machine With Dual Station TH-2004D-530Y thumbnail-1

Autoamated Dispensing Machine With Dual Station TH-2004D-530Y photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

TianHao

Model Number:

TH-2004D-530Y

Contact Supplier Request Quote Chat Now

Cixi Tianhao Electric Technic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name TianHao

Model Number TH-2004D-530Y

Product Description

Product Application

Tianhao is the china’s leading precision dispensing equipment and systems manufacturer. Be found in 2001year,Our engineered fluid control systems are trusted for applying controlled amounts of adhesives, sealants, lubricants and other assembly fluids that increase productivity for nearly every industrial manufacturing process.
Tianhao offer a wide range of diversity, reasonable price and on-time delivery.

Applied Industry

Industries Aerospace

Automotive,Electronics

General Manufacturing

Medical Device

Alternative Energy

Application

Bonding

Dispensing-cold material and adhesive

Dispensing-fluid-general(Super glue,Glue,Fast dry glue,Polyurethane glue,White glue

Gasketing-silicon,Silicone adhesive,Silver cream.grease

Gluing-liquid adhesive

Filling-oil,ab glue,Epoxy, resin

Coating-uv glue,Anaerobic adhesive

Sealing-sealants

Soldering-solder paste,solid

Spraying-low viscosity material,paint

Function

1) Processing with bonding, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.

2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.

SPECIFICATIONS FOR autoamated dispensing machine with dual station
Main feature	model	TH-2004D-530Y
	X/Y1/Y2/Z working range	500 x 300 x 300 x 100mm
	XY/Z Maximum Load	15 kg / 6 kg
software	Edit Programming	Handheld Programmer
	Data memory capacity	999programs
	XY/Z Speed	0.1-800/350 mm/Axis
Hardward	Drive System	Precision micro-stepper motor
	Transmission	Timing Belt/ Precision Linear Guides
	Display way	LCD display

Main Features

1.Dual station model available. dual table left and right output to achieve uninterrupted operation in order to improve production efficiency.

2.Available in three and four axis models

3.User-friendly design, compact and attractive appearance, easy to learn.

4.Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files.

5.Professional dispensing software based entirely on the dispensing process development.

6.PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot language programming.

7. Increase the parameters display with programmer, more intuitive operation.

8.Each axis with 2 linear guide rails, providing greater stability.

9.Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy

10.Single machine can operate without pendant

Certifications

Detailed Images

Machine Parts

Main Features

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	86 (L) * 76 (W) * 78 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
