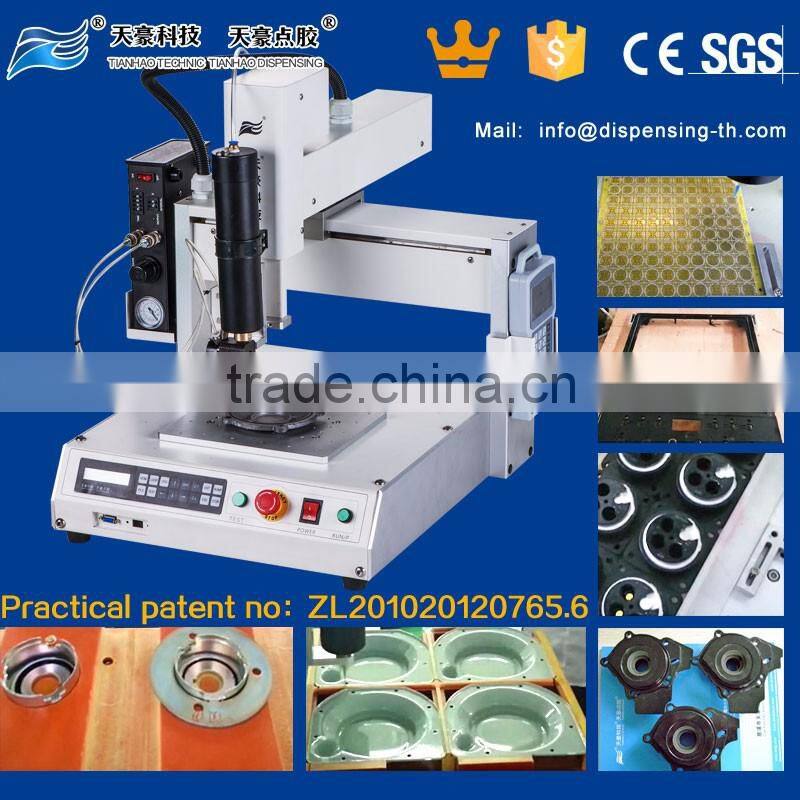

Silicone Dispenser Gantry Robot

Name: Silicone Dispenser Gantry Robot
Brand: TianHao Dispensing
SKU: 115383243
Availability: InStock

Silicone Dispenser Gantry Robot thumbnail-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

TianHao Dispensing

Contact Supplier Request Quote Chat Now

Cixi Tianhao Electric Technic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo and shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name TianHao Dispensing

Model Number TH-206H

Voltage 220V/110V, AC110-230W

Power(W) 350W

Weight 45kg

Dimension(L*W*H) 65x60x55CM

Certification CE Certificate

Warranty 1 Year

After-sales Service Provided Overseas service center available

Product Description

Product Application

The strength of the TH-206H system is suitable for use on any type of platform requiring a gantry type mounting with open access under the robot.It is also ideal for conveyor fed automation or can be installed in work cells operating as a slave robot.

SPECIFICATIONS FOR TH-206H Gantry robot
Main parameter	model	TH-206H
	X/Y/Z working range	300 x 300 x 100mm
	XY/Z Maximum Load	15 kg / 3 kg
	XY/Z Speed	0.1-800/350 mm/Axis
	Repetitiveness	±0.01mm/Axis
Software	Edit Programming	Handheld Programmer
	Data memory capacity	999 programs
	Patterns	Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Hardware	Drive System	Precision micro-stepper motor
	Transmission	Timing Belt/ Precision Linear Guides
	Display way	LCD display

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

4)Cantilever design, suit for conveyors and work cells
5)Tri-axial dual rail robotic arm, the Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy.
6)User-friendly design, compact and attractive appearance, easy to learn
7)Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files
8) Professional dispensing software based entirely on the dispensing process development.
9) PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot language programming.
10) Increase the parameters display with programmer, more intuitive operation.
11)Each axis with 2 linear guide rails, providing greater stability.
12)Simplifies robot and master control systems, High speed capabilities, large work envelope
13)Small footprint. Fast assembly.

Certifications

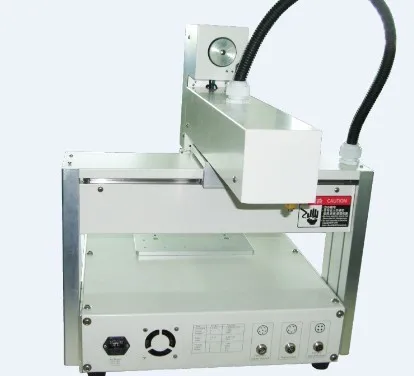

Detailed Images

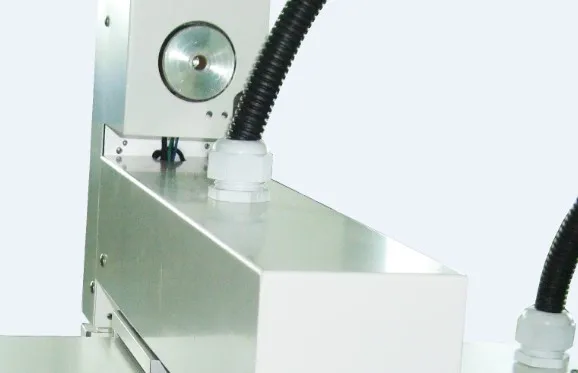

Machine Parts

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	74 (L) * 65 (W) *65 (D)
Weight	42kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
