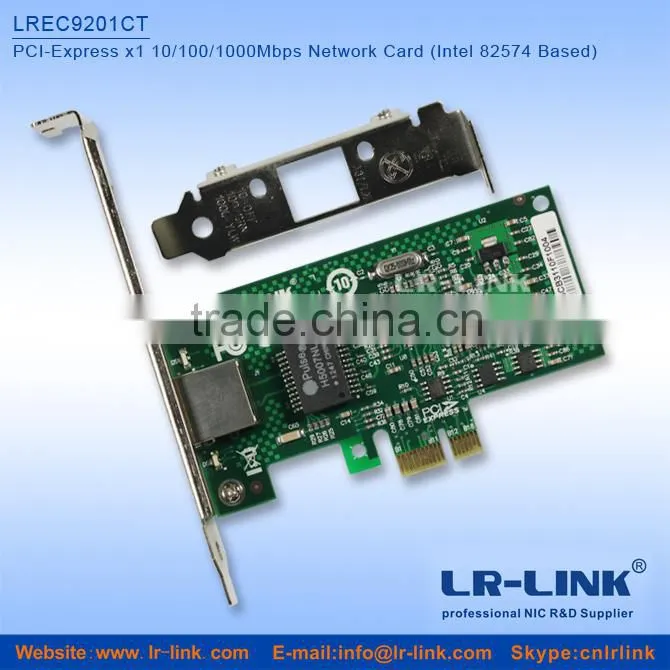

LREC9201CT Intel 82574 PCI-Express x1 10/100/1000Mbps Network Card Compatible With Intel 9301ct PXE BootroomNegotiableMOQ: 1 Piece
-
Realtek RTL8139D PCI Lan Rj45 Ethernet 10/100 Network Adapter CardNegotiableMOQ: 1000 Pieces

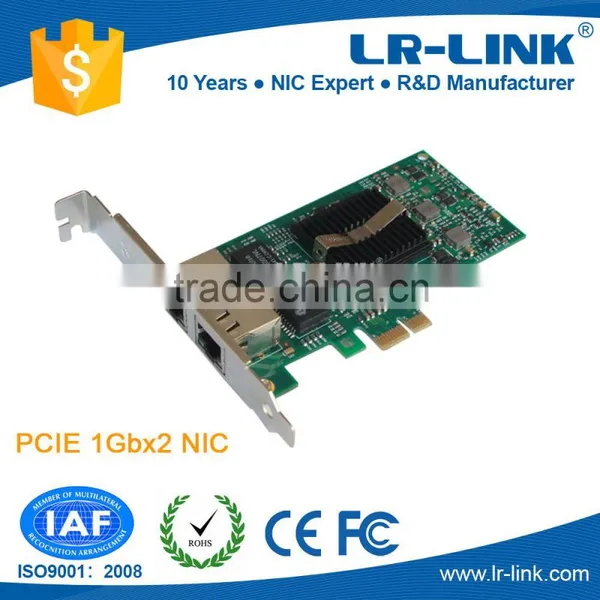

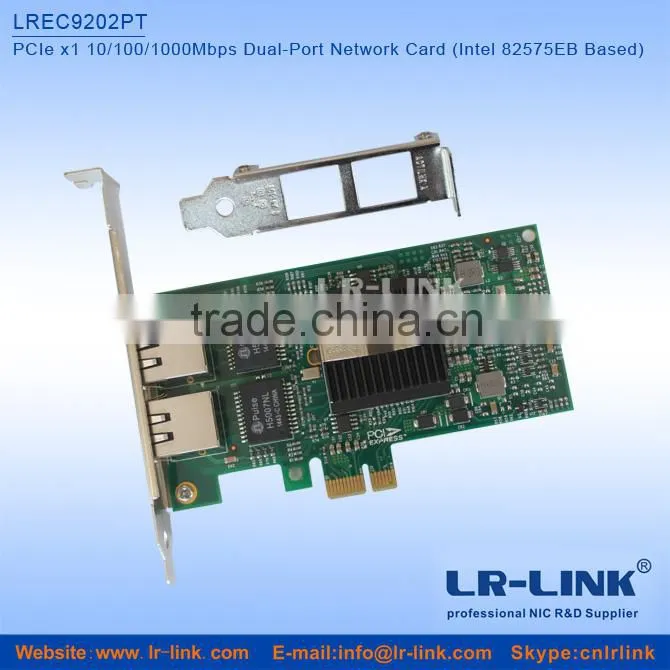

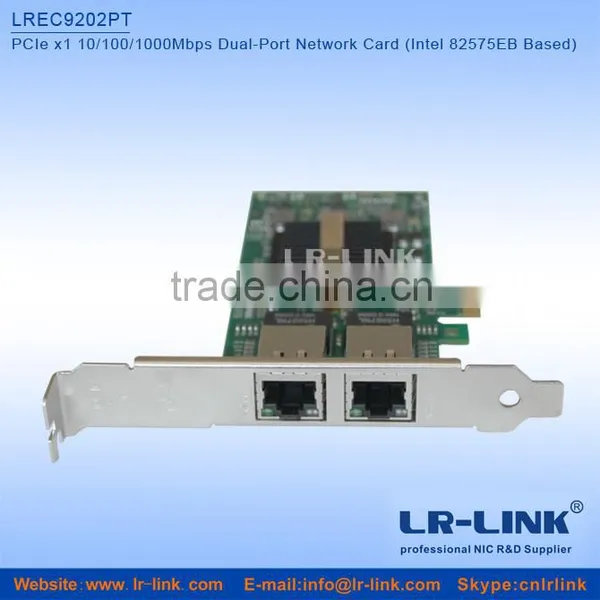

LREC9202PT PCI Express x1 Dual Port Gigabit Network Adapter (Intel 82575 Based)
Descriptions:
LREC9202PT is R&D PCI-Express x1 1000Mbps Dual port ethernet network fiber adapter card by Shenzhen Lianrui Electronics CO.,LTD(LR-LINK). The LREC9202PT adapter card design for servers and high-end equipment, and the performance is optimized, make the system I/O is no longer a high-end bottleneck. LREC9202PT can realize fault tolerance by bundling group, communication from fault port will be routed to the other members.
Advantages:
Improved the power solution, use the TI high power management controller, more stable and low heat
Optimize designation, improved the distribution line, the strict control for Differential Signal, the error under 5mil
Use the 6 layer PCB, double copper thickness, 5OZ heavy gold plate
Connector:
PCI Express x1,compatible with x4,x8,x16
Support PCI Express 1.0a (2.5GHz)
Support Small From Factor PC, low profile(support 2U,3U case)
Features:
Gigabit Dual connector
Support VMDq
Support PCI-Express Base Specification, Rev.1.1RD
High-performance,reliable and low memory latency Intel 82575 gigabit ethernet controller, is a compact component with two fully integrated Gigabit Ethernet Media Access Control (MAC), physical layer (PHY) ports and SerDes interface
EEPROM and FLASH, it can be also be used in EEPROMless configurations
Increased throughput and lower CPU utilization,avoid PCI-express in jam
Hardware accelerate can partial load CUP tasks. Transmit and receive IP, TCP and UDP checksum off-loading
Capabilities, Transmit TCP segmentation
Reliable,useful Server levels and features
Link aggregation and load balancing:
1 decided by switch:802.3ad (LACP),Generic Trunking (GEC/FEC)
2 independent of switch and NIC
3 Failover
Support 802.1p layer 2 priority encoding
Support802.1q VLAN tagging
Jumbo frame 9.5 kByte
Support 802.x flow control
Simple Network Management Protocol (SNMP) II statistics,Ethernet like MIB ,Ethernet MIB (802.3z,Clause 30)
Link/Active/Speed LED indicate
NOS Software Support:
NOS Software Support:
DOS Novell ODI
Windows 2000
Windows XP 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows 7 32-bit(64-bit)
Windows 8 32-bit(64-bit)
Windows Server 2008 32-bi(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
Windows Server 2012
Windows Server 2012 R2
Novell Netware 5.x,6.x
Linux 2.4 series kernel and 2.6.x and 3.x
FreeBSD 7.x or most of the FreeBSD
OS 8 or laster
SCO Open Server
UnixWare / OpenUnix 8
Sun Solaris x86
OS Independent
