NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module

NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module thumbnail-1
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module thumbnail-2
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module thumbnail-3
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module thumbnail-4
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module thumbnail-5
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module photo-1
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module photo-2
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module photo-3
NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module photo-4

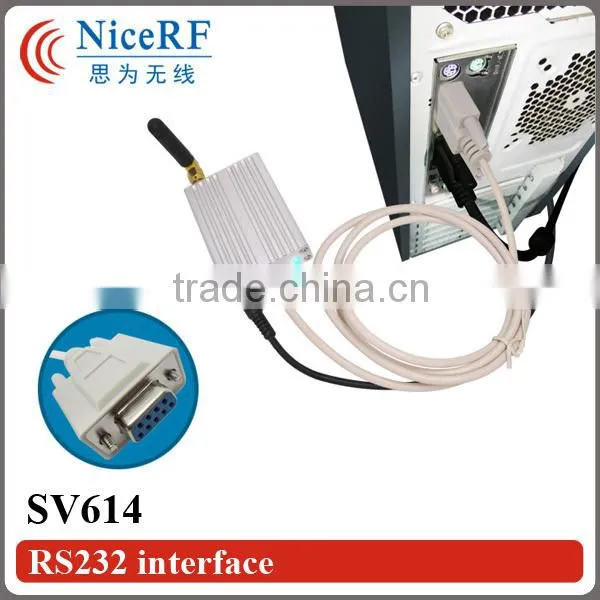

NiceRF SNR614 Long Range Network Node Module RS232 Port rf Module photo-5
US$ 36 - 40 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NiceRF
Model Number:
SNR614
Contact Supplier Request Quote Chat Now
NiceRF Wireless (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NiceRF
Model Number SNR614

NiceRF SNR614 long range network node module RS232 port rf module



NiceRF SNR614 long range network node module RS232 port rf module



Product Description



SNR614 is highly integrated, RS232 port radio network node module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 100mW output power to ensure longer RF range and high link quality. SNR654 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SNR654 wildly deployed in many fields and applications.



Specifications



Parameter

Min.

Typ.

Max.

Unit

Conditions

Operation conditions

Supply Voltage

4.5

5.0

5.5

V



Operating

Temperature

-40

25

+85

°C



Current consumption

RX Current



33



mA



TX current



95



mA

@20dBm

RF parameter

Frequency

414.92

433.92

453.92

MHZ

@433MHZ

470.92

470.92

509.92

MHZ

@470MHZ

849.92

868.92

888.92

MHZ

@868MHZ

895.92

914.92

934.92

MHZ

@915MHZ

Air data rate

1.2

9.6

38.4

Kbps

GFSK

Output power

-1

/

20

dBm

Setting by software

Sensitivity



-121



dBm

@1.2kbps





Feature:
*1400m RF line-in-sight distance @1.2kbps
*433/470/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*RS232 interface
*antenna match automatically and bi-direction switch control
*Support Serial port parameter setting
*Sensitivity: -121 dBm
*Max output power:100 mW
*Voltage:4.5~5.5 V
*Temperature:-40 ~ +85 °C


Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control



 NiceRF SNR614 long range network node module RS232 port rf module





NiceRF SNR614 long range network node module RS232 port rf moduleNiceRF SNR614 long range network node module RS232 port rf moduleNiceRF SNR614 long range network node module RS232 port rf moduleNiceRF SNR614 long range network node module RS232 port rf module







Related Products
Product type
Product
Seal
Interface
MCU
Frequency
Power
Sensitivity
Voltage

Distance

(Meter)

Volume

(mm)
(MHz)
(dBm)
(V)

Wireless data

transceiver



Wireless network

transceiver

 SV610

Module

only

 TTL Yes 433/470/868/915 100 mw -121 2.8~6.0  1400 26.8*16*2.4
SNR610 -1~+20dBm
SV611

shielding

case

 TTL Yes 433/470/868/915 100 mw -121 2.8~6.0(TTL) 1400 43.25*26.45*9.4
SNR611 RS232 -1~+20dBm 4.5~5.5V(232)
  RS485   4.5~5.5V(485)
SV612 Aluminum TTL Yes 433/470/868/915 100 mw -121 2.8~6.0(TTL) 1400 62.5*43.2*14.3
SNR612 RS232 -1~+20dBm 4.5~5.5V(232)
  RS485   4.5~5.5V(485)
SV613 Aluminum USB Yes 433/470/868/915 100 mw -121 4.5~5.5 1400 62.5*43.2*14.3
SNR613 -1~+20dBm
SV614 Aluminum RS232 Yes 433/470/868/915 100 mw -121 4.5~5.5 1400 62.5*43.2*14.3
SNR614 -1~+20dBm
SV650

shielding

case

 TTL Yes 433/470/868/915 500 mw -121 3.3~7.5 1400 38*20*4
SNR650 485 20~27dBm
SV651

shielding

case

 TTL Yes 433/470/868/915 500 mw -121 2.8~6.0(TTL) 3000 50.4*39*7.6
SNR651 RS232 20~27dBm 4.5~5.5V(232)
  RS485   4.5~5.5V(485)
SV652 Aluminum TTL Yes 433/470/868/915 500 mw -121 2.8~6.0(TTL) 3000 62.5*43.2*14.3
SNR652 RS232 20~27dBm 4.5~5.5V(232)
  RS485   4.5~5.5V(485)
SV653 Aluminum USB Yes 433/470/868/915 500 mw -121 4.5~5.5 3000 62.5*43.2*14.3
SNR653 20~27dBm
SV654 Aluminum RS232 Yes 433/470/868/915 500 mw -121 4.5~5.5 3000 62.5*43.2*14.3
SNR654 20~27dBm
SV6202 Aluminum TTL Yes 433/470/868/915 2 W -121 4.5~6.5(TTL) 5000 62.5*43.2*14.3
SNR6202 RS232 13~33dBm 4.5~5.5(232)
  RS485   4.5~5.5(485)
SV6300 Aluminum TTL Yes 433/470/868/915 3 W -121 9~18 6000 93*84*26
SNR6300 RS232 15~35dBm
  RS485
SV6500 Aluminum TTL Yes 433/470/868/915 5 W -121 9~18 8000 93*84*26
SNR6500 RS232 30~37dBm
  RS485
