Specifications

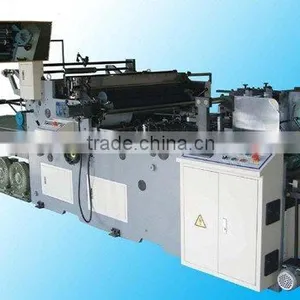

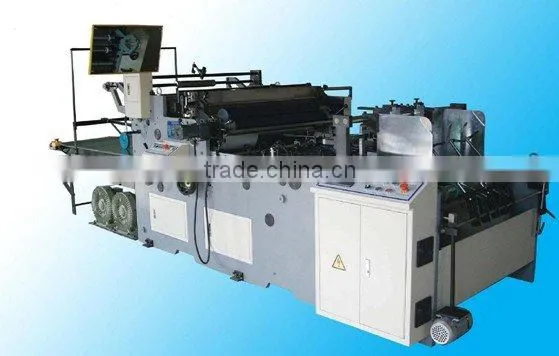

STC1080 Auto window patching MachineSTC1080 Auto window patching Machine
single stream; dual streams to be made on demand
Features:
Feeding: Lower friction feeding belts adopt American Ever-power deep notching belts;
· Suction feeding belts adopt German Siegling belts.
· Mechanical driving chain is from Japan Choho. About 50% key bearing adopt Japan NSK bearings.
· Key buttons and contactors use Shinelder.
· Man-machine interface touch-screen is from Taiwan WeinView.
· PLC and frequency converter are from Taiwan Delta.
· All photoelectrical sensors are from Japan Omron.
· Motor adopt Taiwan TECO inverter speed variable motor.
· 95% parts in control system are imported.
· Push lays for registration;
· Flexo die for glue application;
· Accurate film-cutting;
· Machine frame adopts 30mm steel plate with heat treated and is produced by CNC machines.
· Cylinder sheeting knife:The cylinder sheeting knife use quality alloy steel with special heat treatment to extend its usage life. This new sheeting system replaced the old scissor cutting to film feeding accuracy. By means of stepless speed variation, different film cutting length can be achieved. This will be more stable and reliable.
· Glue application roller: It is independently rotary. It can be pulled outside of the machine body. When machine stops, the glue application roller will keep rotating by its independent motor to keep the glue from solidifying onto its surface. When cleaning, the roller can be pulled out for easy access to save time and operator energy.
Intermittent film slitting system (optional):
This system is specially for partly slitting or constant slitting of the film such as the slit of the film on tissue box and etc. Slitting length and position can be adjustable easily. It works reliably without deflection.
Technical specifications
Max.Sheet size: 1080X650mm
· Min.Sheet size: 160X80mm
· Max.Patching size: 780X600mm
· Min.Patching size: 40X40mm
· Film thickness: 0.05-0.2mm
· Max.Mechanical speed: 7000 pcs/h
· Substrate:
carton: 200-1000gsm
corrugated board: less than or equal to 3.0mm
· Total power: 10kw
· Voltage: 380V/50Hz
· Machine weight: 2.8 tons
· Overall machine dimension: 4958X1960X1600mm (LxWxH)
