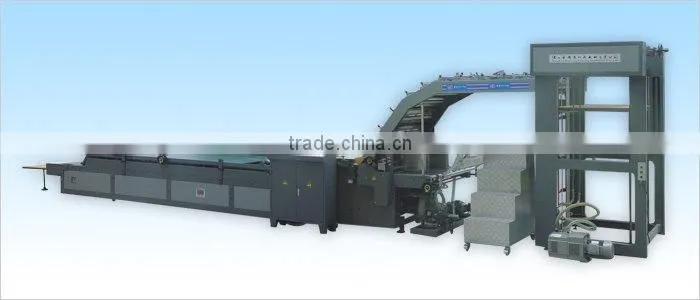

FMZ Series Fully Automatic Flute Laminating machineFMZ Series Fully Automatic Flute Laminating machine
Features:
1. automatic feeding for top sheet and bottom sheet
2. frequency-converting but no-stop of the machine, the main electrical control components adopt imported famous brand products, which ensures the electrical control system correct and stable
3.elastic front register positioning, the bottom sheet does not exceed the top one, the front-and-back distance between the top sheet and the bottom sheet can be adjusted.
4. suitable for laminating bottom cardboard more than 300g/m² with top paperboard, laminating paperboard with A/B/C/D/E flute corrugated cardboard, and laminating corrugated board with corrugated board
5. when laminating flute B corrugated cardboard and its length is more than 800mm, the lengthened movable pressing part is optional. When laminating paperboard with paperboard, pressure-adjustable pressing part is optional.
Technical specifications
Model |
ZTM-1000E |
ZTM-1300 |
ZTM-1450E |
Max sheet size(mm) |
1000×1100 |
1300×1100 |
1450×1100 |
Min sheet size(mm) |
320×450 |
320×450 |
320×450 |
Total Power(kw) |
12 |
12 |
13 |
Weight of top paperboard ( g/m² ) |
≥ 200g /m² |
≥ 200g /m² |
≥ 200g /m² |
Laminating tolerance(mm) |
±1.5 |
±1.5 |
±1.5 |
Speed(m/min) |
0-100 |
0-100 |
0-100 |
Weight(t) |
10 |
12 |
15 |
Measurement(mm) |
10500×1570×2500 |
10500×1870×2500 |
10500×2100×2500 |
