Specifications

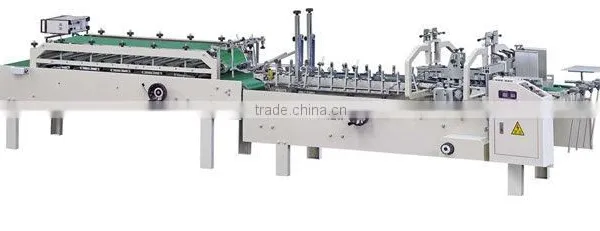

SHH Automactic Folder GluerSHH Automactic Folder Gluer
Features:
SHH belongs to economic type product,with strong versatility,broad usage and flexible debug.It can paste various boxes,such as the medicine box and wine box etc. Small box can be pasted for over three thousand, from paper feeding automatically, counting, polishing, gluing, folding, pressing, conveying to collection. Many functions can meet your requirement only shaking the handwheel, possess the humanity design, especially for present packing industry due to mumerous businesses, small volume and short delivery times and give users great convenience while changing the paper box. It is the essential equipment in packing printing industry.
Technical specifications
Model |
A longest |
A shortest |
B widest |
B narrowest |
C narrowest |
D narrowest |
F narrowest |
|
SHH-800 wide belt |
700mm |
70mm |
540mm |
110mm |
8mm |
70mm |
51mm |
|
SHH-1000 wide belt |
700mm |
70mm |
740mm |
110mm |
8mm |
70mm |
51mm |
|
SHH-1200 wideblet |
700mm |
70mm |
790mm |
110mm |
8mm |
70mm |
51mm |
|
SHH-1200 wideblet |
700mm |
70mm |
540mm |
75mm |
8mm |
70mm |
35mm |
Characteristics:
|
Linear velocity
|
0~220m/min
|
|
Suitable paper quality
|
220~800g/m² cardpaper
|
|
Paste box basic form
|
One-side edge pastes, two-side edge pastes.
|
|
Feeding way
|
Automatically and continuously feeding
|
|
Adhesive
|
Solute type
|
|
Needed power
|
AC220V 3 KW
|
|
Weight
|
1500KG
|
|
Overall Size
|
5300×8200(1050)(1250)×1300mm
|
|
The scope of Count
|
0~999999
|
1,Continuously and automatically paper feeding.
2,One side as well as two sides all can be pasted.
3,The fold part can be adjusted to one step to position.
4,The gluing part can be adjusted to one step to position.
5,The Press and delivery part can move front and back to one step to position(especially Convenience to long wine box).
6,Paper feeding, folding and pressing are divided into the stepless frequency speed control to one step to position.
7,The microcomputer photoelectricity count is accurate.
8,Economic and flexible.
