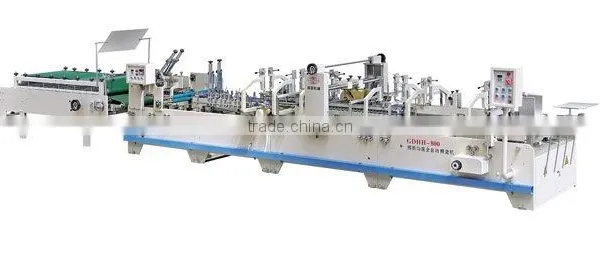

GDHH Crash-lock Bottom Automatic Folder GluerGDHH Crash-lock Bottom Automatic Folder Gluer
Features:
GDHH-800 Paste box machine belongs to the equipment with four-folded/edged-bottom,possesses the features of high speed,reasonable structure and convenient and flexible operation etc.It is suitable for the paste process,such as the edged-medicine box,wine box,cosmetic box etc.As well as pasting the paper box without edged-bottom.
Technical specifications
GDHH-800
Type of boxex |
(Amax)
|
(Amin)
|
(Bmax)
|
(Bmin)
|
(Cmin)
|
(Dmin)
|
(Fmin)
|
|
No-edged bottom box
|
700mm
|
70mm
|
620mm
|
110mm
|
8mm
|
70mm
|
51mm
|
|
Edgde Bottom box
|
700mm
|
160mm
|
480mm
|
180mm
|
9mm
|
90mm
|
85mm
|
GDHH-1200
Type of boxex |
(Amax)
|
(Amin)
|
(Bmax)
|
(Bmin)
|
(Cmin)
|
(Dmin)
|
(Fmin)
|
|
No-edged bottom box
|
700mm
|
70mm
|
840mm
|
110mm
|
8mm
|
70mm
|
51mm
|
|
Edgde Bottom box
|
700mm
|
160mm
|
790mm
|
180mm
|
9mm
|
90mm
|
85mm
|
Characteristics:
|
Max linear velocity
|
220m/min
|
|
Suitable paper quality
|
220~800g/m² Cardpaper and E wave corrugated paper.
|
|
Paste box basic form
|
One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste
|
|
Way of folding in reverse
|
One and three fold 90º ,two and four fold 180º
|
|
Feeding way
|
Automatically and continuously feeding
|
|
Adhesive
|
Solute type
|
|
Needed power
|
6.5KW 380V
|
|
Overall Size
|
8800×1100(1300)×1350mm
|
