Specifications

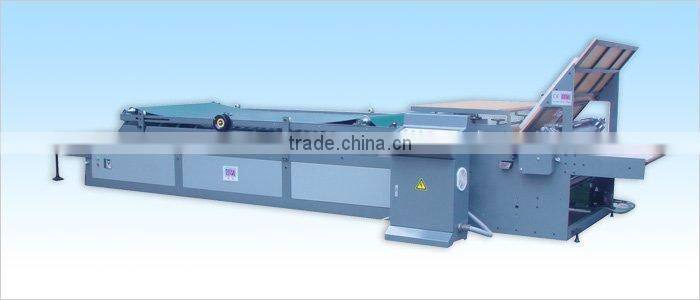

TM-C Series Manual Flute Laminating Machine(Double Labors)TM-C Series Manual Flute Laminating Machine(Double Labors)
Features:
The sheets are fed by two labors.
With flexible front positioning which avoid bottom sheet exceeding the top sheet and adjustable fore-and-aft lamination between bottom sheet and top sheet.
Suitable for lamination of paperboard to paperboard, and paperboard to A/B/C/D/E flute corrugated cardboard.
Movable pressing part is alternative for lamination of corrugated cardboard thicker than Flute-B. pressure-adjustable pressing part is alternative for lamination of paperboard to paperboard.
Technical specifications
Model |
TM-1000C |
TM-1300C |
TM-1450C |
Max sheet size(mm) |
1000 × 1100 |
1300 × 1100 |
1450 × 1100 |
Min sheet size(mm) |
320 × 450 |
320 × 450 |
320 × 450 |
Total Power(kw) |
6 |
6 |
6 |
Speed(m/min) |
0-60 |
0-60 |
0-60 |
Weight(t) |
2.1 |
2.5 |
2.9 |
Measurement(mm) |
7065 × 1570 |
7065 × 1870 |
7065 × 2100 |
× 1400 |
× 1400 |
× 1400 |
