Specifications

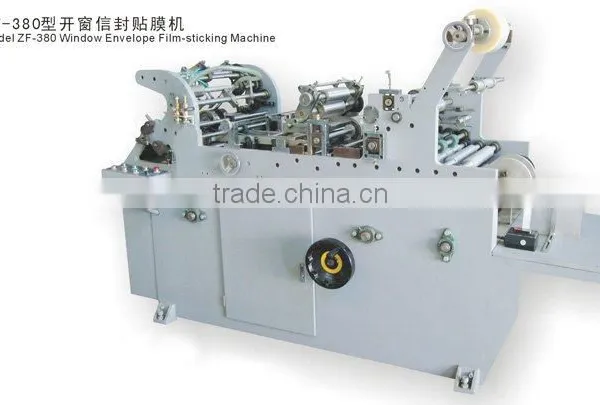

ZF-380 Window Envelope FilmZF-380 Window Envelope Film
Features:
ZF-380 Window Envelope Film-sticking Machine is applicable for film sticking process after windows are cut on the Chinese or western style envelopes.
Applying air sucking paper from the bottom of paper pile and feeding mechnism. It can faci- litate the supply of paper without stop. It can accurately pull the pin out and locate. Gluing mode of turning wheel guarantees the evenness of gluing and controls the glue amount. The traverse blade can cut the film stably and reliably. It is designed with a fine adjust- ment device, and applicable for the production of film-sticking envelopes of simple spec. volume or multiple spec. small-lot.
Technical specifications
Operation speed |
4000-7000pcs/h |
Applicable envelope specification |
150×120-300×450mm(1-7#) |
The window specifications of sticking film |
60×40-180×200mm |
The thickness of the film |
0.03-0.3mm |
Applicable paper grammage |
80-120g/sqm |
Power of main machine |
1.5kW |
Power of air pump |
2.2kW |
Weight of complete machine |
1200kg |
External dimensions |
2200×1000×1400mm |
