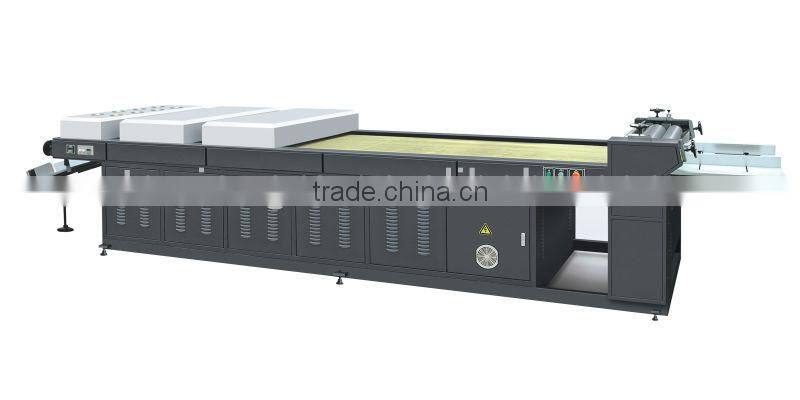

Calendering Machine-YG1400
- Shanghai
You May Like
Product Details
| Type | Other, Coating machine | Place of Origin | Shanghai, China | |
| Brand Name | TOWIN | Model Number | YG1400 |
Product Description
Specifications
Calendering machine1. High efficiency and stability
2. High precise
3. Perfect result
YG SERIES CALENDERING MACHINE
Application:
High-grade printed paper coated by coating machine, then hot-pressure processed by this machine, the paper will be much shiner.
Features:
1. After being calendered, paper will be smooth and its thickness will remain, and get the same effect of perfect cardboard. The calender belt of this machine adopts grinded imported hard steel.
2. Auto feeder and gas heating system can be optional.
3. With strip wandering grurds to protect expensive steel.
Technical Parameter:
Model: | YG-1000 | YG-1200 | YG-1400 |
Specification of calender belt(mm): | 1000X12000 | 1150X12000 | 1240X12000 |
Max.paper width(mm) | 950 | 1100 | 1200 |
Speed: | 1-26m/min (Infinite speed variation)
| ||
Working pressure(Mpa): | 8-15
| ||
| Temperature: | Roon temperature-150oC Auto control | ||
| Electric heat: | 36kw | ||
Power: | 3kw | 3kw | 4kw |
Weight: | 3t | 3.5t | 4.5t |
Dimension(mm) | 7000X1860X1830 | 7000X2080X1830 | 7000X2260X1830 |
