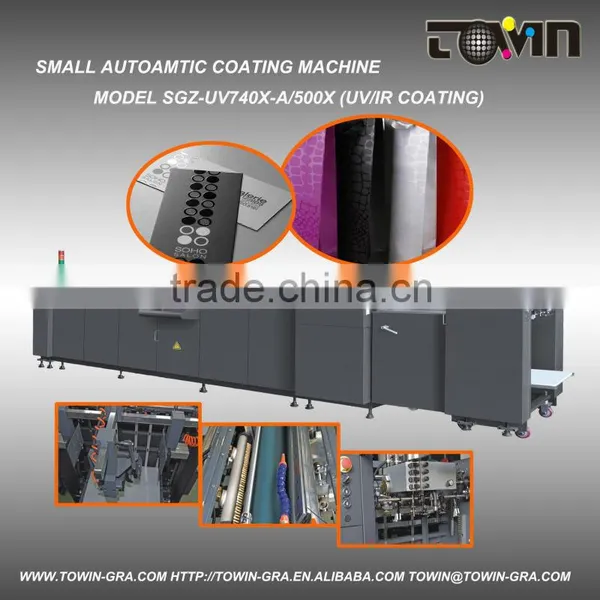

Automatic UV and IR coating machine

Specifications

UV and IR coating machine
1.Suitable for full UV and IR coating.
2.Best cost effective.
3.Easy operation.
4.Stable

Automatic UV and IR coating machine

Applications

The machine is used to do uv coating and water-based coating onto carton to improve quality of your printed job.

Features

1. Good for coating onto small size paper sheet and ideal for high volume production with high quality;
2. Compact design, easy operation and energy saving and flexibility.
3. Standard configuration are auto feeding, reversing coating system, air knife, absorption conveying system, pneumatic lift uv curing chamber and auto stacker.
4. Convenient to clean and maintain coating roller thanks to special designed movable feeder.
5. Auto feeder and auto stacker could be put or taken off upon customers request to save cost and give more options.

Technical specifications

Model	SGZ-UV500X-A	SGZ-UV7400X-A
Max. coating size	510×355mm/20.0’’X13.9’’’’	740×600mm/29.1’’X23.6’’
Min. coating size	280X210mm/11.0’’X8.2’’	280X210mm/11.0’’X8.2’’
Substrate:	80-450gsm	80-450gsm
Max. speed	5000 s/h	5000 s/h
Number of coating roller	3	3
NumberXUV lamps	2X5kw	3X6.5kw
Total power	21kw	31kw
Machine weight	2 tons	2.2 tons
Overall Dimensions	5900×1405×1520mm	5400×1600×1560mm
