Manual Coating Machine-SGS-UI650P

Name: Manual Coating Machine-SGS-UI650P
Brand: TOWIN
SKU: 115356999
Availability: InStock

US$ 10,000 - 30,000 MOQ: 1 Unit

Key Specifications

Type:

Other, Coating machine

Place of Origin:

Shanghai, China

Brand Name:

TOWIN

Shanghai Towin Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Coating machine

Place of Origin Shanghai, China

Brand Name TOWIN

Model Number SGS-UI650P

Specifications

Coating machine
1.With IR drying and UV curing systems
2.Low investment & small location
3.High efficiency
4.Perfect result

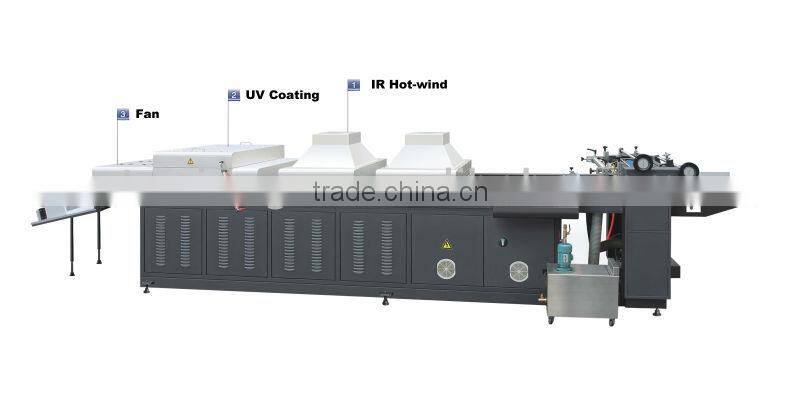

SGS-UI/V-P MANUAL COATING MACHINE

Features:

1. SGS-UI model is configurated with IR drying and UV curing systems, which is optional for user's demand.

SGS-UV model machine is only suits for UV coating

2. Low investment, small location and high efficiency. Power-removing section, ground coating section are optional.

3. Control of NC oil reversed.

*Options: air knife system for light paper above 80gsm.

Technical specifications:

Model:	SGS-UV650P	SGS-UV920P	SGS-UV1200P	SGS-UI650P	SGS-UI920P	SGS-UI1200P
Max. width(mm)	650	920	1200	650	920	1200
Max. Speed(pcs/h)	3500	3500	3500	3500	3500	3500
No. X UV Lamp(kw)	5.6KW X 2	8KW X2	9.75 X2	5.6KW X 2	8KW X2	9.75KW X2
No. X IR Lamp(kw)	-------	-------	-------	1KW X9	1.5KW X9	1.8KW X9
Option: Air knife system for light paper above 80gsm
Paper weight(g/m²):	250-800	250-800	250-800	250-600	250-600	250-600
Dimension(mm)	6885X1500X1300	6885X1700X1300	6885X1900X1300	6885X1500X1300	6885X1700X1300	6885X1900X1300
Weight(t)	2.0	2.5	2.7	2.1	2.6	2.8
