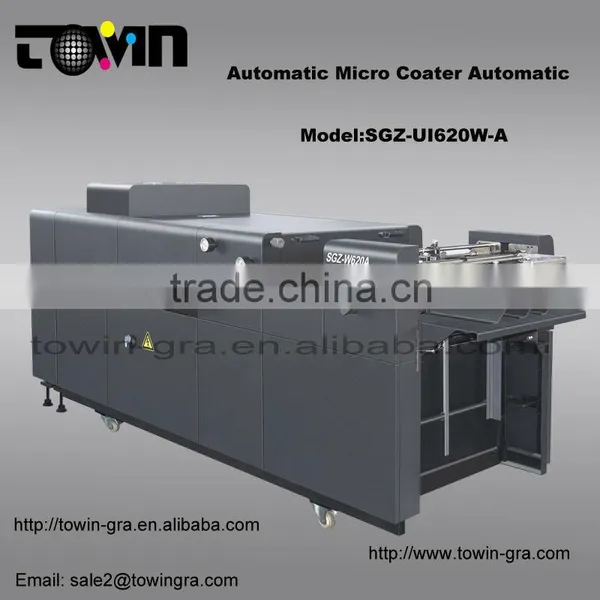

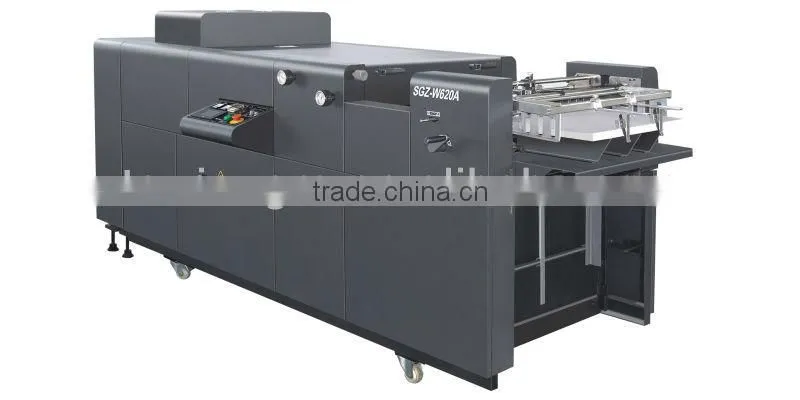

Automatic Micro Coater Automatic-SGZ-UI620W-A

Automatic Micro Coater Automatic-SGZ-UI620W-A photo-1
US$ 30,000 - 60,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Coating machine
Place of Origin:
Shanghai, China
Brand Name:
TOWIN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Coating machine
Place of Origin Shanghai, China
Brand Name TOWIN
Model Number SGZ-UI620W-A

Specifications

Coating machine
1. High efficiency and stability
2. High precise
3. Perfect result
4. Micro coater

 SGZ-UI-W-A AUTOMATIC MICRO COATER AUTOMATIC



Application:

This machine is used for coating on the surface of paper, which raises its brightness and plays a role of damp-proof and abrasion-resistance so as to protect colors on the surface of paper. It is suitable for small sized priting product.



Features:

1. Feeder: Multi-point high speed feeding with easy operation & adjustment



2. IR drying: Function for coating with water-based varnish. Far-IR short wave lamp equipped with doubt-layer heat isolation. Good at power saving.



3. UV coating: Three rollers with reverse rotating and variable roller speed ratio can provide the best coating result for customer and customized coating layer thickness. Paper jam auto detection & stop. Air knife for thin paper (above 80gsm) is optional.



4. UV curing: Interated curing box with reflector & fan cooling system inside. Stabilized temperture within the curing box. High efficiency & quality while running in high speed.



5. Stacker: Pneumatic jogger with programmable jogging frequency, can ensure order delivery durring high speed production.



Technical Parameter:

Model:

SGZ-UI620W-A

Max. Sheet Size(mm)

450X620

Min. Sheet Size(mm)

210X290

Max. Speed(pcs/h)

5000

Sheets weight(gsm)

80-350

UV Lamp power

5.6KW x 2

IR Lamp power

1.8KW

Consumption(kw)

18

Weight(kgs)

1200

Dimension(mm)

3300X1200X1250
