Help CenterThermal Film Laminating Machine
Related Products
Specifications
thermal film laminating machine1Thermal film thermal laminating
2 Water based film laminating
3 Auto sheeting after laminate

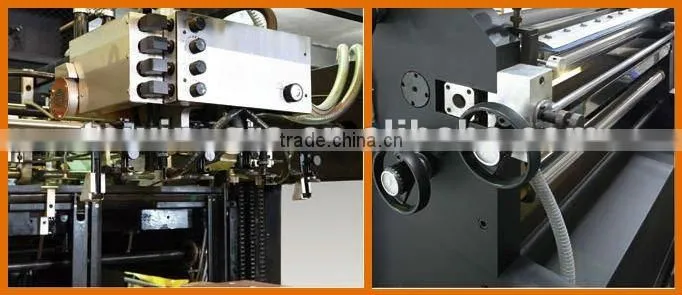

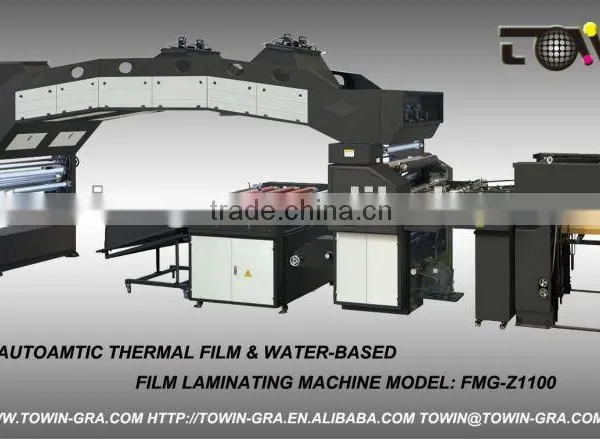

Thermal film laminating machine
Applications:
The machine is used to apply thermal film or water based film onto paper to realize thermal film and water-based film lamination.
Features :
Technical specifications:
¨Max.sheet size: 1040X740mm
¨Min.sheet size: 420X400mm
¨Machine speed: 5-40m/min
¨Sheet substrate: 128-500gsm
¨Total power: 48kw
¨Machine weight: 5000kg
¨Machine size: 8500X2000X2800mm (LxWxH)
Features:

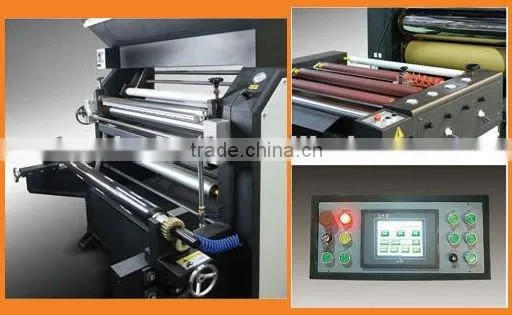

¨PLC controller and touch screen are used in electrical system. Convenient operation. Inverter is used for speed regulation
¨Infinite speed regulator is adopted in automatic feeder suitable for different paper weight. Vacuum pump free form maintenance, non-lubricator and low noise is used in this machine.

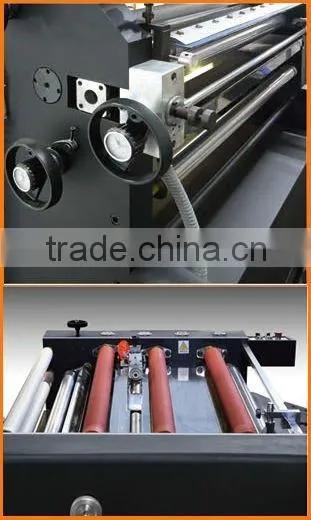

¨Big-diameter laminating roller, with oil inside of automatic temperature control, even temperature distribution is designed
¨High-precise gluing, coating and metering chrome-plated roller to keep glue even can be synchronous with main machine speed, also can be different speed separately. Film pressing will be automatically pushed away when main machine stops
¨Pneumatic device is adopted for slitting and punching. Vibrating delivery table is used
¨Air shaft is used for film roll unwinding. Air compressing clutch is adopted for film tension control
