2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna

2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna thumbnail-1
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna thumbnail-2
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna thumbnail-3
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna thumbnail-4
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna photo-1
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna photo-2
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna photo-3
2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna photo-4
US$ 0.2 - 1.5 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NiceRF
Model Number:
SW433-TH32DN
Contact Supplier Request Quote Chat Now
NiceRF Wireless (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NiceRF
Model Number SW433-TH32DN

2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna

Product Description

  SW433-TH32DN is a nickel plated spring antenna, It is a dedicated antenna which designed for a wireless communication system (433MHz).It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.




Features:

*Frequency range: 433 MHz (+ / -8)

*VSWR: <= 1.5
*Input impedance: 50 Ω
*Maximum power: 10 W
*Gain: 2.15 dBi
*Weight: 1g
*Height:32+ / -1 mm (25T)
*Antenna Color: nickel plated
*Interface Type: welded directly

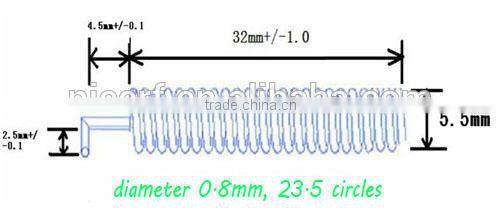

Size:

2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna

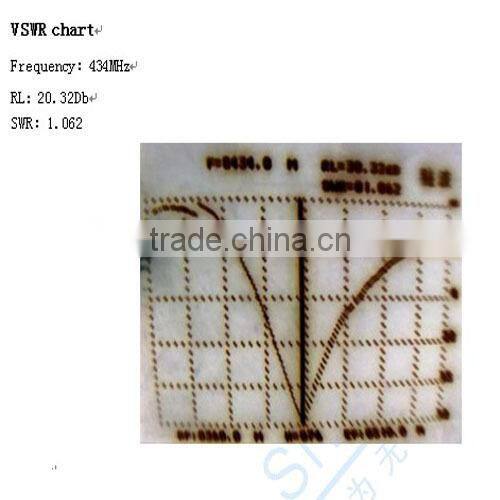

VSWR Chart

2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna

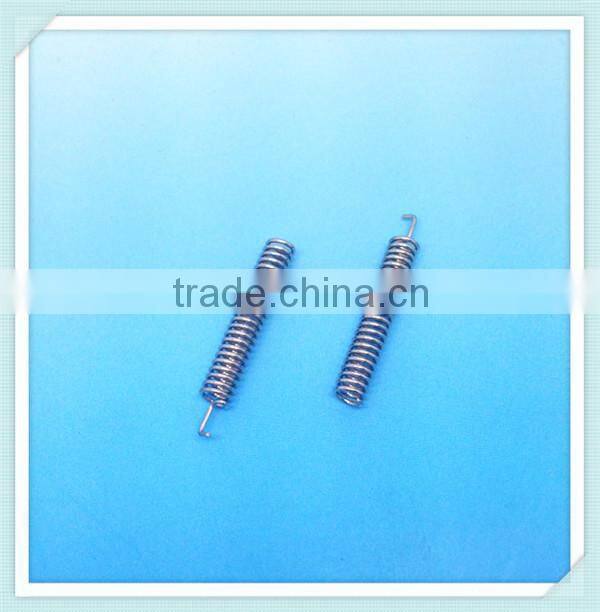

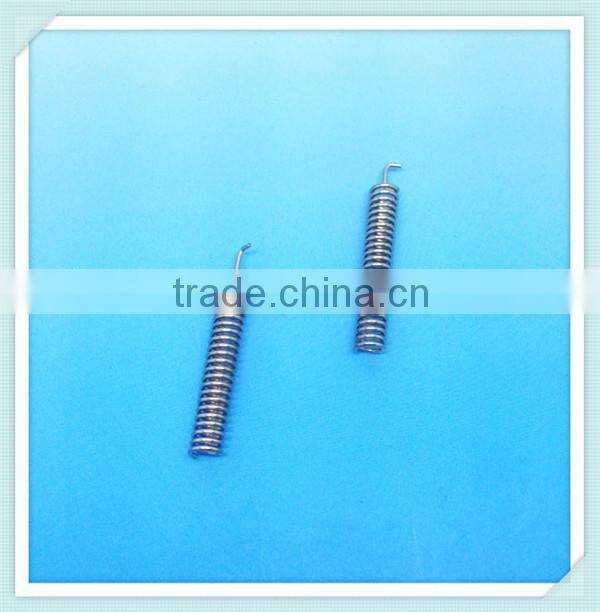

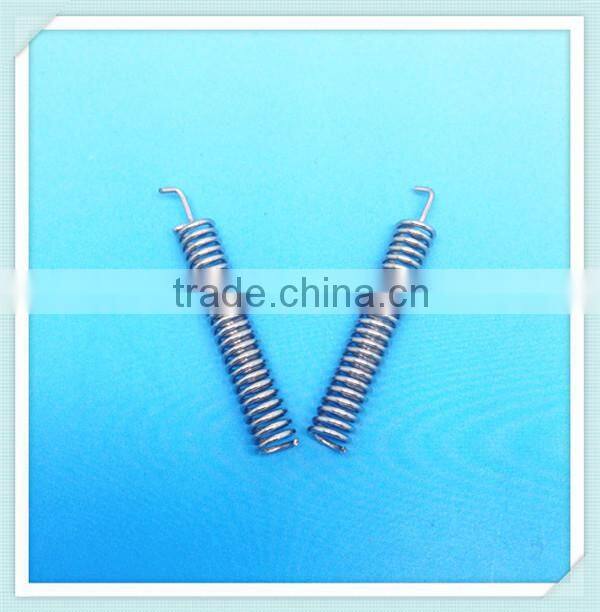

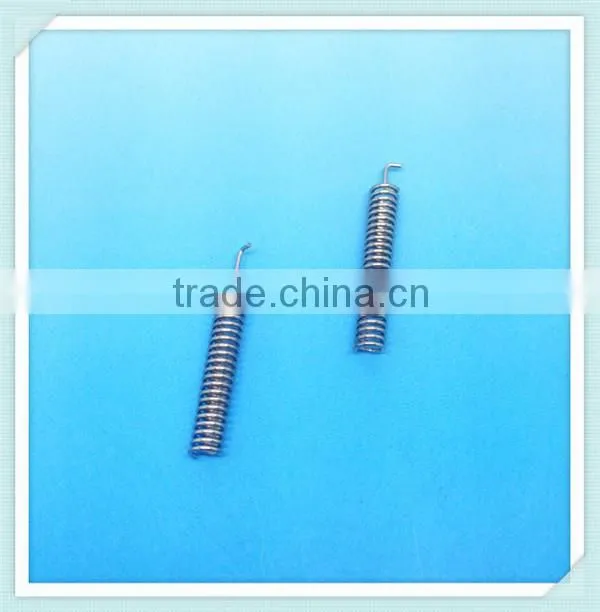

Product show:

2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna2015 SW433-TH32DN Nickel-plated Spring Antenna 2.15dBi High Gain 433MHz Antenna

Related Products

Product type Product Seal  Interface With MCU Frequency Modulation Power Sensitivity Voltage Sleep current RX TX Speed Channels Visible Distance in open area (M) Volume(mm)
(MHz) (dBm) (V) (kpbs)
wireless data transceiver SV610 Module only Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0  < 5 uA 25 mA 95mA @ 20dBm 1.2~38.4  40 1400 26.8*16*2.4
  SNR610 -1~+20dBm
  SV611 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  95mA @ 20dBm 1.2~38.4  40 1400 43.25*26.45*9.4
  SNR611 Serial port 232 -1~+20dBm 4.5~5.5V(232) 32.7 Ma @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
wireless network transceiver SV612 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
  SNR612 Serial port 232 -1~+20dBm 4.5~5.5V(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
  SV613 Aluminium USB serial port Yes 433/470/ 868/915 GFSK 100 mw -121 4.5~5.5 < 5 uA 26 mA 95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
  SNR613 -1~+20dBm
  SV614 Aluminium RS232 serial Yes 433/470/ 868/915 GFSK 100 mw -121 4.5~5.5 < 5 uA 33 mA 95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
  SNR614 -1~+20dBm
  SV650 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 3.3~7.5 < 5 uA 25mA @ TTL 350 mA @ 27dBm 1.2~38.4 40 1400 38*20*4
  SNR650 Serial port 485 20~27dBm 34 mA @ 485
  SV651 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  350 mA @ 27dBm 1.2~38.4 40 3000 50.4*39*7.6
  SNR651 Serial port 232 20~27dBm 4.5~5.5V(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
  SV652 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
  SNR652 Serial port 232 20~27dBm 4.5~5.5V(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
  SV653 Aluminium USB serial port Yes 433/470/ 868/915 GFSK 500 mw -121 4.5~5.5 < 5 uA 26 mA 350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
  SNR653 20~27dBm
  SV654 Aluminium RS232 serial port Yes 433/470/ 868/915 GFSK 500 mw -121 4.5~5.5 < 5 uA 33 mA 350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
  SNR654 20~27dBm
  SV6202 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 2 W -121 4.5~6.5(TTL) < 5 uA 25 mA @ TTL  900 mA @ 33dBm 1.2~38.4 40 5000 62.5*43.2*14.3
  SNR6202 Serial port 232 13~33dBm 4.5~5.5(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5(485) 34 mA @ 485
  SV6300 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 3 W -121 9~18 < 5 uA < 30 mA < 0.6 A 1.2~38.4 40 6000 93*84*26
  SNR6300 Serial port 232 15~35dBm
    Serial port 485
  SV6500 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 5 W -121 9~18 < 5 uA < 30 mA < 1.8 A 1.2~38.4 40 8000 93*84*26
  SNR6500 Serial port 232 30~37dBm
    Serial port 485
Front-end transceiver RF4421 Module only SPI No 433/868/915 FSK   -105 2.2~3.8 0.3 uA 11 mA 22 mA @ 7dBm 115.2(digital mode) - 300 17*16.5*2
Customizable 256(Simulation Mode)
RF4431 Module only SPI No 433/868/915 FSK 20 mw -118 1.8~3.6  < 1 uA 18.5 mA 35 mA @ 13dBm 0.123~256  - 600 17*16.5*2
Customizable GFSK
  OOK
RF4432 Module only SPI No 433/868/915 FSK 100 mw -121 1.8~3.6  < 1 uA 18.5 mA 85 mA @ 20dBm 0.123~256  - 1400 17*16.5*2
Customizable GFSK
  OOK
RF4432PRO With shielding case SPI No 433/868/915 FSK 100 mw -121 1.8~3.6 < 1 uA 18.5 mA 85 mA @ 20dBm 0.123~256 - 1400 17.3*17*2.6
Customizable GFSK
  OOK
RF4432F27 With shielding case SPI No 433/868/915 FSK 500 mw -122 3.3~7.0  < 3 uA 21 mA 350 mA @ 27dBm 0.123~256 - 2500 38*20*4
Customizable GFSK
  OOK
RF4463PRO With shielding case SPI No 433/868/915 (4)FSK 100 mw -126 1.8~3.6  < 0.1uA 10.7 mA 85 mA @ 20dBm 0.123~1000 - 1800 17.3*17*2.6
Customizable (4)GFSK 13.5 mA
  OOK
  ASK
RF4463F30 With shielding case SPI No 433/868/915 (4)FSK 1 W -126 3.3~7.0  < 2 uA 10.7 mA 550 mA @ 30dBm 0.123~1000 - 3500 38*20*4
Customizable (4)GFSK 13.5 mA
  OOK
  ASK
RF1212 With shielding case SPI No 433/868/915 FSK 12.5 dBm -110 2.1~3.6 < 1 uA 3 mA 25 mA @ 10dBm 0.78~150(@FSK) - 600 17.3*17*2.6
Customizable OOK
RF2401 Module only SPI No 433/868/915 FSK  -20~+10 dBm -115 1.9~3.6 < 0.1 uA 7 mA 36 mA 1.5~72 - 400 13.56*13.8*2
Customizable
ASK STX881 Module only —— No 315/433 ASK 7.5dBm @ 3V - 1.2~13 < 0.01 uA — 20 mA @ 5V,13dBm 0.1~9.6 - According to the power support and the attached decode 12*15.2*5.2
Transmitter module 13dBm @ 5V
  20dBm @ 12V
  STX882 Module only —— No 315/433 ASK 13dBm @ 2.4V - 1.2~6 < 0.01 uA — 34 mA @ 3.3V,15dBm 0.1~9.6 - 12*15.2*5.2
  15dBm @ 3V
  20dBm @ 5V
  STX887 Module only —— No 315/433 ASK 10 dBm @ 3V - 1.8~5.5  < 1 uA — 24.5mA @ 3V 0.1~9.6  - 12*15.2*5.2
  17 dBm @ 5V
  STX888 Module only —— No 315/433 ASK 10 dBm @ 3V - 1.8~5.5  < 1 uA — 24.5mA @ 3V 0.1~9.6 - 12*15.2*5.2
  17 dBm @ 5V
Ask Receiver module SRX882 Module only —— No 315/433 ASK - -110 2.4~5.5  < 2 uA 2.7mA @ 315MHz — 0.1~9.6 - 35*10.4*5
OOK 2.9mA @ 433MHz
SRX887 Module only —— No 315/433 ASK - -110 3.0~5.5  < 1 uA 2.9mA @ 315MHz — 0.1~9.6 - 33.1*9.1*5
OOK 4.0mA @ 433MHz
3D Name Seal Interface With MCU Power Sleep consumption Current Resolution  Pedometer error Applicaton Volume
pedometer module (V)
  STP100 IC set Impulse output No 2.3~3.6 <5 uA 30uA @ 3V 1 ±3% steps @ uniform motion  None-wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP101 IC set Impulse output No 2.3~3.6 <5 uA 30uA @ 3V 1 ±3% steps @ uniform motion  Wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP200 IC set IIC No 2.3~3.6 <5 uA 60uA @ 3V 1 ±3% steps @ uniform motion  None-wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP201 IC set IIC No 2.3~3.6 <5 uA 60uA @ 3V 1 ±3% steps @ uniform motion  Wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP156 module only Impulse output No 2.3~3.6 <3 uA 30uA @ 3V 1 ±5% steps @ uniform motion  3D pedometer product 11.26*11.4*1.8
Type Spring antennas
Frequency band 433 MHz 490 MHz 868 MHz 915 MHz
Antenna name SW433-TH32DN SW433-TH10 SW433-TH22 SW433-TH32 SW490-TH10 SW490-TH14 SW868-TH13 SW915-TH12
Material nickel-plated stainless Copper Golden-plated stainless Copper Copper Copper Copper Copper
VSWR <=1.5 <=1.8 <=1.5 <=1.5 <=1.8 <=1.8 <=1.5 <=1.5
Gain(dBi) 2.15 2.15 2.15 2.15 2.15 2.15 2.15 2.15
Height(mm) 32 10 22 32 10 14 13 12
Type Rubber  antennas
Frequency band 433 MHz
Antenna name SW433-ZT28 SW433-ZT100 SW433-WT36 SW433-WT100 SW433-ZD115 SW433-ZB165 SW433-ZT100DN SW433-WT100DN
Material Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated Nickel-plated Nickel-plated
VSWR <=2.0 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 2.15 3 2.5 3 2.15 3 3 3
Interface form SMA(Build-in) SMA(Build-in) SMA-JW SMA-JW SMA SMA SMA SMA-JW
Height(mm) 28 100 45 100 115 160 100 100
Type Rubber  antennas
Frequency band 409 MHz 450 MHz 470 MHz 490 MHz 868 MHz 915 MHz
Antenna name SW409-ZT100 SW450-ZT100DN SW450-WT100DN SW470-ZT100 SW490-ZT100 SW868-ZT100 SW868-WT100 SW915-ZT100
Material Golden-plated Nickel-plated Nickel-plated Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 3 2.5 3 3 3 3 3
Interface form SMA SMA SMA-JW SMA SMA SMA SMA-JW SMA
Height(mm) 100 100 100 100 100 100 100 100
Type Rubber antenna
Frequency band 915 MHz 880~960NHz 2400 MHz
Antenna name SW915-WT100  SWGPRS-ZT186 SW2400-ZT48  SW2400-WT106 SW2400-ZD115
Material Golden-plated Golden-plated
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 3 2.5 3 3
Interface form SMA-JW SMA SMA/J SMA/JW SMA
Height(mm) 100 186 48 106 115
Type Sucker antenna Yagi antenna
Frequency band 433 MHz 490 MHz 868/915 MHz 2400 MHz 433MHz
Antenna name SW433-XPXM SW433-XP-WP SW433-XP-MAX SW490-XP1M SW868-XP1M SW2400-XP1M SW433-BM-11DB
SW915-XP1M
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 2.15 5.5 3 3 7 11
Interface form SMA-J MCX/J SMA-JW SMA-J SMA-J SMA-J or customize (TNC Male)/SMA/BNC
Height(mm) 126 111 1000 126 126 220 86
Lead wire(M) 1~6m to choose 3m(customizable) 3m/5m 1m(customizable) 1m(customizable) 1m(customizable)
