2015 SW915-TH12 Copper Spring Antenna 2.15dBi High Gain 915MHz Antenna
USD $0.2 - $1.5
/ Piece
2 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | NiceRF | Model Number: | SW915-TH12 |
Product Description
2015 SW915-TH12 Copper Spring Antenna 2.15dBi High Gain 915MHz Antenna
Product Description
SW915–TH12 is a copper spring antenna. It is a dedicated antenna which designed for a wireless communication system (915MHz).It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.
Features:
*Frequency range: 915 MHz (+ / -5)

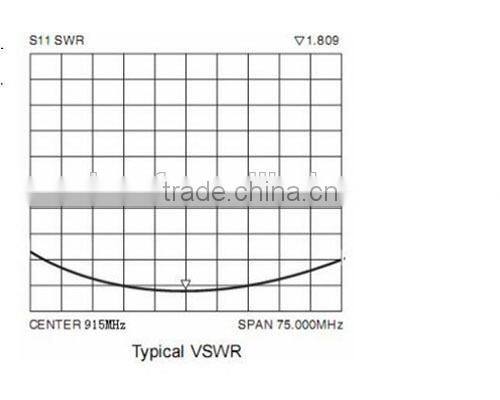

*VSWR: <= 1.5
*Input impedance: 50 Ω
*Maximum power: 5 W
*Gain: 2.15 dBi
*Weight: 1g

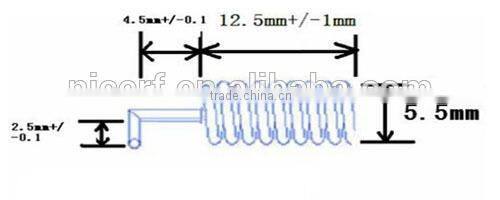

*Height: 12.5 + / -1 mm (9T)
*Antenna Color: Copper color
*Interface Type: welded directly

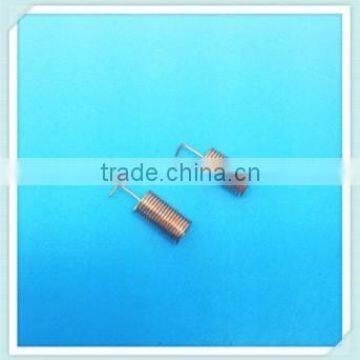

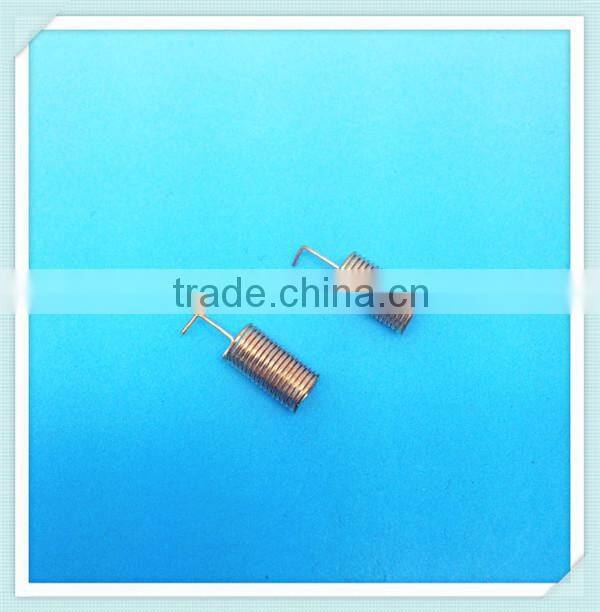

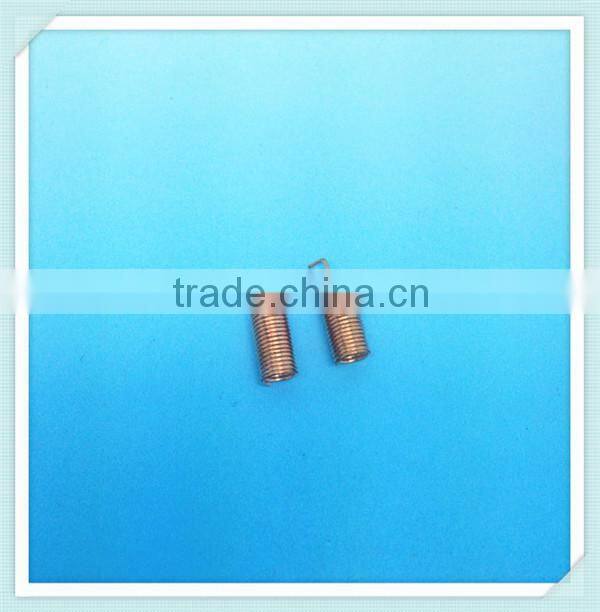

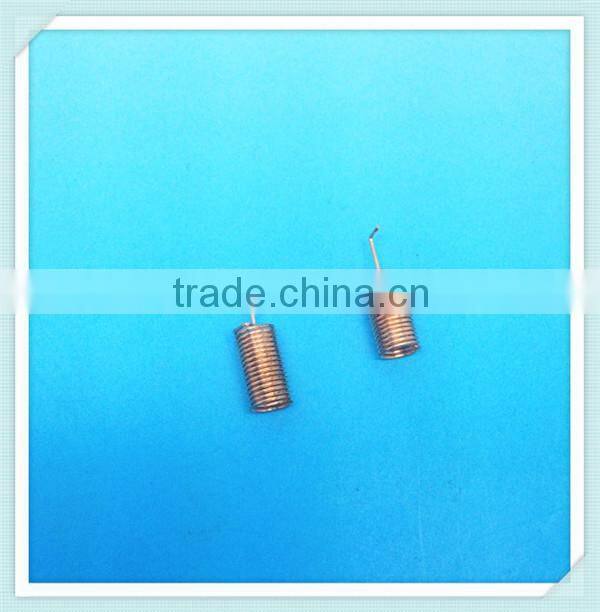

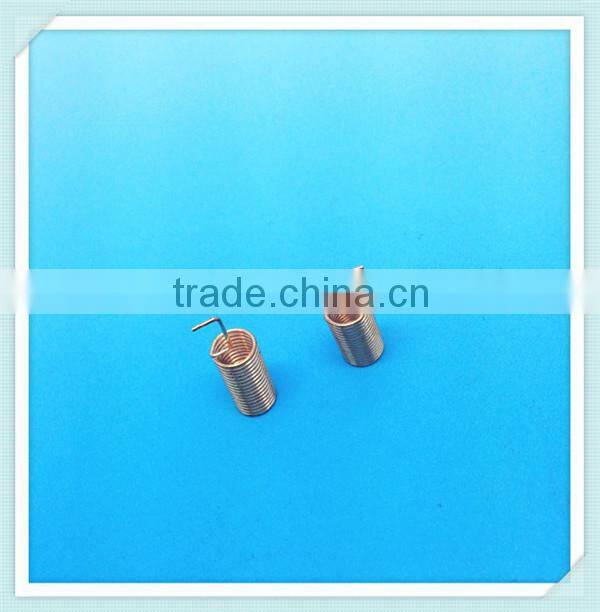

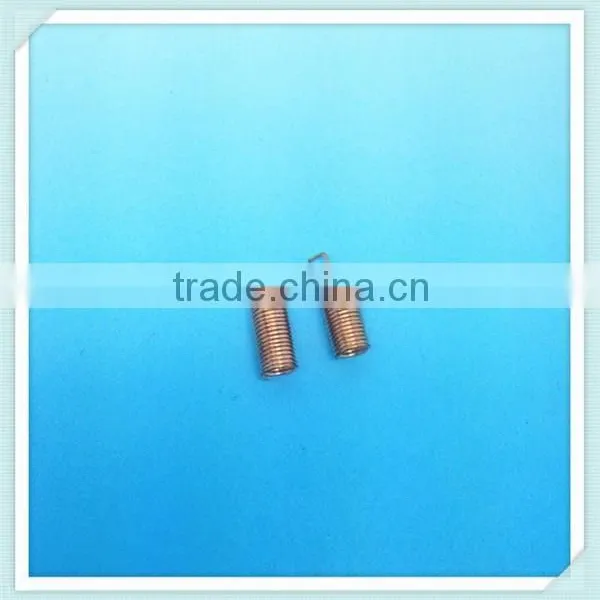

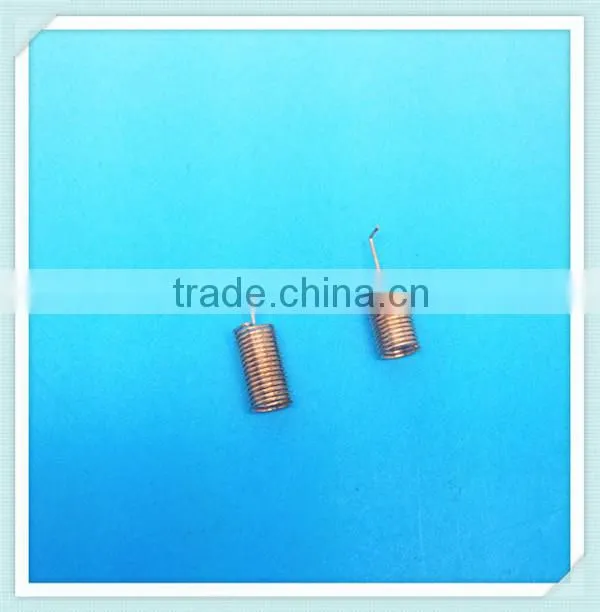

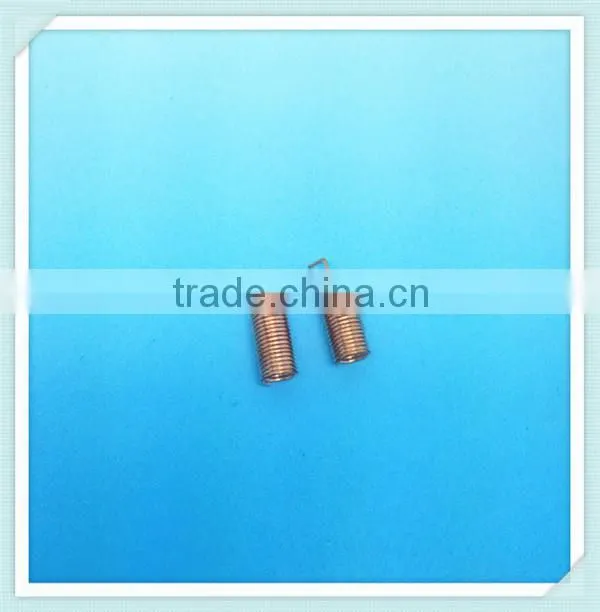

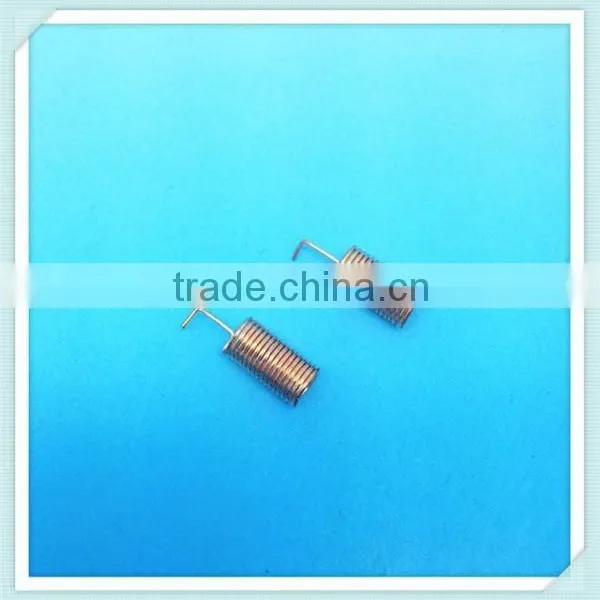

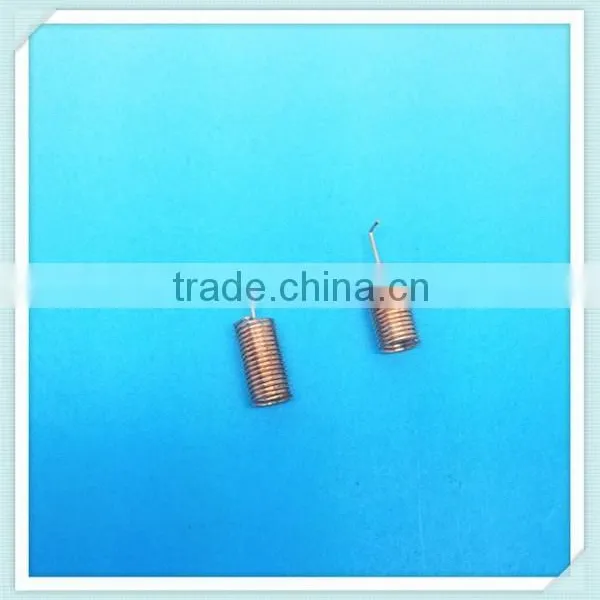

Product show:
Related Products
| Product type | Product | Seal | Interface | With MCU | Frequency | Modulation | Power | Sensitivity | Voltage | Sleep current | RX | TX | Speed | Channels | Visible Distance in open area (M) | Volume(mm) |
| (MHz) | (dBm) | (V) | (kpbs) | |||||||||||||
| wireless data transceiver | SV610 | Module only | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 2.8~6.0 | < 5 uA | 25 mA | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 26.8*16*2.4 |
| SNR610 | -1~+20dBm | |||||||||||||||
| SV611 | With shielding case | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 43.25*26.45*9.4 | |
| SNR611 | Serial port 232 | -1~+20dBm | 4.5~5.5V(232) | 32.7 Ma @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| wireless network transceiver | SV612 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 62.5*43.2*14.3 |
| SNR612 | Serial port 232 | -1~+20dBm | 4.5~5.5V(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| SV613 | Aluminium | USB serial port | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 4.5~5.5 | < 5 uA | 26 mA | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 62.5*43.2*14.3 | |
| SNR613 | -1~+20dBm | |||||||||||||||
| SV614 | Aluminium | RS232 serial | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 4.5~5.5 | < 5 uA | 33 mA | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 62.5*43.2*14.3 | |
| SNR614 | -1~+20dBm | |||||||||||||||
| SV650 | With shielding case | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 3.3~7.5 | < 5 uA | 25mA @ TTL | 350 mA @ 27dBm | 1.2~38.4 | 40 | 1400 | 38*20*4 | |
| SNR650 | Serial port 485 | 20~27dBm | 34 mA @ 485 | |||||||||||||
| SV651 | With shielding case | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 50.4*39*7.6 | |
| SNR651 | Serial port 232 | 20~27dBm | 4.5~5.5V(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| SV652 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 62.5*43.2*14.3 | |
| SNR652 | Serial port 232 | 20~27dBm | 4.5~5.5V(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| SV653 | Aluminium | USB serial port | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 4.5~5.5 | < 5 uA | 26 mA | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 62.5*43.2*14.3 | |
| SNR653 | 20~27dBm | |||||||||||||||
| SV654 | Aluminium | RS232 serial port | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 4.5~5.5 | < 5 uA | 33 mA | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 62.5*43.2*14.3 | |
| SNR654 | 20~27dBm | |||||||||||||||
| SV6202 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 2 W | -121 | 4.5~6.5(TTL) | < 5 uA | 25 mA @ TTL | 900 mA @ 33dBm | 1.2~38.4 | 40 | 5000 | 62.5*43.2*14.3 | |
| SNR6202 | Serial port 232 | 13~33dBm | 4.5~5.5(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5(485) | 34 mA @ 485 | ||||||||||||||
| SV6300 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 3 W | -121 | 9~18 | < 5 uA | < 30 mA | < 0.6 A | 1.2~38.4 | 40 | 6000 | 93*84*26 | |
| SNR6300 | Serial port 232 | 15~35dBm | ||||||||||||||
| Serial port 485 | ||||||||||||||||
| SV6500 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 5 W | -121 | 9~18 | < 5 uA | < 30 mA | < 1.8 A | 1.2~38.4 | 40 | 8000 | 93*84*26 | |
| SNR6500 | Serial port 232 | 30~37dBm | ||||||||||||||
| Serial port 485 |
| Front-end transceiver | RF4421 | Module only | SPI | No | 433/868/915 | FSK | -105 | 2.2~3.8 | 0.3 uA | 11 mA | 22 mA @ 7dBm | 115.2(digital mode) | - | 300 | 17*16.5*2 | |
| Customizable | 256(Simulation Mode) | |||||||||||||||
| RF4431 | Module only | SPI | No | 433/868/915 | FSK | 20 mw | -118 | 1.8~3.6 | < 1 uA | 18.5 mA | 35 mA @ 13dBm | 0.123~256 | - | 600 | 17*16.5*2 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4432 | Module only | SPI | No | 433/868/915 | FSK | 100 mw | -121 | 1.8~3.6 | < 1 uA | 18.5 mA | 85 mA @ 20dBm | 0.123~256 | - | 1400 | 17*16.5*2 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4432PRO | With shielding case | SPI | No | 433/868/915 | FSK | 100 mw | -121 | 1.8~3.6 | < 1 uA | 18.5 mA | 85 mA @ 20dBm | 0.123~256 | - | 1400 | 17.3*17*2.6 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4432F27 | With shielding case | SPI | No | 433/868/915 | FSK | 500 mw | -122 | 3.3~7.0 | < 3 uA | 21 mA | 350 mA @ 27dBm | 0.123~256 | - | 2500 | 38*20*4 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4463PRO | With shielding case | SPI | No | 433/868/915 | (4)FSK | 100 mw | -126 | 1.8~3.6 | < 0.1uA | 10.7 mA | 85 mA @ 20dBm | 0.123~1000 | - | 1800 | 17.3*17*2.6 | |
| Customizable | (4)GFSK | 13.5 mA | ||||||||||||||
| OOK | ||||||||||||||||
| ASK | ||||||||||||||||
| RF4463F30 | With shielding case | SPI | No | 433/868/915 | (4)FSK | 1 W | -126 | 3.3~7.0 | < 2 uA | 10.7 mA | 550 mA @ 30dBm | 0.123~1000 | - | 3500 | 38*20*4 | |
| Customizable | (4)GFSK | 13.5 mA | ||||||||||||||
| OOK | ||||||||||||||||
| ASK | ||||||||||||||||
| RF1212 | With shielding case | SPI | No | 433/868/915 | FSK | 12.5 dBm | -110 | 2.1~3.6 | < 1 uA | 3 mA | 25 mA @ 10dBm | 0.78~150(@FSK) | - | 600 | 17.3*17*2.6 | |
| Customizable | OOK | |||||||||||||||
| RF2401 | Module only | SPI | No | 433/868/915 | FSK | -20~+10 dBm | -115 | 1.9~3.6 | < 0.1 uA | 7 mA | 36 mA | 1.5~72 | - | 400 | 13.56*13.8*2 | |
| Customizable |
| ASK | STX881 | Module only | —— | No | 315/433 | ASK | 7.5dBm @ 3V | - | 1.2~13 | < 0.01 uA | — | 20 mA @ 5V,13dBm | 0.1~9.6 | - | According to the power support and the attached decode | 12*15.2*5.2 |
| Transmitter module | 13dBm @ 5V | |||||||||||||||
| 20dBm @ 12V | ||||||||||||||||
| STX882 | Module only | —— | No | 315/433 | ASK | 13dBm @ 2.4V | - | 1.2~6 | < 0.01 uA | — | 34 mA @ 3.3V,15dBm | 0.1~9.6 | - | 12*15.2*5.2 | ||
| 15dBm @ 3V | ||||||||||||||||
| 20dBm @ 5V | ||||||||||||||||
| STX887 | Module only | —— | No | 315/433 | ASK | 10 dBm @ 3V | - | 1.8~5.5 | < 1 uA | — | 24.5mA @ 3V | 0.1~9.6 | - | 12*15.2*5.2 | ||
| 17 dBm @ 5V | ||||||||||||||||
| STX888 | Module only | —— | No | 315/433 | ASK | 10 dBm @ 3V | - | 1.8~5.5 | < 1 uA | — | 24.5mA @ 3V | 0.1~9.6 | - | 12*15.2*5.2 | ||
| 17 dBm @ 5V | ||||||||||||||||
| Ask Receiver module | SRX882 | Module only | —— | No | 315/433 | ASK | - | -110 | 2.4~5.5 | < 2 uA | 2.7mA @ 315MHz | — | 0.1~9.6 | - | 35*10.4*5 | |
| OOK | 2.9mA @ 433MHz | |||||||||||||||
| SRX887 | Module only | —— | No | 315/433 | ASK | - | -110 | 3.0~5.5 | < 1 uA | 2.9mA @ 315MHz | — | 0.1~9.6 | - | 33.1*9.1*5 | ||
| OOK | 4.0mA @ 433MHz |
| 3D | Name | Seal | Interface | With MCU | Power | Sleep consumption | Current | Resolution | Pedometer error | Applicaton | Volume | |||||
| pedometer module | (V) | |||||||||||||||
| STP100 | IC set | Impulse output | No | 2.3~3.6 | <5 uA | 30uA @ 3V | 1 | ±3% steps @ uniform motion | None-wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP101 | IC set | Impulse output | No | 2.3~3.6 | <5 uA | 30uA @ 3V | 1 | ±3% steps @ uniform motion | Wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP200 | IC set | IIC | No | 2.3~3.6 | <5 uA | 60uA @ 3V | 1 | ±3% steps @ uniform motion | None-wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP201 | IC set | IIC | No | 2.3~3.6 | <5 uA | 60uA @ 3V | 1 | ±3% steps @ uniform motion | Wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP156 | module only | Impulse output | No | 2.3~3.6 | <3 uA | 30uA @ 3V | 1 | ±5% steps @ uniform motion | 3D pedometer product | 11.26*11.4*1.8 | ||||||
| Type | Spring antennas | |||||||
| Frequency band | 433 MHz | 490 MHz | 868 MHz | 915 MHz | ||||
| Antenna name | SW433-TH32DN | SW433-TH10 | SW433-TH22 | SW433-TH32 | SW490-TH10 | SW490-TH14 | SW868-TH13 | SW915-TH12 |
| Material | nickel-plated stainless | Copper | Golden-plated stainless | Copper | Copper | Copper | Copper | Copper |
| VSWR | <=1.5 | <=1.8 | <=1.5 | <=1.5 | <=1.8 | <=1.8 | <=1.5 | <=1.5 |
| Gain(dBi) | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 |
| Height(mm) | 32 | 10 | 22 | 32 | 10 | 14 | 13 | 12 |
| Type | Rubber antennas | |||||||
| Frequency band | 433 MHz | |||||||
| Antenna name | SW433-ZT28 | SW433-ZT100 | SW433-WT36 | SW433-WT100 | SW433-ZD115 | SW433-ZB165 | SW433-ZT100DN | SW433-WT100DN |
| Material | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Nickel-plated | Nickel-plated |
| VSWR | <=2.0 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| Gain(dBi) | 2.15 | 3 | 2.5 | 3 | 2.15 | 3 | 3 | 3 |
| Interface form | SMA(Build-in) | SMA(Build-in) | SMA-JW | SMA-JW | SMA | SMA | SMA | SMA-JW |
| Height(mm) | 28 | 100 | 45 | 100 | 115 | 160 | 100 | 100 |
| Type | Rubber antennas | |||||||
| Frequency band | 409 MHz | 450 MHz | 470 MHz | 490 MHz | 868 MHz | 915 MHz | ||
| Antenna name | SW409-ZT100 | SW450-ZT100DN | SW450-WT100DN | SW470-ZT100 | SW490-ZT100 | SW868-ZT100 | SW868-WT100 | SW915-ZT100 |
| Material | Golden-plated | Nickel-plated | Nickel-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated |
| VSWR | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| Gain(dBi) | 3 | 3 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Interface form | SMA | SMA | SMA-JW | SMA | SMA | SMA | SMA-JW | SMA |
| Height(mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Type | Rubber antenna | ||||
| Frequency band | 915 MHz | 880~960NHz | 2400 MHz | ||
| Antenna name | SW915-WT100 | SWGPRS-ZT186 | SW2400-ZT48 | SW2400-WT106 | SW2400-ZD115 |
| Material | Golden-plated | Golden-plated | |||
| VSWR | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| Gain(dBi) | 3 | 3 | 2.5 | 3 | 3 |
| Interface form | SMA-JW | SMA | SMA/J | SMA/JW | SMA |
| Height(mm) | 100 | 186 | 48 | 106 | 115 |
| Type | Sucker antenna | Yagi antenna | ||||||
| Frequency band | 433 MHz | 490 MHz | 868/915 MHz | 2400 MHz | 433MHz | |||
| Antenna name | SW433-XPXM | SW433-XP-WP | SW433-XP-MAX | SW490-XP1M | SW868-XP1M | SW2400-XP1M | SW433-BM-11DB | |
| SW915-XP1M | ||||||||
| VSWR | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | |
| Gain(dBi) | 3 | 2.15 | 5.5 | 3 | 3 | 7 | 11 | |
| Interface form | SMA-J | MCX/J | SMA-JW | SMA-J | SMA-J | SMA-J or customize | (TNC Male)/SMA/BNC | |
| Height(mm) | 126 | 111 | 1000 | 126 | 126 | 220 | 86 | |
| Lead wire(M) | 1~6m to choose | 3m(customizable) | 3m/5m | 1m(customizable) | 1m(customizable) | 1m(customizable) | ||
