Home > Products > Antenna > 2015 SW315-TH23 Gold Plated Spring Antenna 2.15dBi High Gain 315MHz Antenna
2015 SW315-TH23 Gold Plated Spring Antenna 2.15dBi High Gain 315MHz Antenna
USD $0.2 - $1.5
/ Piece
2 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | NiceRF | Model Number: | SW315-TH23 |
Product Description

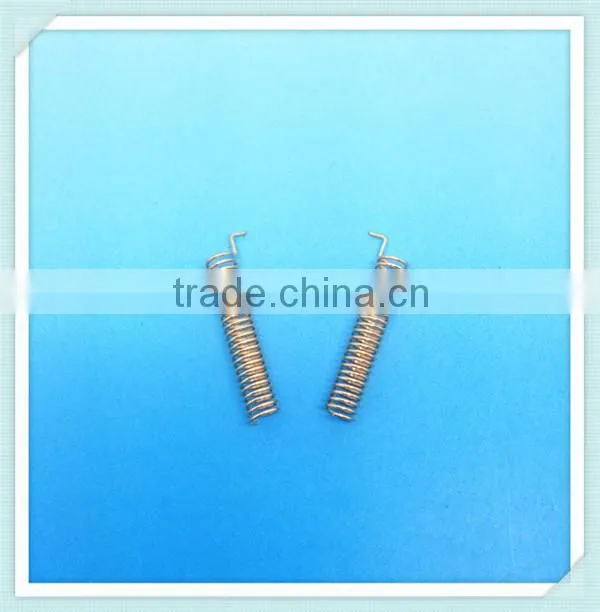

2015 SW315-TH23 Gold Plated Spring Antenna 2.15dBi High Gain 315MHz Antenna
Product Description
SW315 - TH23 is a gold plated spring antenna. It is a dedicated antenna which is designed for a wireless communication system (315MHz).It has good VSWR, small size, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.
Features:
*Frequency range: 315 MHz (+ / -5)
*VSWR: <= 1.5
*Input impedance: 50 Ω
*Maximum power: 10 W
*Gain: 2.15 dBi
*Weight: 1g
*Height: 27 + / -1 mm(37.5T)
*Antenna Color: golden
*Interface Type:welded directly
Size:
VSWR Chart

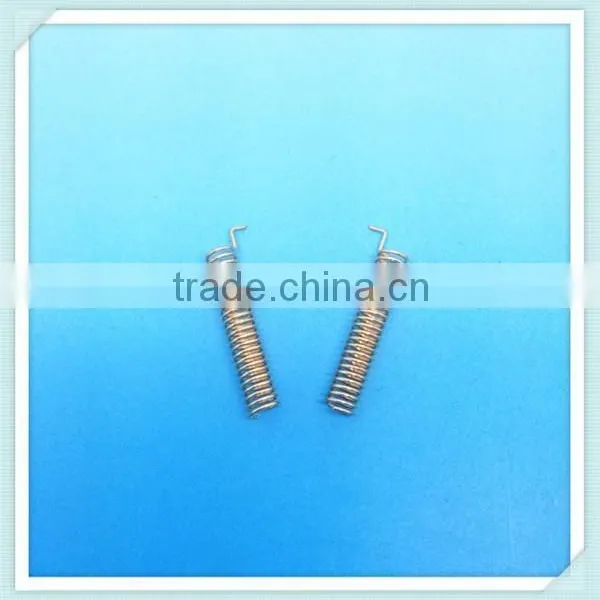

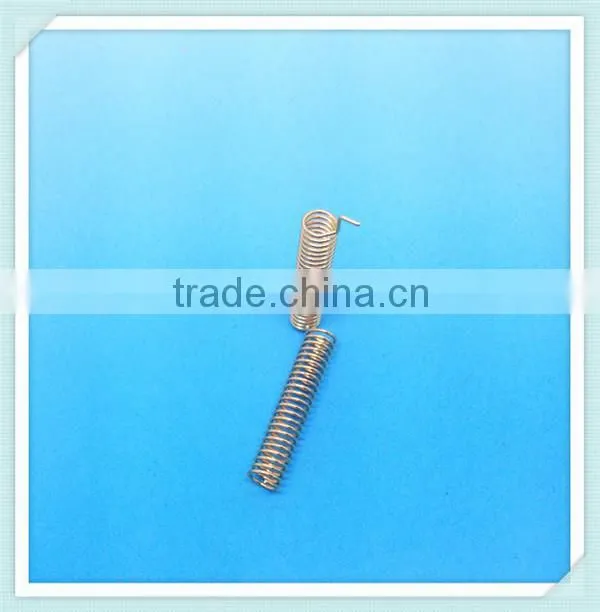

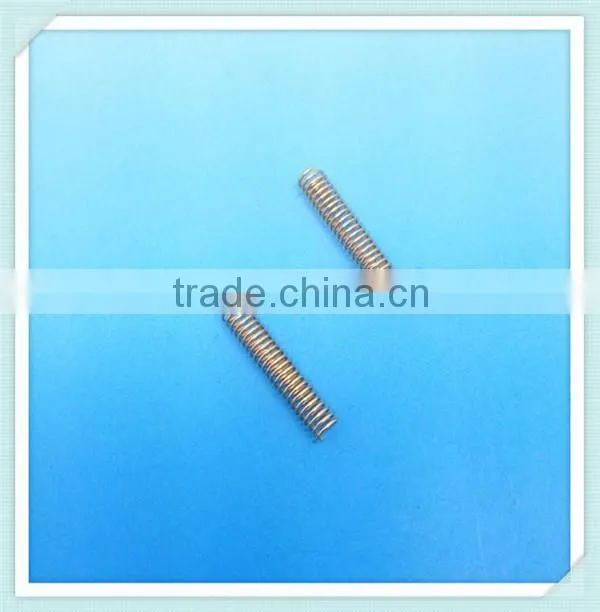

Product show:
Related Products
| Product type | Product | Seal | Interface | With MCU | Frequency | Modulation | Power | Sensitivity | Voltage | Sleep current | RX | TX | Speed | Channels | Visible Distance in open area (M) | Volume(mm) |
| (MHz) | (dBm) | (V) | (kpbs) | |||||||||||||
| wireless data transceiver | SV610 | Module only | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 2.8~6.0 | < 5 uA | 25 mA | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 26.8*16*2.4 |
| SNR610 | -1~+20dBm | |||||||||||||||
| SV611 | With shielding case | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 43.25*26.45*9.4 | |
| SNR611 | Serial port 232 | -1~+20dBm | 4.5~5.5V(232) | 32.7 Ma @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| wireless network transceiver | SV612 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 62.5*43.2*14.3 |
| SNR612 | Serial port 232 | -1~+20dBm | 4.5~5.5V(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| SV613 | Aluminium | USB serial port | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 4.5~5.5 | < 5 uA | 26 mA | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 62.5*43.2*14.3 | |
| SNR613 | -1~+20dBm | |||||||||||||||
| SV614 | Aluminium | RS232 serial | Yes | 433/470/ 868/915 | GFSK | 100 mw | -121 | 4.5~5.5 | < 5 uA | 33 mA | 95mA @ 20dBm | 1.2~38.4 | 40 | 1400 | 62.5*43.2*14.3 | |
| SNR614 | -1~+20dBm | |||||||||||||||
| SV650 | With shielding case | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 3.3~7.5 | < 5 uA | 25mA @ TTL | 350 mA @ 27dBm | 1.2~38.4 | 40 | 1400 | 38*20*4 | |
| SNR650 | Serial port 485 | 20~27dBm | 34 mA @ 485 | |||||||||||||
| SV651 | With shielding case | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 50.4*39*7.6 | |
| SNR651 | Serial port 232 | 20~27dBm | 4.5~5.5V(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| SV652 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 2.8~6.0(TTL) | < 5 uA | 25 mA @ TTL | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 62.5*43.2*14.3 | |
| SNR652 | Serial port 232 | 20~27dBm | 4.5~5.5V(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5V(485) | 34 mA @ 485 | ||||||||||||||
| SV653 | Aluminium | USB serial port | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 4.5~5.5 | < 5 uA | 26 mA | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 62.5*43.2*14.3 | |
| SNR653 | 20~27dBm | |||||||||||||||
| SV654 | Aluminium | RS232 serial port | Yes | 433/470/ 868/915 | GFSK | 500 mw | -121 | 4.5~5.5 | < 5 uA | 33 mA | 350 mA @ 27dBm | 1.2~38.4 | 40 | 3000 | 62.5*43.2*14.3 | |
| SNR654 | 20~27dBm | |||||||||||||||
| SV6202 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 2 W | -121 | 4.5~6.5(TTL) | < 5 uA | 25 mA @ TTL | 900 mA @ 33dBm | 1.2~38.4 | 40 | 5000 | 62.5*43.2*14.3 | |
| SNR6202 | Serial port 232 | 13~33dBm | 4.5~5.5(232) | 32.7 mA @ 232 | ||||||||||||
| Serial port 485 | 4.5~5.5(485) | 34 mA @ 485 | ||||||||||||||
| SV6300 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 3 W | -121 | 9~18 | < 5 uA | < 30 mA | < 0.6 A | 1.2~38.4 | 40 | 6000 | 93*84*26 | |
| SNR6300 | Serial port 232 | 15~35dBm | ||||||||||||||
| Serial port 485 | ||||||||||||||||
| SV6500 | Aluminium | Serial port TTL | Yes | 433/470/ 868/915 | GFSK | 5 W | -121 | 9~18 | < 5 uA | < 30 mA | < 1.8 A | 1.2~38.4 | 40 | 8000 | 93*84*26 | |
| SNR6500 | Serial port 232 | 30~37dBm | ||||||||||||||
| Serial port 485 |
| Front-end transceiver | RF4421 | Module only | SPI | No | 433/868/915 | FSK | -105 | 2.2~3.8 | 0.3 uA | 11 mA | 22 mA @ 7dBm | 115.2(digital mode) | - | 300 | 17*16.5*2 | |
| Customizable | 256(Simulation Mode) | |||||||||||||||
| RF4431 | Module only | SPI | No | 433/868/915 | FSK | 20 mw | -118 | 1.8~3.6 | < 1 uA | 18.5 mA | 35 mA @ 13dBm | 0.123~256 | - | 600 | 17*16.5*2 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4432 | Module only | SPI | No | 433/868/915 | FSK | 100 mw | -121 | 1.8~3.6 | < 1 uA | 18.5 mA | 85 mA @ 20dBm | 0.123~256 | - | 1400 | 17*16.5*2 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4432PRO | With shielding case | SPI | No | 433/868/915 | FSK | 100 mw | -121 | 1.8~3.6 | < 1 uA | 18.5 mA | 85 mA @ 20dBm | 0.123~256 | - | 1400 | 17.3*17*2.6 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4432F27 | With shielding case | SPI | No | 433/868/915 | FSK | 500 mw | -122 | 3.3~7.0 | < 3 uA | 21 mA | 350 mA @ 27dBm | 0.123~256 | - | 2500 | 38*20*4 | |
| Customizable | GFSK | |||||||||||||||
| OOK | ||||||||||||||||
| RF4463PRO | With shielding case | SPI | No | 433/868/915 | (4)FSK | 100 mw | -126 | 1.8~3.6 | < 0.1uA | 10.7 mA | 85 mA @ 20dBm | 0.123~1000 | - | 1800 | 17.3*17*2.6 | |
| Customizable | (4)GFSK | 13.5 mA | ||||||||||||||
| OOK | ||||||||||||||||
| ASK | ||||||||||||||||
| RF4463F30 | With shielding case | SPI | No | 433/868/915 | (4)FSK | 1 W | -126 | 3.3~7.0 | < 2 uA | 10.7 mA | 550 mA @ 30dBm | 0.123~1000 | - | 3500 | 38*20*4 | |
| Customizable | (4)GFSK | 13.5 mA | ||||||||||||||
| OOK | ||||||||||||||||
| ASK | ||||||||||||||||
| RF1212 | With shielding case | SPI | No | 433/868/915 | FSK | 12.5 dBm | -110 | 2.1~3.6 | < 1 uA | 3 mA | 25 mA @ 10dBm | 0.78~150(@FSK) | - | 600 | 17.3*17*2.6 | |
| Customizable | OOK | |||||||||||||||
| RF2401 | Module only | SPI | No | 433/868/915 | FSK | -20~+10 dBm | -115 | 1.9~3.6 | < 0.1 uA | 7 mA | 36 mA | 1.5~72 | - | 400 | 13.56*13.8*2 | |
| Customizable |
| ASK | STX881 | Module only | —— | No | 315/433 | ASK | 7.5dBm @ 3V | - | 1.2~13 | < 0.01 uA | — | 20 mA @ 5V,13dBm | 0.1~9.6 | - | According to the power support and the attached decode | 12*15.2*5.2 |
| Transmitter module | 13dBm @ 5V | |||||||||||||||
| 20dBm @ 12V | ||||||||||||||||
| STX882 | Module only | —— | No | 315/433 | ASK | 13dBm @ 2.4V | - | 1.2~6 | < 0.01 uA | — | 34 mA @ 3.3V,15dBm | 0.1~9.6 | - | 12*15.2*5.2 | ||
| 15dBm @ 3V | ||||||||||||||||
| 20dBm @ 5V | ||||||||||||||||
| STX887 | Module only | —— | No | 315/433 | ASK | 10 dBm @ 3V | - | 1.8~5.5 | < 1 uA | — | 24.5mA @ 3V | 0.1~9.6 | - | 12*15.2*5.2 | ||
| 17 dBm @ 5V | ||||||||||||||||
| STX888 | Module only | —— | No | 315/433 | ASK | 10 dBm @ 3V | - | 1.8~5.5 | < 1 uA | — | 24.5mA @ 3V | 0.1~9.6 | - | 12*15.2*5.2 | ||
| 17 dBm @ 5V | ||||||||||||||||
| Ask Receiver module | SRX882 | Module only | —— | No | 315/433 | ASK | - | -110 | 2.4~5.5 | < 2 uA | 2.7mA @ 315MHz | — | 0.1~9.6 | - | 35*10.4*5 | |
| OOK | 2.9mA @ 433MHz | |||||||||||||||
| SRX887 | Module only | —— | No | 315/433 | ASK | - | -110 | 3.0~5.5 | < 1 uA | 2.9mA @ 315MHz | — | 0.1~9.6 | - | 33.1*9.1*5 | ||
| OOK | 4.0mA @ 433MHz |
| 3D | Name | Seal | Interface | With MCU | Power | Sleep consumption | Current | Resolution | Pedometer error | Applicaton | Volume | |||||
| pedometer module | (V) | |||||||||||||||
| STP100 | IC set | Impulse output | No | 2.3~3.6 | <5 uA | 30uA @ 3V | 1 | ±3% steps @ uniform motion | None-wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP101 | IC set | Impulse output | No | 2.3~3.6 | <5 uA | 30uA @ 3V | 1 | ±3% steps @ uniform motion | Wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP200 | IC set | IIC | No | 2.3~3.6 | <5 uA | 60uA @ 3V | 1 | ±3% steps @ uniform motion | None-wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP201 | IC set | IIC | No | 2.3~3.6 | <5 uA | 60uA @ 3V | 1 | ±3% steps @ uniform motion | Wrist pedometer product | MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm | ||||||
| 3D sensor seal: LGA-12, Size:2*2*1.0mm | ||||||||||||||||
| STP156 | module only | Impulse output | No | 2.3~3.6 | <3 uA | 30uA @ 3V | 1 | ±5% steps @ uniform motion | 3D pedometer product | 11.26*11.4*1.8 | ||||||
| Type | Spring antennas | |||||||
| Frequency band | 433 MHz | 490 MHz | 868 MHz | 915 MHz | ||||
| Antenna name | SW433-TH32DN | SW433-TH10 | SW433-TH22 | SW433-TH32 | SW490-TH10 | SW490-TH14 | SW868-TH13 | SW915-TH12 |
| Material | nickel-plated stainless | Copper | Golden-plated stainless | Copper | Copper | Copper | Copper | Copper |
| VSWR | <=1.5 | <=1.8 | <=1.5 | <=1.5 | <=1.8 | <=1.8 | <=1.5 | <=1.5 |
| Gain(dBi) | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 |
| Height(mm) | 32 | 10 | 22 | 32 | 10 | 14 | 13 | 12 |
| Type | Rubber antennas | |||||||
| Frequency band | 433 MHz | |||||||
| Antenna name | SW433-ZT28 | SW433-ZT100 | SW433-WT36 | SW433-WT100 | SW433-ZD115 | SW433-ZB165 | SW433-ZT100DN | SW433-WT100DN |
| Material | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Nickel-plated | Nickel-plated |
| VSWR | <=2.0 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| Gain(dBi) | 2.15 | 3 | 2.5 | 3 | 2.15 | 3 | 3 | 3 |
| Interface form | SMA(Build-in) | SMA(Build-in) | SMA-JW | SMA-JW | SMA | SMA | SMA | SMA-JW |
| Height(mm) | 28 | 100 | 45 | 100 | 115 | 160 | 100 | 100 |
| Type | Rubber antennas | |||||||
| Frequency band | 409 MHz | 450 MHz | 470 MHz | 490 MHz | 868 MHz | 915 MHz | ||
| Antenna name | SW409-ZT100 | SW450-ZT100DN | SW450-WT100DN | SW470-ZT100 | SW490-ZT100 | SW868-ZT100 | SW868-WT100 | SW915-ZT100 |
| Material | Golden-plated | Nickel-plated | Nickel-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated | Golden-plated |
| VSWR | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| Gain(dBi) | 3 | 3 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Interface form | SMA | SMA | SMA-JW | SMA | SMA | SMA | SMA-JW | SMA |
| Height(mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Type | Rubber antenna | ||||
| Frequency band | 915 MHz | 880~960NHz | 2400 MHz | ||
| Antenna name | SW915-WT100 | SWGPRS-ZT186 | SW2400-ZT48 | SW2400-WT106 | SW2400-ZD115 |
| Material | Golden-plated | Golden-plated | |||
| VSWR | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 |
| Gain(dBi) | 3 | 3 | 2.5 | 3 | 3 |
| Interface form | SMA-JW | SMA | SMA/J | SMA/JW | SMA |
| Height(mm) | 100 | 186 | 48 | 106 | 115 |
| Type | Sucker antenna | Yagi antenna | ||||||
| Frequency band | 433 MHz | 490 MHz | 868/915 MHz | 2400 MHz | 433MHz | |||
| Antenna name | SW433-XPXM | SW433-XP-WP | SW433-XP-MAX | SW490-XP1M | SW868-XP1M | SW2400-XP1M | SW433-BM-11DB | |
| SW915-XP1M | ||||||||
| VSWR | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | <=1.5 | |
| Gain(dBi) | 3 | 2.15 | 5.5 | 3 | 3 | 7 | 11 | |
| Interface form | SMA-J | MCX/J | SMA-JW | SMA-J | SMA-J | SMA-J or customize | (TNC Male)/SMA/BNC | |
| Height(mm) | 126 | 111 | 1000 | 126 | 126 | 220 | 86 | |
| Lead wire(M) | 1~6m to choose | 3m(customizable) | 3m/5m | 1m(customizable) | 1m(customizable) | 1m(customizable) | ||
Company Information
Packaging & Shipping
Our Services
NiceRF Technology Co.,ltd is the original manufacturer. We promise our every customer the best price and best quality.Welcome to visit our company!
1,Any inquiries will be replied in 12 hours.
2,OEM/ODM service:
* Customer's own logo is available;
* We help customer realize their own thinking, idea, design;
3,After-sale Service:
* All products passed QC before shipping;
* All products will be well-packed before shipping;
* All products have 1 year guarantee. Damaged item is free to change or return in warranty period.
4, Payment terms: T/T,Western Union/paypal/MoneyGram
5, Shipping company: China air post/HK,Singapore post/EMS/DHL/FEDEX.
