Semi automatic die cutting & creasing machine
Applications:
The machine is mainly used to cut & crease corrugated boards in corrugation box producing industry.
Technical specifications:
Item |
BMY1500 |
BMY1450 |
Max.sheet size |
1510X1120mm |
1450X1030mm |
Min.sheet size |
550X550mm |
550X550mm |
Max.Die cutting size |
1500X1100mm |
1415X1015mm |
Substrate: corrugated |
1-9mm |
1-9mm |
Max.die cutting pressure |
350 tons |
350 tons |
Max.speed |
4500s/h |
4500s/h |
Power of main motor |
11kw |
11kw |
Total power |
17kw |
17kw |
Voltage |
380v/50Hz |
380v/50Hz |
Machine weight |
17.8tons |
16.7tons |
Machine size |
6300X4500X2500 (with platform & pre-load) |
6000X4400X2500 (with platform & pre-load) |
Features
¨ High intensity gripper bar with unique gripper opening and closing structure especially good for corrugation and long life.

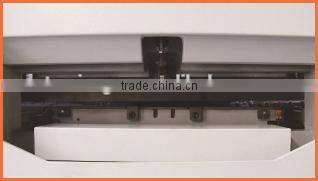

¨ Accurate front lay and side lay for good registration to each sheet

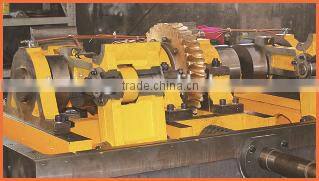

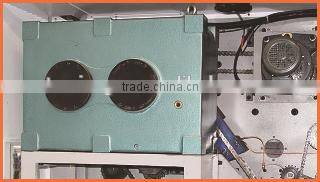

¨ High precision index gear box for smooth gripper bar movement to assure good die cutting accuracy.

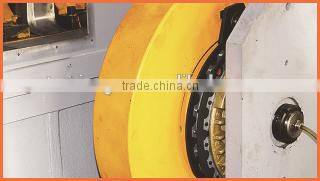

¨ Reliable air clutch and air chase locking system

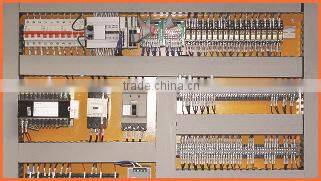

¨ PLC control with man-machine interface by means of touch screen with indication of real running status such as machine speed, production, running time and machine troubles in case it comes
¨ Main motor controlled by frequency converter, which allow stepless speed variation and smooth running
¨ Monitoring display is used to monitor the real status of delivery gives when production, which gives much safer and easier operation
