SHANTUI SL50W Wheel Loader

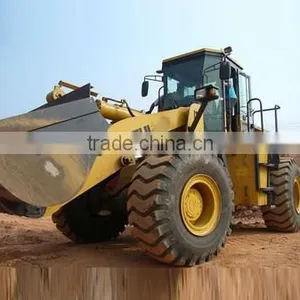

SHANTUI SL50W Wheel Loader thumbnail-1

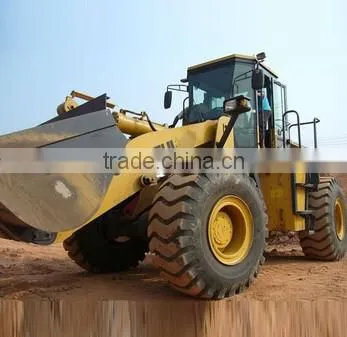

SHANTUI SL50W Wheel Loader photo-1
US$ 50,000 - 100,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SHANTUI SL50W wheel loader
Model Number:
SL50W
Contact Supplier Request Quote Chat Now
Jinan Kunda Automobile Sales Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SHANTUI SL50W wheel loader
Model Number SL50W
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5500*1960*2800
Rated Load 1.6
Certification CE CCC
Warranty 1year
After-sales Service Provided Overseas third-party support available

I. Brief Description

Cummins engine 6CTA8.3-C215

Planetary gear box

Standard cabin with air conditioner

Rated load 5T, bucket volume 3m³

Overall dimension 8036*3072*3430mm

Operating weight 17000kg



II More Information



DIMENSIONS

Wheel base....................................................... 3250mm

Tread.................................................................. 2250mm

Length*Width*Height (mm)..........  8036x3072x3430mm

Width(outside of tire) .......................................... 2840mm



OPERATION SPECIFICATIONS

Rated capacity.............................................................3m³

Rated load............................................................. 5000kg

Operating weight................................................. 17000kg

Max. breakout force..................................................185kN

Max. traction force....................................................162kN

Max. dumping height............................................ 3178mm

Max. dumping reach............................................. 1160mm

Static tipping load...................................................100kN



ENGINE

Model............... Dongfeng  Cummins 6CTA8.3-C215

Type............................... Straight, six cylinder, four stroke, Water cooling, direct injection

Cylinder*bore*stoke............................6 X 121 X 152mm

Rated power............................................................160kw

Max. torque...........................................................908N.m

Rated speed.......................................................2200rpm

Total displacement................................................. 9726 ml

Min. consumption..............................................202g/kw.h



Transmission & Torque converter

Torque converter model ...........................................4WY315

Cooling system................ Air cooled

Shift gears................. Planetary hydraulic gear shift

Travel speed: (Km/h) Forward: 1st............................... 0-13

2nd............................ 0-38

Reverse: .................................. 0-17









AXLES & TYRES

Type ........................................................Four wheel drive

Tyre size ..............................................................23.5-25



BRAKES system

Service brake........ Double-circuit air-oil caliper disc brake

Hand brake...........................................Automatically air-cut brake



STEERING SYSTEM

Type........ Articulated, fold-type frame, full hydraulic steering

Steering angle .................................... 35° (each direction)

Min. turning radius...............6590mm (outside of front tyre)



HYDRAULIC SYSTEM

Steering system

Gear pump..................................................... JHP2100

Steering Cylinder.............................................. 2-φ100mm

Relief valve setting.................................................16MPa

Loader control

Gear pump ...................................................... CBGj3100/1010-XF

Relief valve setting................................................16MPa

Tilt cylinder......................................................... φ200mm

Lifting cylinder................................................. 2- φ180mm

Distribution valve................................................ D32.2

Hydraulic cycle time(rated load in bucket)

Lifting(at full load)..................................................6.2sec.

Dumping.................................................................1.6sec.

Lowering(empty)....................................................2.7sec.



SERVICE REFILL CAPACITIES

Fuel tank.................................................................... 280L

Engine lubricating oil................................................... 28L

Coolant..................................................................... 60kg

Hydraulic system....................................................... 250L

Front axle................................................................... 40L

Rear axle.................................................................... 40L

Torque converter & transmission............................... 45L
