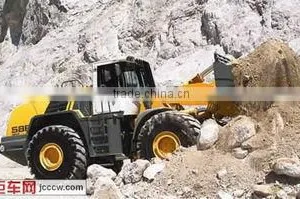

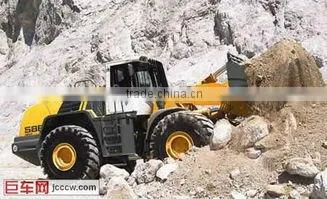

2000kg mini wheel loader for sale

Performance

1

rated loading

2000kg

2

Operation weight

5800kg

3

rated bucket capacity

1.1-1.3m3

4

maximum tractive force

≥54KN

5

maximum breakout force

≥45.4KN

6

maximum grade ability

30

7

maximum dump height

2800mm/3100mm/3500mm/4200mm

8

dump distance

900mm/1000mm/1300

9

overall dimension (L×W×H)

5900×2200×2800mm

10

minimum turning radius

5251mm

Engine

11

model

WeiChai /Yuchai /cummins

12

type

Vertical, in-line, water cooled, 4-stroke diesel engine

13

No. of cylinder-bore/stroke

4—105×125mm

14

rated power

60kw—2200r/min

15

maximum torque

270N.m

16

min fuel-consume ratio

≤243g/kw.h

Transmission system

17

torque converter

YJ 280

18

gearbox mode

Countershaft power-shift

19

gear shift

2 forward shift  2 reverse shift

20

maximum speed

24km/h

Drive axles

21

main reducing spiral

Circular Arc Bevel gear, single stage

22

decelerating mode

Single stage planetary type

23

wheel base (mm)

2400mm

24

Track base(mm)

1640mm

25

Mini base to the ground

310mm

Hydraulic system

26

system working pressure

16MPa

27

boom lifting time

4.8s±0.2s

28

total time

9.2s±0.5s

29

fuel tank capacity

80L

30

function of leveling automatically

yes

Brake system

31

service brake

air assist disc brake on 4 wheels

32

parking brake

flexible shaft operated external drum

Tyre

33

type specification

16/70—20  /  16/70-24

34

front tyre pressure

0.22Mpa

35

rear tyre pressure

0.18Mpa
