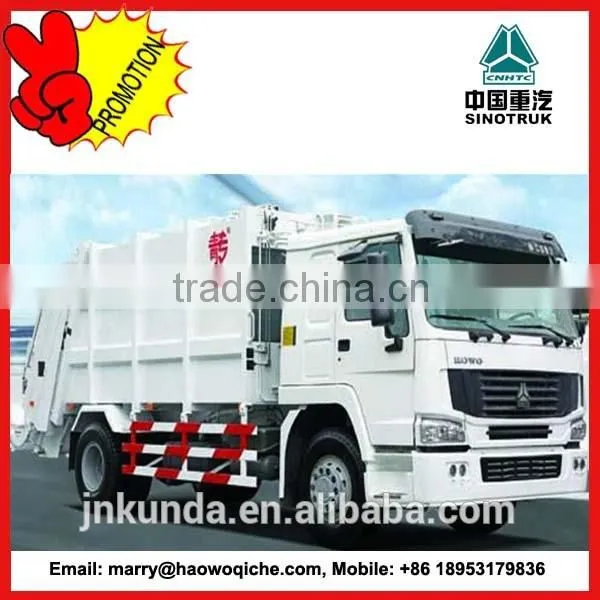

Garbage Refuse Compactor Truck

Garbage Refuse Compactor Truck photo-1
US$ 40,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
6x4
Type:
Compactor
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Drive Wheel 6x4
Type Compactor
Transmission Type Manual
Emission Standard Euro 2
Fuel Type Diesel
Gross Vehicle Weight 16000
Brand Name sinotruck howo compactor truck
Model Number QDZ5257ZYSS

Model



QDZ5257ZYSS

Engine Power, HP

290

Driving Type

6x4

Model

WD615.69

Cylinder Capacity cc / Lt:

9.726L

Torque (Nm/rpm):

1350Nm at 1100-1600 rpm

Kind of Fuel

Diesel

Kind of Clutch

Single-plate dry coil-spring clutch diameter 420mm

Gear Box Model

5S-111GP

Loading Capacity Rear Axle (Kg.)

13000

Loading Capacity Front Axle (Kg.)

6500

Tyres type

12.00-20 tube

Frame details

U-profile parallel ladder frame with section of 300x80x8mm and reinforced sudfram, all cold riveted crossmembers

Brake System Description

Service brake:dual circuit compressed air brake    Parking brake :spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake

Batteries Quantity / Voltage

2x12V

Alternator Model / Voltage

24V

Volume of body

16cbm

Volume of filter

1.6cbm

Height from filler to ground

1200mm

Refuse entrance dimension (width X height)

2100mmx2080mm

Time of one filling circle

<30s

Compacting pressing power

19000kg

Time of discharging cycle

<55s

Filter up and down time

20-30s

Max. hydraulic system pressure

20Mpa

Electric control system volt

24V

Control system

Electric & mechanical control
