Help CenterX2 MINI MILLING MACHINE
Related Products
Specifications
Mini Milling1.operationsFine down feed control for accurate tool height setting
2.Variable speed motor with a 2 speed gearbox
X2 Mini Milling Machine
Feature:
1.With cast iron for vibration free running
2. Milling head and column tilts to 45° Left & Right
3. Variable speed motor with a 2 speed gearbox
4. Coarse down feed for drilling
5. operationsFine down feed control for accurate tool height setting
6. MT3 spindle fitted with a 13mm drill chuck and arbor
Specification:
Specification |
X2 |
Drilling capacity |
13mm |
End mill capacity |
16mm |
Face mill capacity |
30mm |
Longitudinal axis(X) |
220mmm |
Cross axis(Y) |
100mm |
Headstock travel(Z) |
180mm |
Spindle taper |
MT3 or R8 |
Throat |
167mm |
Table effective size |
390x92mm |
T-slot size |
12mm |
Column tilting angle |
45°L, 45°R |
Motor output power |
350W |
Spindle speed low range |
100-1100rpm |
High range |
100-2500rpm |
Overall dimension(LxWxH) |
520x510x760mm |
Packing size(LxWxH) |
540x480x700mm |
Weight (Net/Gross) |
50/68kg |
Standard Accessory
-13mm Drill chuck
-Wrench set
-Oil can

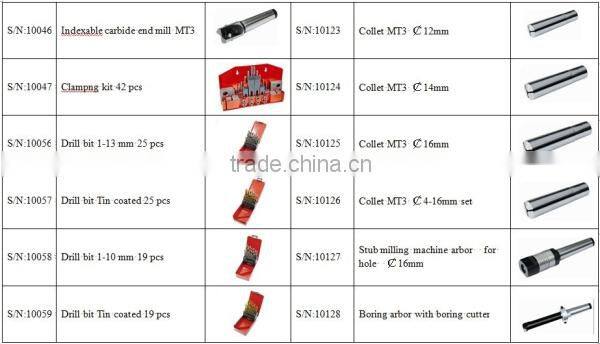

Optional Accessory
