C0 DIY Mini lathe Machine
- 300 Set / Sets per Month
- Shanghai
Product Details
| Condition: | New | Type: | Turning Center | CNC or Not: | Normal |
| Automatic Grade: | Manual | Max. Swing Diameter: | 110mm | Place of Origin: | Shanghai, China |
| Brand Name: | Mini lathe Machine | Model Number: | C0 | Voltage: | 110/220V |
| Power(W): | 150W | Dimension(L*W*H): | 440x270x210mm | Weight: | 14kg |
| Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description

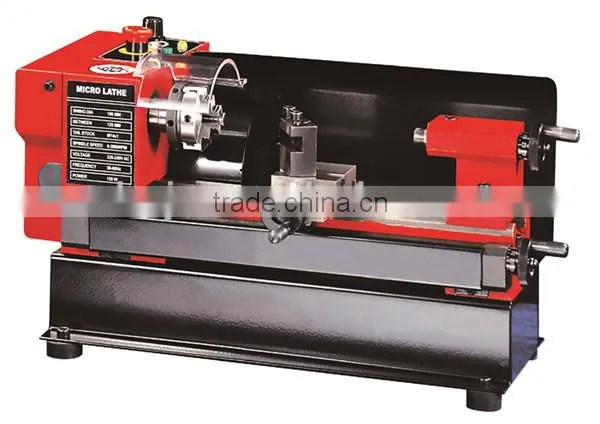

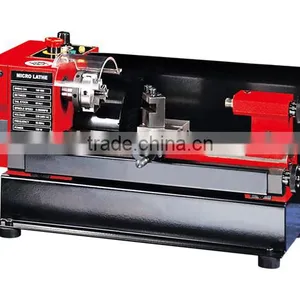

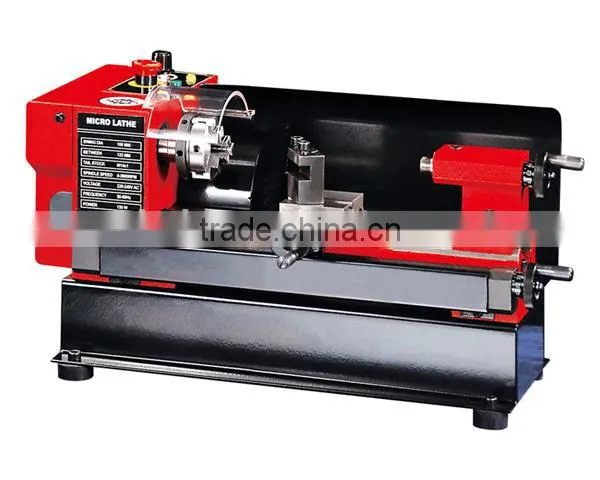

Mini lathe Machine
Feature:
1.Cast iron with ground, hardened slideways
2. Belt driven, with variable speed
3. 50mm self-centring 3 jaw scroll chuck
4. Chuck guard with a safety interlock
5. Supplied with 50mm 3 jaw chuck, wrench set and oil can
Specification:
Swing over bed | 110 mm |
Distance between centers | 125 mm |
Hole through spindle | 10 mm |
Hole through tailstock | 10mm |
Tailstock screw | M14*1 mm |
Cross slide travel | 50 mm |
Motor output power | 150 W |
Spindle speed | 100-3800 rpm+10% |
Overall dimension | 440x270x210 mm |
Packing size (LxWxH) | 510x380x310 mm |
Weight(Net&Gross) | 14/16 kg |
Standard accessory:
-50mm 3-jaw Chuck
-Wrench set
-Oil can
Optional accessory:
