Help CenterC210 Mini Lathe Machine
Related Products
Specifications
Mini Lathe1.Most popular, widely useful hobby lathe
2.Harden and precision ground bedway
3.Top design of quick change feed

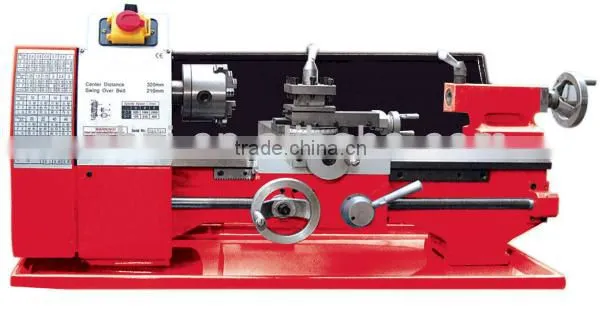

C210 Mini Lathe
Feature:
1.precision ground and supersonic frequency hardened bed ways.
2. High accuracy and well wear-resisting
3. The spindle is supported with precision roller bearing
4. Safety magnetic switch or lock key switch
Specification
Model |
C210 |
Max. swing over bed |
210mm |
Max. swing over cross slide |
110mm |
Distance between centers |
320mm |
Width of bed |
135mm |
Spindle bore |
20mm |
Taper of spindle bore |
M.T.3 |
Range of spindle speeds |
125-2000rpm |
Taper of tailstock quill |
M.T.2 |
Metric threads can be cut |
0.4-3mm |
Inch threads can be cut |
10-44TPI |
Range of longitudinal feeds |
0.1-0.2mm/rev |
Max. travel of saddle |
315mm |
Max. travel of cross slide |
110mm |
Max. travel of top slide |
70mm |
Max. travel of tailstock quill |
75mm |
Motor power |
550w |
Packing size (L x W x H) |
930 x 560 x 545mm |
Net weight |
105kg |
Standard Accessory:
-3 Jaw Chuck
-4 Jaw Chuck
-Face plate
-Steady rest
-Follow rest
-Splash Guard
-Oil tray
-Change gears
-Tool box and tools
-Dead Centers
Optional Accessory:
-Foot Stands
-Leadscrew cover
-Chuck cover
-Live center
