M6(Model 550) MULTI-PURPOSE MACHINE

Name: M6(Model 550) MULTI-PURPOSE MACHINE
Brand: Multi-purpose machine
SKU: 115320959

US$ 1,100 - 1,300 MOQ: 5 Sets

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Multi-purpose machine

Model Number:

M6(Model 550)

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Multi-purpose machine

Model Number M6(Model 550)

Condition New

After-sales Service Provided Overseas service center available

Specifications

Multi-purpose machine
1.For cutting,drilling and milling
2.Variable spindle speed
3.Integral splash guard
4.Metric& imperial

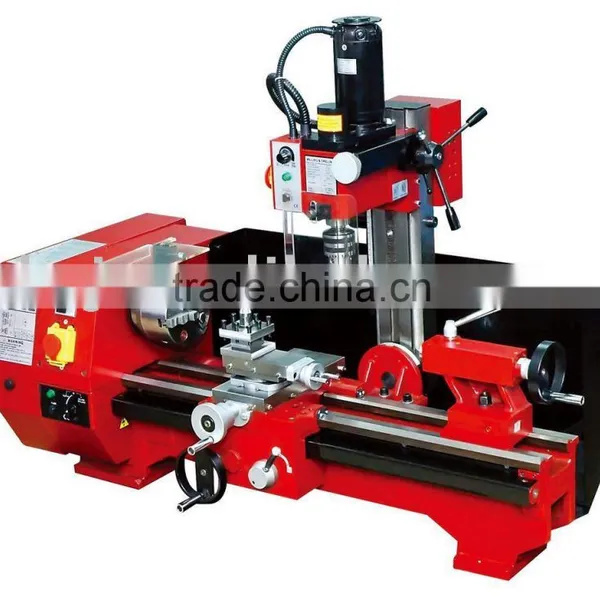

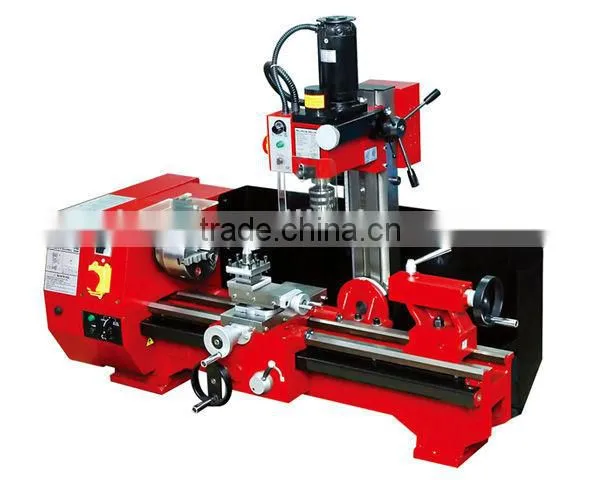

M6 Multi-purpose Machine

Feature for M6 Multi-purpose Machine:

1. Used for cutting, drilling and milling

2. Electronic variable spindle speeds

3. Near silent running, Integral splash guard

4. Metric and imperial thread cutting

5. Full range of accessories available

6. Converts to a multi-purpose machine with the milling attachment

Specification:

Model	M6 (Model 550)
Cutting (Lathe)
Swing over bed	250mm
Distance between centers	550mm
Hole through spindle	20mm
Spindle taper	MT3
Tailstock taper	MT2
Spindle speed (6 steps)	125-2000 rpm
Compound travel	75mm
Cross slide travel	110mm
Motor output power	550W
Threads range Metric version	0.4-3.0mm (12 threads pitches)
Imperial version	10-44 TPI (8 threads pitches)
Weight (Net/Gross)	145/180kg
Packing size (L x W x H)	1200 x 640 x 570 mm

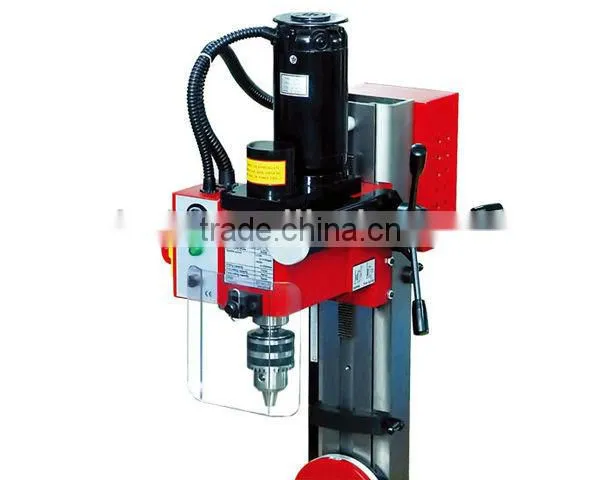

Drilling & Milling
Drilling capacity	13mm
End mill capacity	16mm
Face mill capacity	30mm
Spindle taper	MT3 or R8
Spindle speed Low range	100-1100rpm±10%
High range	100-2500rpm±10%
Headstock travel	180mm
Spindle to worktable	245mm
Head tilt	25°L,45°R
Motor output power	350W
Weight(Net/Gross)	32/47kg
Packing size (LxWxH)	770 x 412 x 550mm
Overall dimension (L x W x H)	1200 x 680 x 860mm
