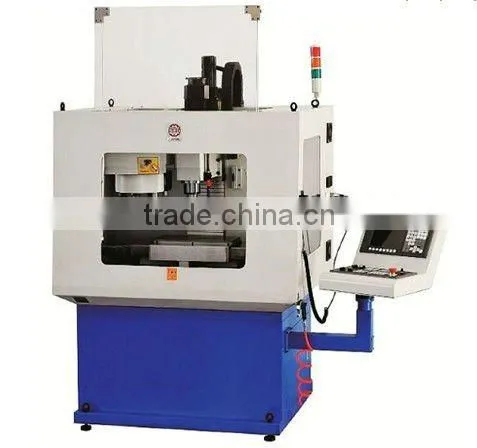

Help CenterH250 CNC Vertical Machining Center
Related Products
Specifications
CNC Machining center1.BT30 Spindle
2. 12 tools ATC
3.SIEG,SIEMENS,GSK CNC system
4.High strength guide way
H250 compact vertical machining center as the new standard, provide a high quantity and quality productions with a very low cost of investment, 20000rpm spindle speed. High torque servo spindle motor, tool change with pneumatic manipular with 8 pcs ATC, raid traverse 20m/min, too change time as short as 1.6 seconds, C-frame structure of cast iron to ensure maximum rigieity, maximum precision milling, with ball rail guide of the NC with the drive to ensure the shortest positioning time. Advanced Shanghai Electric Made Controller, SIEMENS controller or GSK controller, It is a most cost-effective vertical machining center in the market.
CNC vertical machine center H250's FEATURES
Optioal Siemens 802S CNC controller
Optional high speed spindle, import NSK spindle bearings
Rigidity tapping, meet different customer requirement
CNC system based on embedded platform, high reliabilty
8.4'' high-resolution true color display, the appearance of a graphical interface, easy operation
Support U disk, USB, carring boxes, resume processing function of the breakpoint memory
High torque, high speed servo motors
Pneumatic draw bar with 8pcs tooling ATC
Linear guide made in Taiwan
Automatic lubrication system pre-installed
Pre-installed fourth axis fast interface
Pre-loaded hand wheel
CNC vertical machine center H250's MAJOR SPECIFICATIONS
| MODEL | H250 |
| table L*W | 450*180mm |
| X-axis travel | 250mm |
| Y-axis travel | 200mm |
| Z-axis travel | 300mm |
| distance spindle-column | 320mm |
| distance spindle-cross table | 80-380mm |
| spindle taper | BT30 |
| spindle speed | 100-5000rpm |
| spindle motor | 3kw |
| spindle radial beat | 0.02mm |
| position accuracy | 0.01mm |
| repeat position accuracy | ≤0.01mm |
| X.Y.Z rate of feed | 4m/min |
| X.Y.Z move speed | 10m/min,30m/min |
| no of tool position | 8 sets |
| X,Y axis motor | 400w servo motor |
| Z axis motor | 750w servo motor |
| machine size | 2100*1200*2300mm |
| packing size | 2250*1300*2500mm |
| weight | 1300/1440kg |

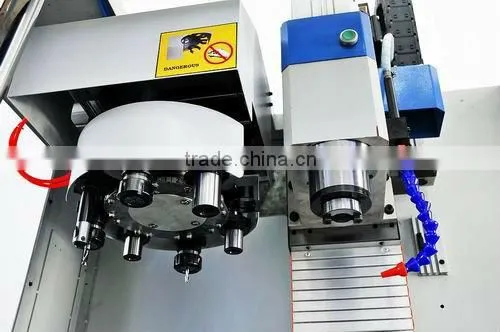

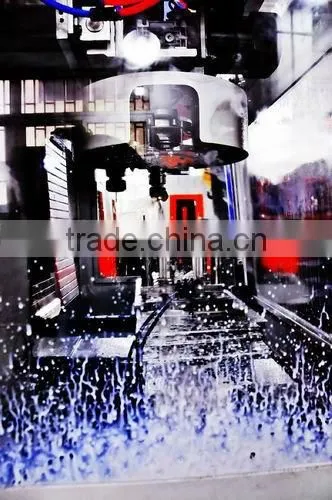

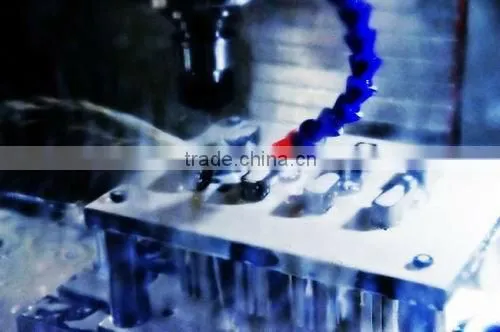

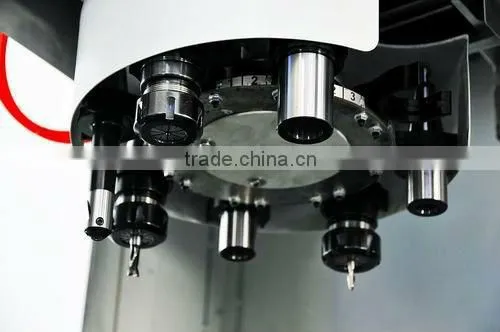

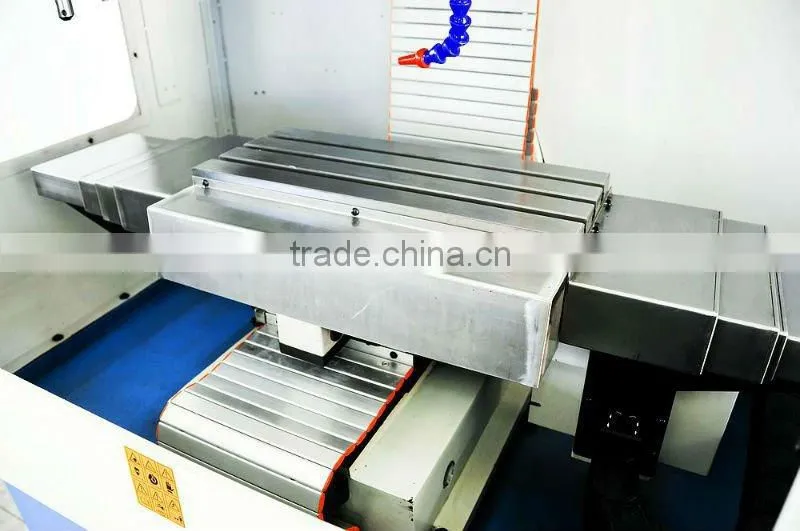

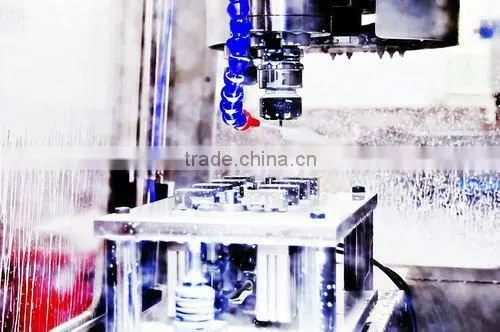

CNC vertical machine center H250's pictures
