PC1-SIEG Baby CNC Lathe
Negotiable
/ Set
1 Set(Min.Order)
- 0 per Month
You May Like
-
Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
-
Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
-
Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
-
Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
-
Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
-
Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
Product Details
| Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
| Automatic Grade: | Automatic | Max. Swing Diameter: | 140mm | Place of Origin: | Shanghai, China |
| Brand Name: | SIEG | Model Number: | PC1-SIEG | Voltage: | 230V/110V |
| Power(W): | 150W | Dimension(L*W*H): | 730x380x350mm | Weight: | 45kg/65kg |
| Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications

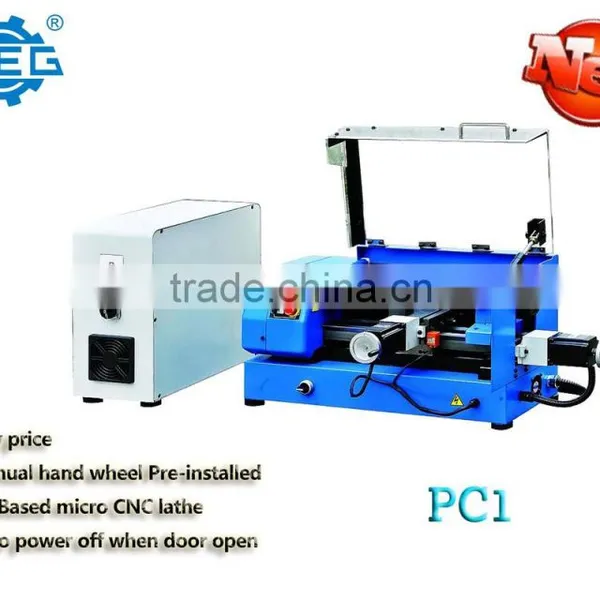

1. Best for education and traing2. Manual hand wheel pre-installed
3. Auto power off when door open
4. 2 in 1 (CNC&Manual)
PC1 Baby CNC Lathe
Technical specification
WORKING AREA | Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm | |
| Center width | 250mm | |
| SPINDLE | Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min | |
| Spindle through-hole | 11mm | |
| Spindle mount | MT2 | |
| Spindle motor power | 150W | |
FEED (stepper) | X travel | 100mm |
| Z travel | 150mm | |
| The max moving speed | 300mm/min | |
| The max feeding speed | 200mm/min | |
| Motor | 1.35N/m | |
| TOOL REST | Tool position | 1 |
| Tool dimension | 8×8mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 12mm | |
| Travel of tailstock | 20mm | |
| ACCURACY | Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm | |
| OTHERS | Power | 220V/110V |
| Weight(NW/GW) | 45/65KG | |
| Dimension | 730×380×350mm |
Successful cases:
PC1-SIEG is one of the most popular products in educational market:
We used to export over 100 each year to International market, including Africa/Indonesia/Myanmar.....
Here is the link from our dealers:
France:http://www.otelo.fr/fr/catalogue/micro-tour-cnc-pc1x250s/sidermeca-1370425262537-skg.html
More details for your reference:

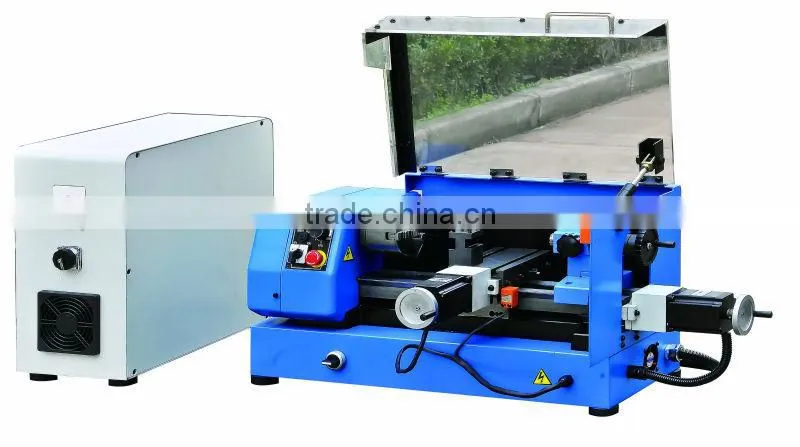

With conrol box (system integrated)

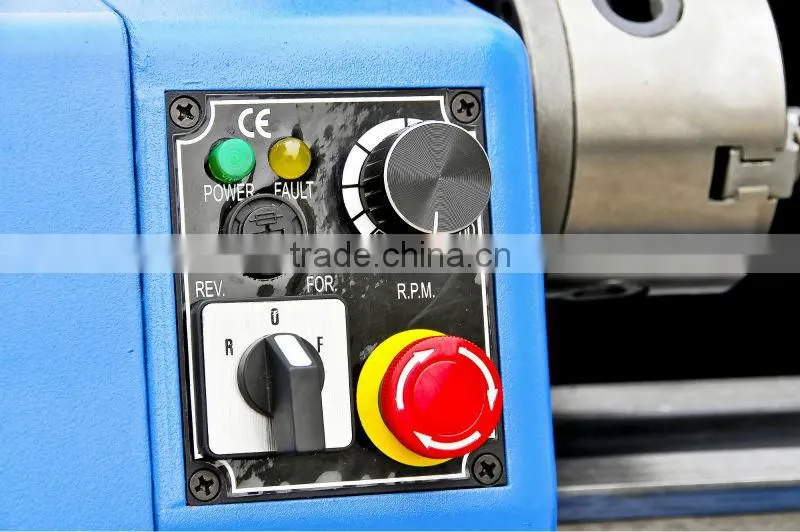

Spindle speed control/ Emergency stop/ Spindle direction/Power on&off

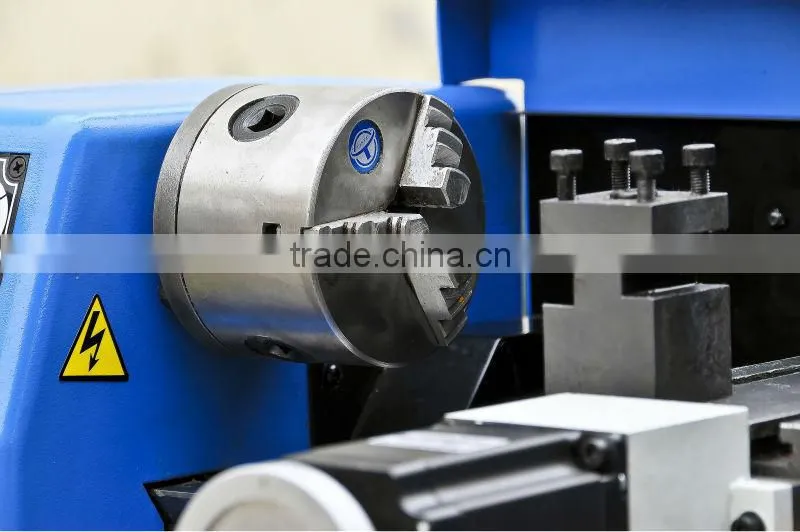

3 draw chuck

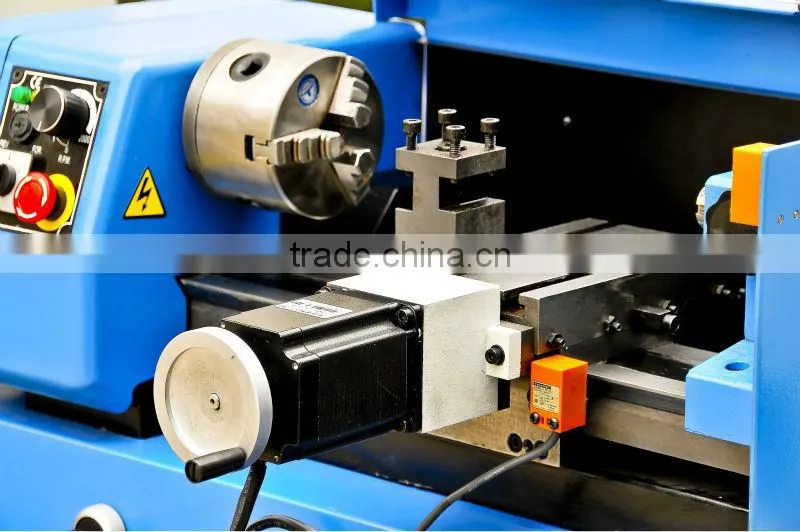

Limit swith

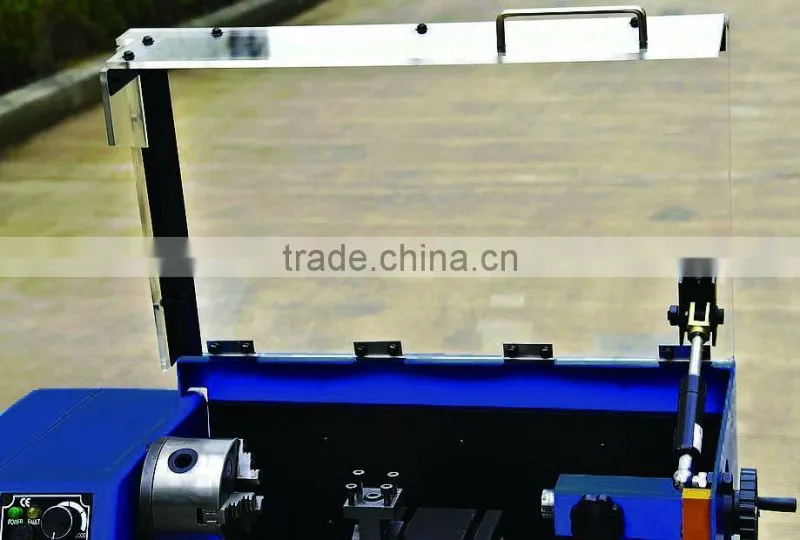

Power off automatically when door open

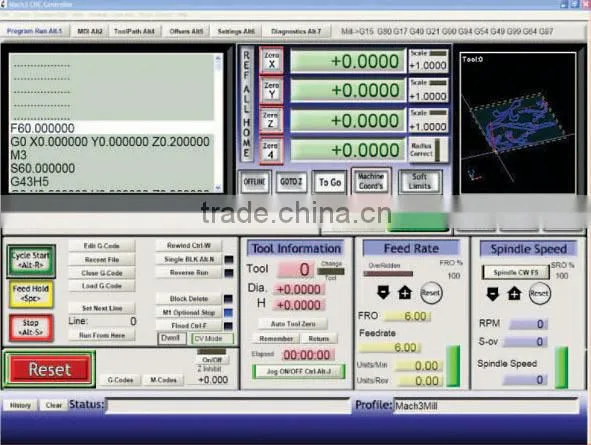

SIEG control,easy to operate

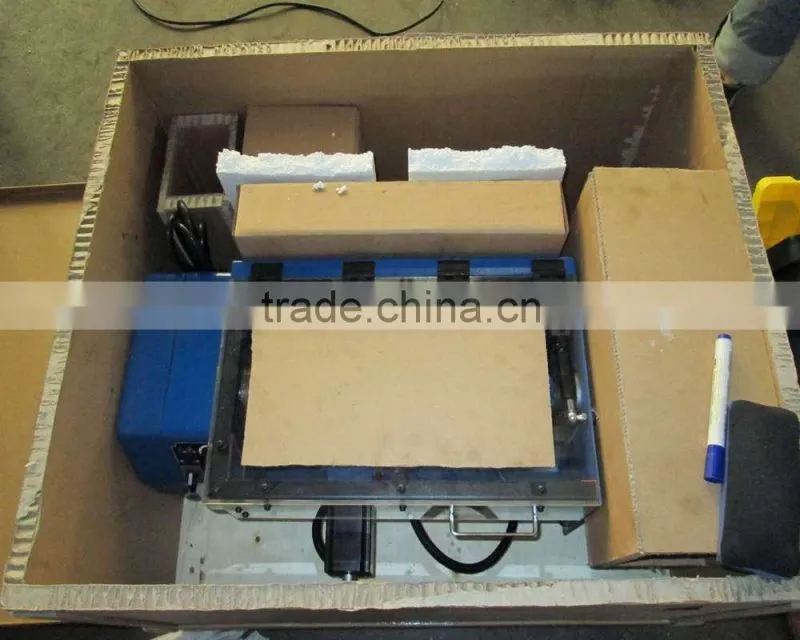

Carton Package
