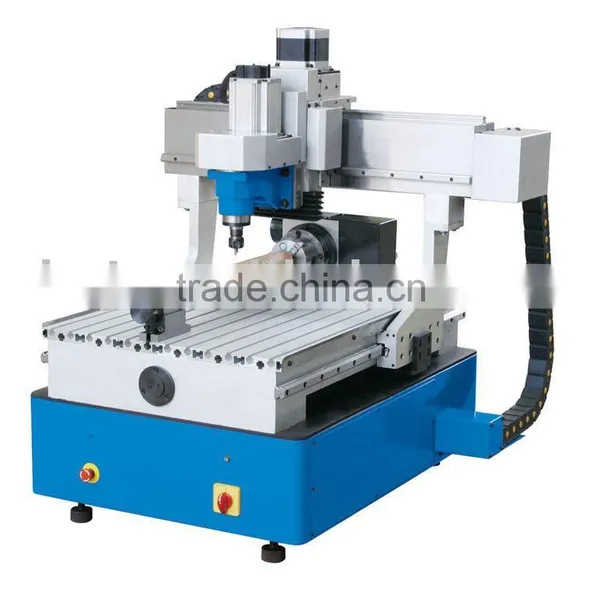

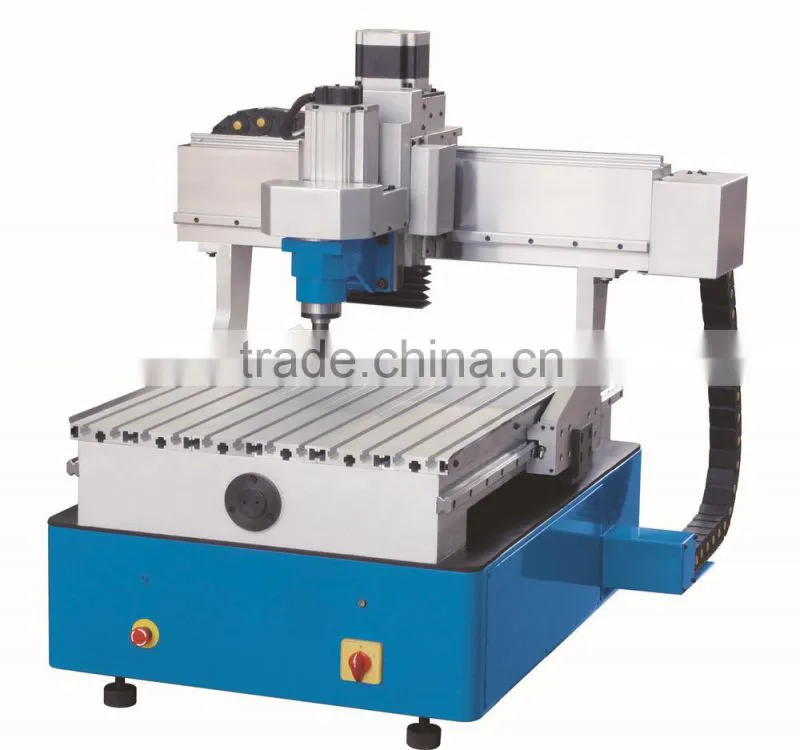

D4070-SIEG ENGRAVING MACHINE
US$ 4,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CNC Engraving machine
Model Number:
D4070
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IKC4-SIEG Slant be Lathe (for Educational and Training Mainly)NegotiableMOQ: 1 Set -
KC4S-SIEG Bench CNC Lathe MachineNegotiableMOQ: 1 Set
-
IKC6-GSK CNC SLANT BED LATHE MACHINENegotiableMOQ: 1 Set
-
IKC6-SIEMENS CNC LATHE MACHINENegotiableMOQ: 1 Set
-
IKC6-SIEG CNC Slant Bed Lathe MachineNegotiableMOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
CNC Engraving machine
Model Number
D4070
Condition
New
After-sales Service Provided
Overseas service center available
Specifications
CNC Engraving Machine1.ER16 spindle
2.500W Brushless Motor
3.With 20,000RPM high speed
4.PC-controlled with SIEG software
CNC Engraving Machine
Feature:

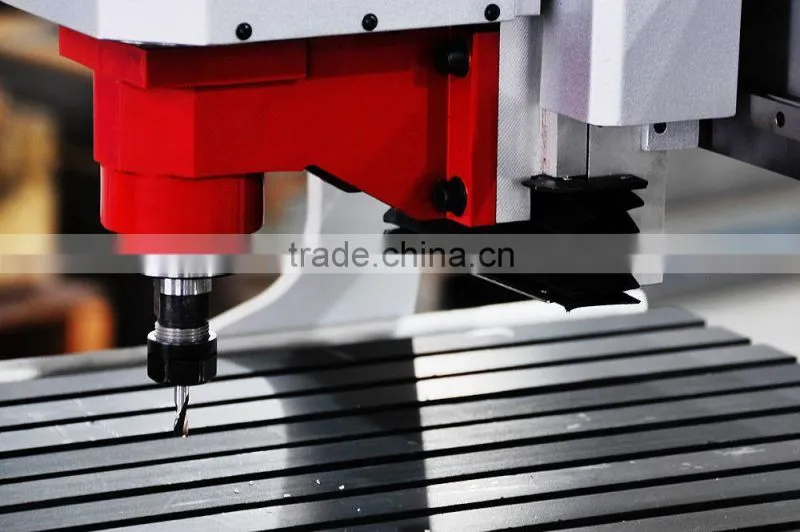

1.ER16 spindle
2.500W Brushless Motor
3.With 20,000RPM high speed
4.PC-controlled with powerful SIEG software

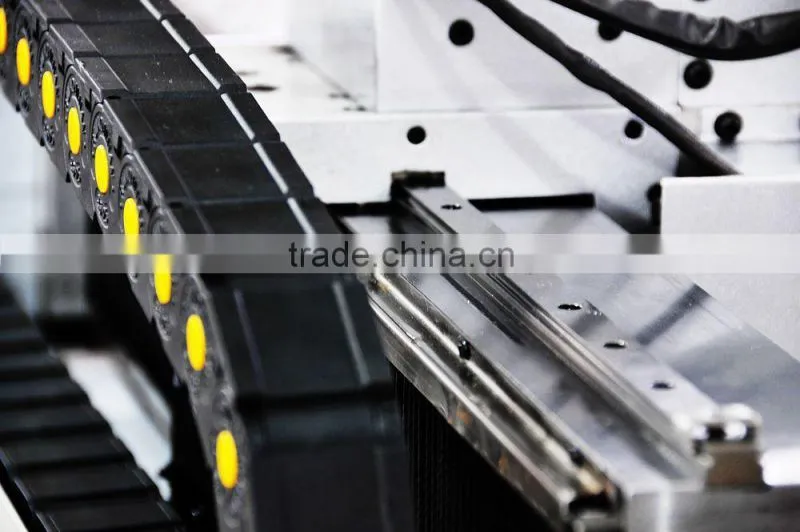

5.Ball screw and Liner Bearings
6.CE safety
Specification:
Model |
D4070 |
Spindle inner size |
ER16 |
Max distance between spindle face to worktable |
95 mm |
Table effective size |
480 x 740 mm |
X axis travel |
360 mm |
Y axis travel |
400 mm |
Z axis travel |
55 mm |
Spindle speed |
300-20000 r/min |
X axis Working speed |
5000 mm/min |
Y axis Working speed |
5000 mm/min |
Z axis Working speed |
1500 5000 mm/min |
Position resolution |
0.015 mm |
Reposition resolution |
0.015 mm |
T-slot size |
8 mm |
Main motor power |
500 W |
Machine overall dimension |
930 x 810 x 800mm |
Packing size (LxWxH) |
1040 x 970 x 980mm |
Weight(Net/Gross) |
120/150kg |

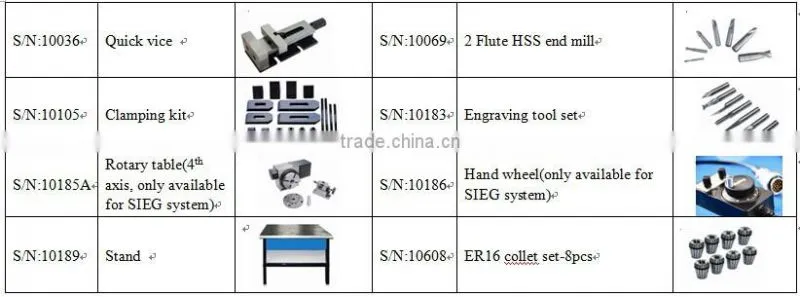

Optional accessories:
