IKC6-GSK CNC SLANT BED LATHE MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
300mm
Place of Origin
Shanghai, China
Brand Name
OEM
Model Number
iKC6-GSK
Voltage
220V/110V
Power(W)
1500W
Dimension(L*W*H)
1400x770x1600mm
Weight
620kg
Certification
CE
After-sales Service Provided
Overseas service center available
Specifications
CNC LATHE MACHINE1.8 station ATC
2.Ultra high precision linear rails
3.One shot oil lubrication
4.Slant bed with cover
iKC6 Pro CNC Slant Bed Lathe
Technical specification
| WORKING AREA | Turning diameter over bed(max) | 300mm |
| Travel across slide | 100mm | |
| Center width | 400mm | |
| SPINDLE | Chuck diameter | 125mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 1500W | |
| FEED | X travel | 240mm |
| Z travel | 320mm | |
| The max moving speed | 5000mm/min | |
| The max feeding speed | 1000mm/min | |
| Motor | 400w | |
| TOOL REST | Tool position | 8 |
| Tool dimension | 10*10mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 17mm | |
| Travel of tailstock | 50mm | |
| ACCURACY | Positioning accuracy | 0.01mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 230/110V |
| Weight(NW/GW) | 620kg | |
| Dimension | 1400×770×1600mm |
Successful cases:
iKC6-GSK is one of the most popular products in educational market:
It's very popular in Chinese educational market/ Europe/Korea...
Here is the link from our dealers:
England (AX): .uk/axminster-cnc-technology-ikc6-lathe
More details for your reference:

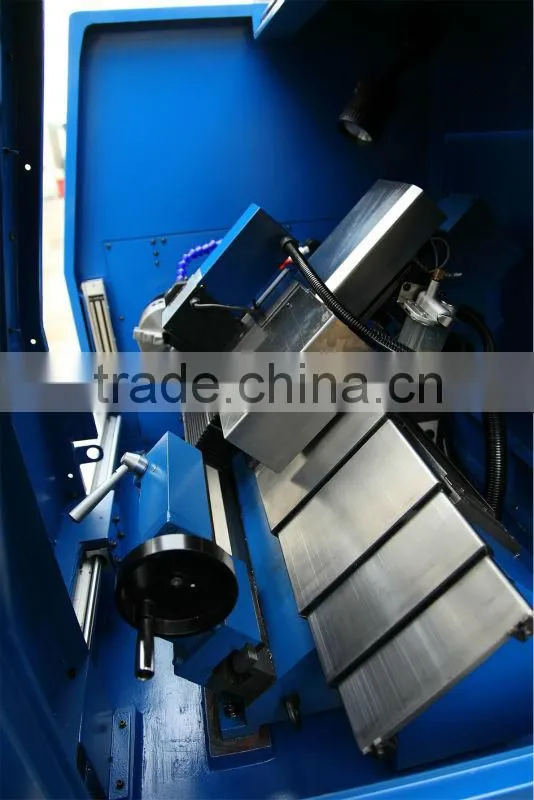

Slant bed with protected cover
Tailstock is optional

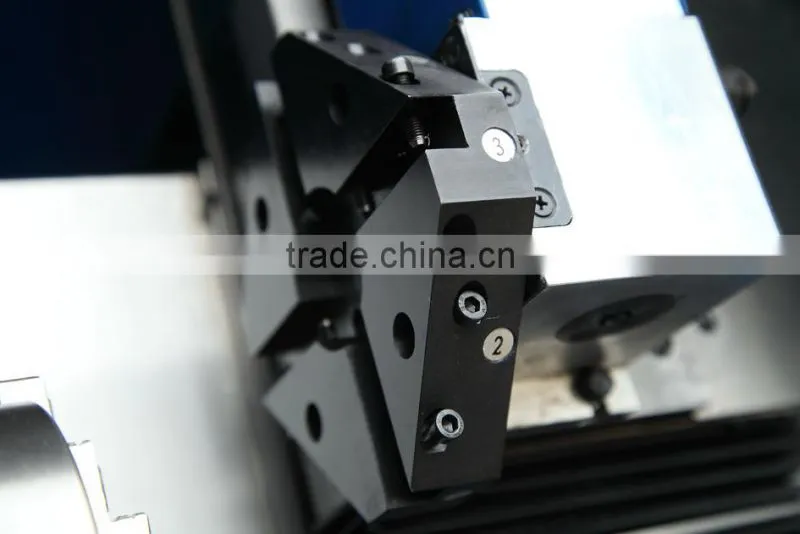

8 tools ATC(4 internal and 4 external)

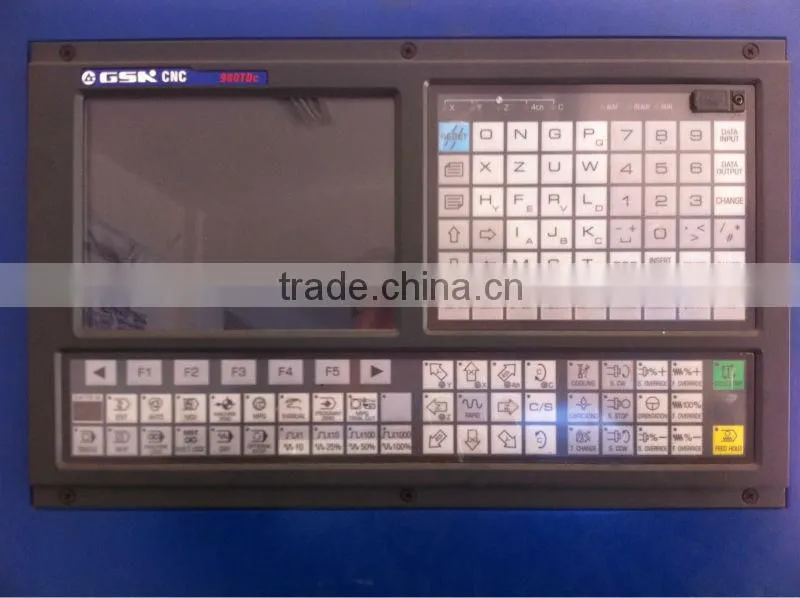

GSK software, very professional and neat
